3 axis brushless Gimbal For GH3 GH4 GH5 Special edition Integrated HDMI To AV+Remote shutter

FPVTD206
Price:
USD
$349.99
Wholesale:
2+
$339.49
    Please select the information you wantX
Quantity:
-
+
(0 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Return Policy
  • Shipping
  • Reviews

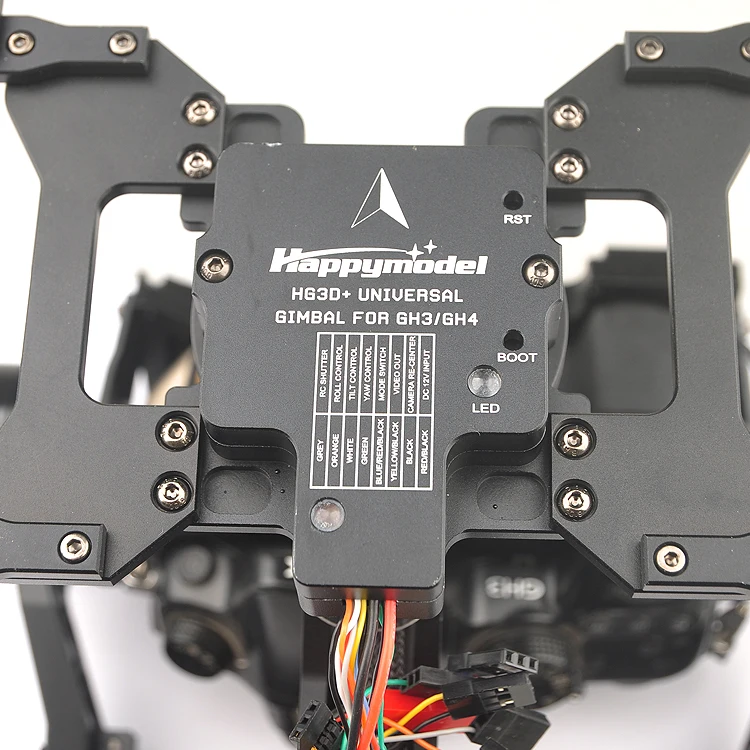

HG3D+ Three-axis brushless Gimbal with GH3 GH4 GH5 Special edition Integrated HDMI to AV Remote shutter

Camera is not included.

Parameter:
1 the weight of about 1058 grams (excluding the camera and battery) packaging weight of about 1450 grams
2 PTZ size about: 216mm * 198mm * 179mm
       Package size: 265mm * 230mm * 210mm
3 the work mode: the default direction to follow, through the remote control to switch to the lock mode, direction + pitch follow mode
4 power supply program: the proposed use of 12V BEC input (shipments have been equipped with BEC)
5 controllable rotation range: pitch control -90 ° to +30 ° steering control -360 ° to + 360 ° 360 degrees no dead ends
6 brushless controller hardware version v1.3 with F103RC program version V082E (can be self-upgrade)



Features:

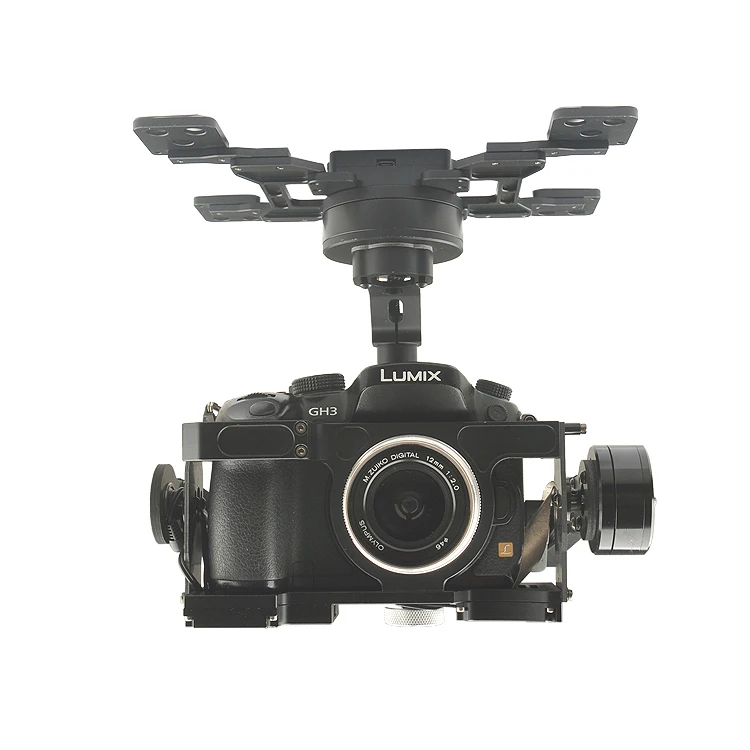

1 for the Panasonic GH3 / GH4 / GH5 tailor-made, the default shipping has been Panasonic GH3 (with Olympus 12mm F2.0 lens) can be used directly to adjust the center of gravity, such as the use of GH4 / GH5 can fine-tune the center of gravity can be.
2 specially customized high efficiency brushless direct drive motor, greater torque, more delicate action, higher response sensitivity, anti-vibration performance even better.

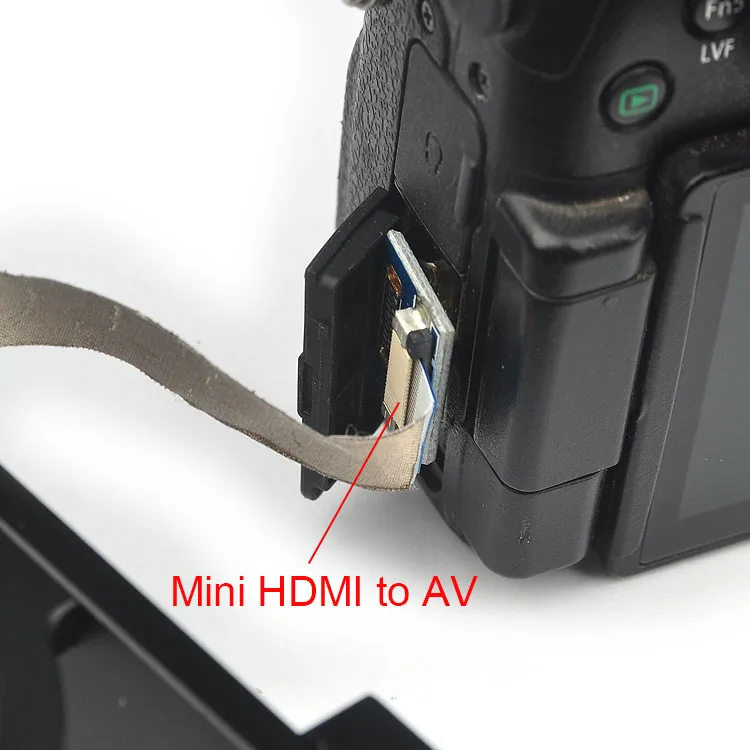

3 integrated HDMI high-definition conversion card (equipped with GH3 / GH4 dedicated interface) can be transmitted at the same time the AV signal to the 5.8G wireless map is a powerful three-axis aerial brushless PTZ

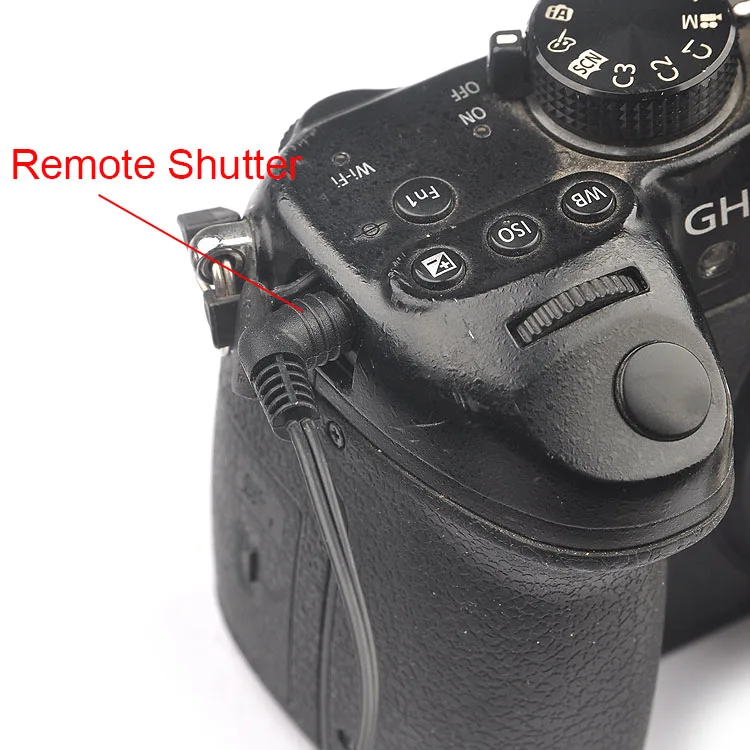

4 integrated GH3 / GH4 camera remote remote control shutter, you can remotely control the camera through the remote control camera, video function
5 the unique PTZ angle set, according to the demand at any time the use of pan / tilt, all-round shooting angle without pressure
6 airborne reliable, shock absorption effect is excellent. The installation is not complicated. Suitable for more than 900 wheelbase in the use of large-scale aerial photography.
7 the direction of the camera head 360 degrees without dead angle control, pitch angle vertical 90 degrees control, roller axis can manually correct the angle difference. With lock mode, direction axis follow mode, direction axis and pitch axis follow mode.


Packing list:

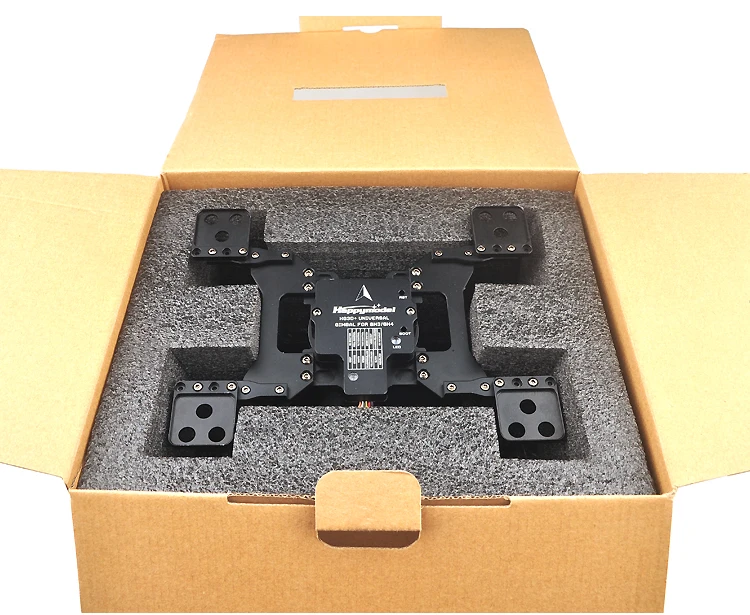

HG3D + Gimbal * 1 set

123456TB1WpYrX22H8KJjy1zkXXXr7pXa_!!0-item_picTB2a4ASXvfM8KJjSZPfXXbklXXa_!!12403465TB2Np6rX4HI8KJjy1zbXXaxdpXa_!!12403465
