Specifications:

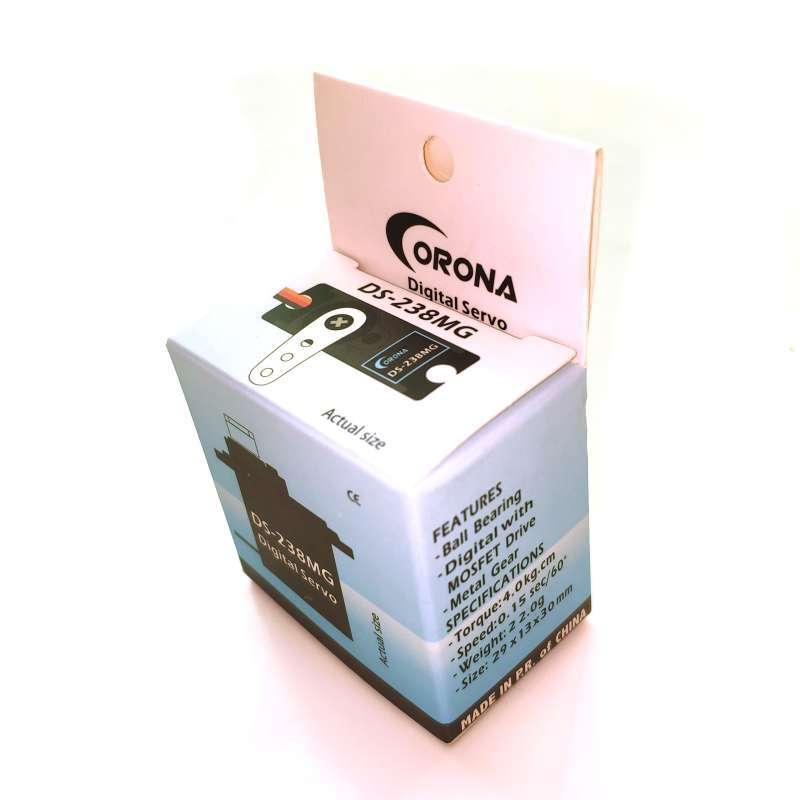

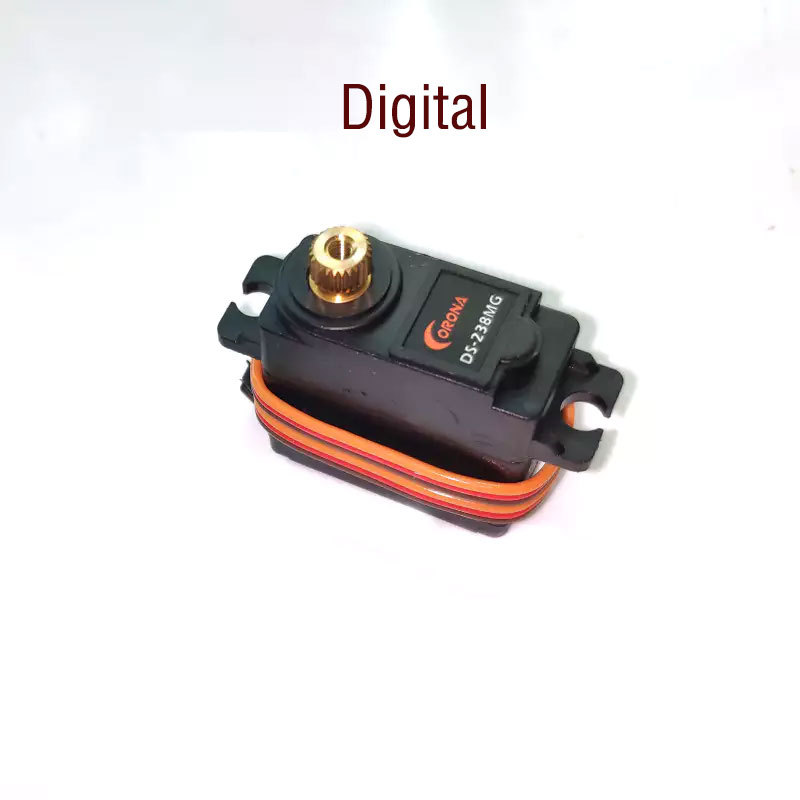

Type: DS238MG
Size: 29x13x30mm(1.14"x0.51"x1.18")
Weight: 22g(0.77OZ)
Operating voltage: 4.8V / 6.0V
Operating current: 300mA / 400mA
Operateing speed: 0.15sec.60º/ 0.14sec.60º
Stall torque: 4kg.cm / 4.6kg.cm
Dead band: ≤3uSec
Operating speed: 40º/one side pulse traveling 400us
Potentiometer: 3 slider/Indirect Drive
Ball bearing: MR106
Gear Material: Metal
Connector wire length: 215mm
Temperature: -20 centigrade to +60 centigrade

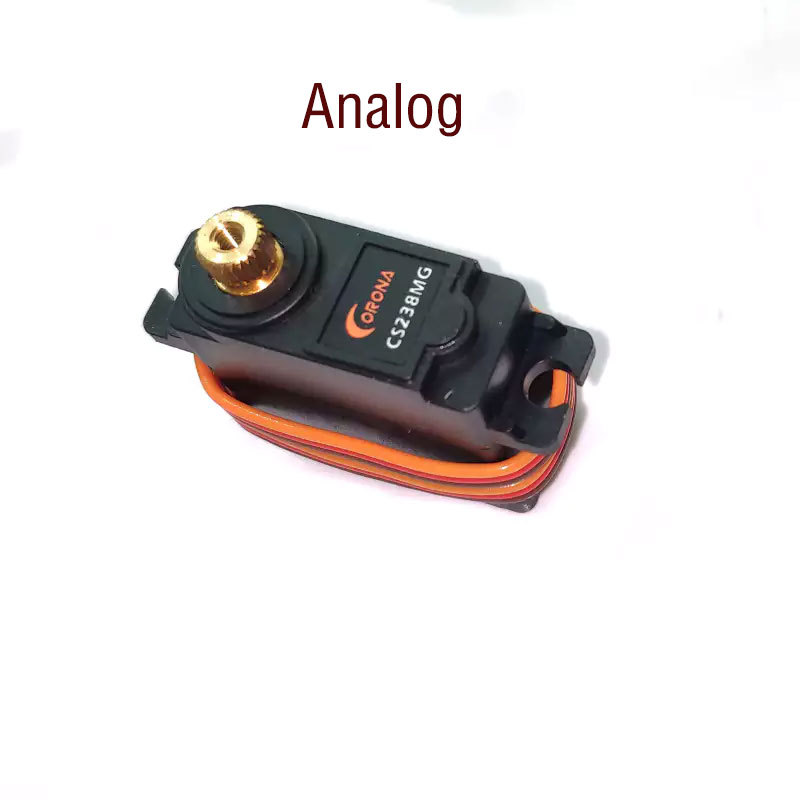

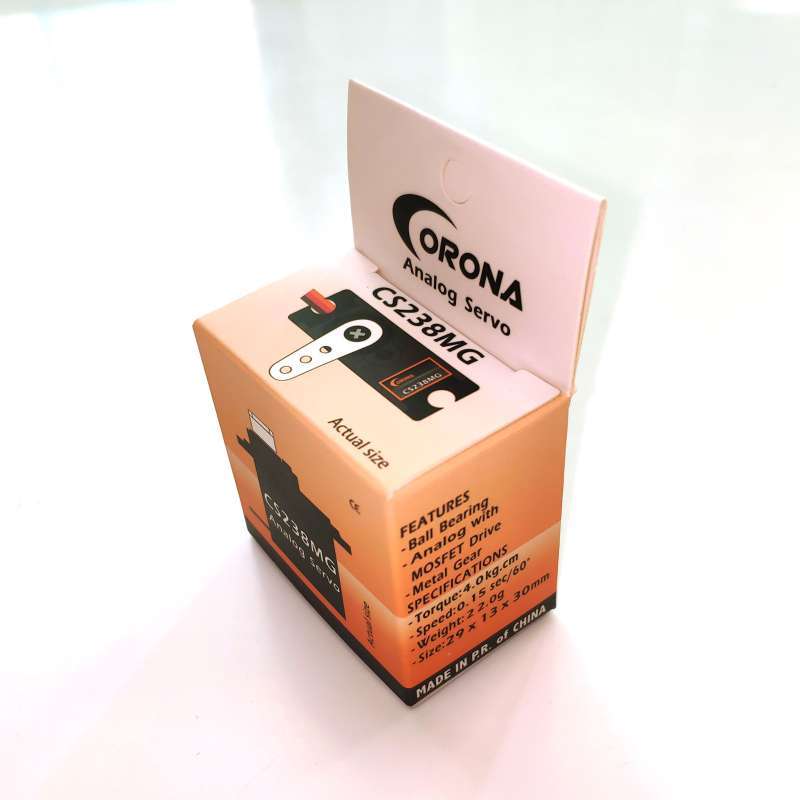

Type: CS238MG
Size:29x13x30mm(1.14"x0.51"x1.18")
Weight: 22g(0.77OZ)
Working Voltage:4.8V / 6.0V
Working Current:300mA / 400mA
Operating Rate:0.15sec.60o/ 0.14sec.60o
Stall Torque: 4kg.cm / 4.6kg.cm
Potentiometer type: 3 slider/Indirect Drive
Gear Material:Metal
Connector wire length:215mm
Operating temperature: -20 centigrade to +60 centigrade
Includes:
1 x servo with servo horns
