Technical Parameters
Maximum Pull Force：26.5kg/shaft (53.6V/sea level)
Recommended Takeoff Weight： 11-13kg/axis (53.6V/sea level)
Recommended Battery： 14S LiPo
Operating Temperature Range： -20~50°C
Powertrain Weight： 1774g
Ingress Protection Rating： IPX7
KV Rating： 100KV
Stator Dimensions： 96X20mm
Bearings： imported waterproof bearings
Supported Batteries： 6-14S LiPo
PwM input Signal Level： 3.3V/5V (compatible)
Compatible Signal Frequency： 50-500Hz
Operating Pulse width： 1050-1950μS
(Fixed throttle, no calibration support)
Maximum Allowable Voltage： 60.9V
Maximum Allowable：120A
Current (Short-Term Sustained)： (Requires excellent cooling conditions)
BEC： None
Diameter*pitch： 36*120 inch (Carbon fiber)

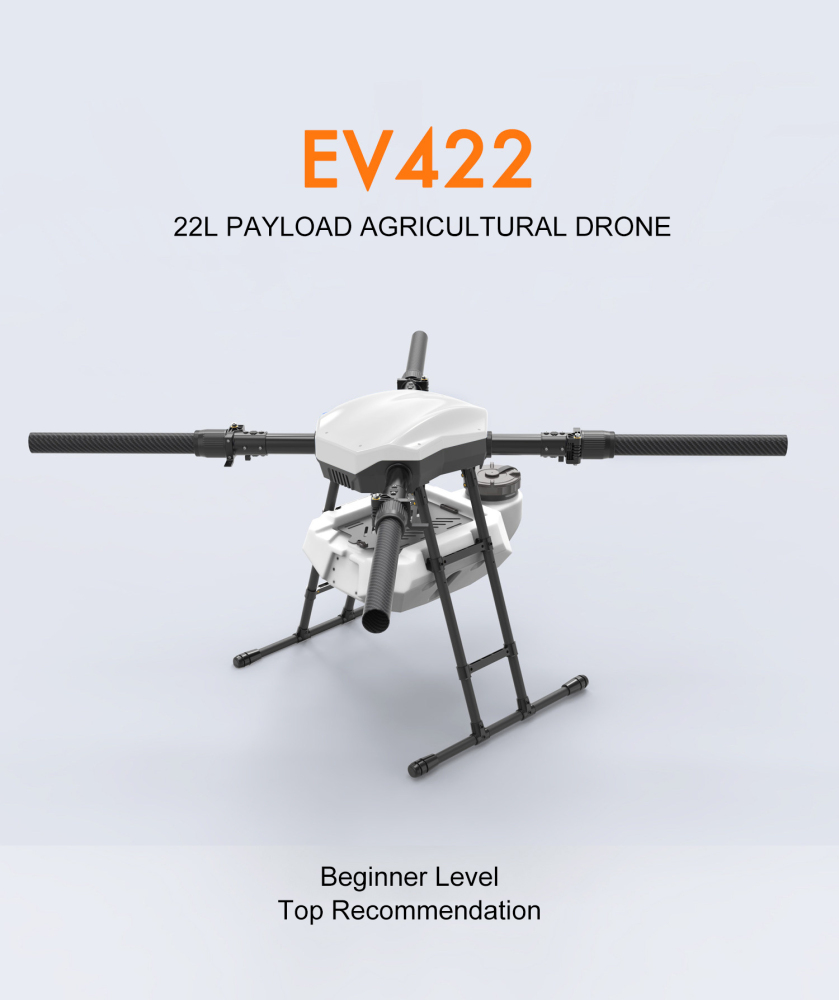

Frame Specification:
Size:1100*1100*600mm
Wheelbase:1400mm
Pesticide container capacity: 22L
