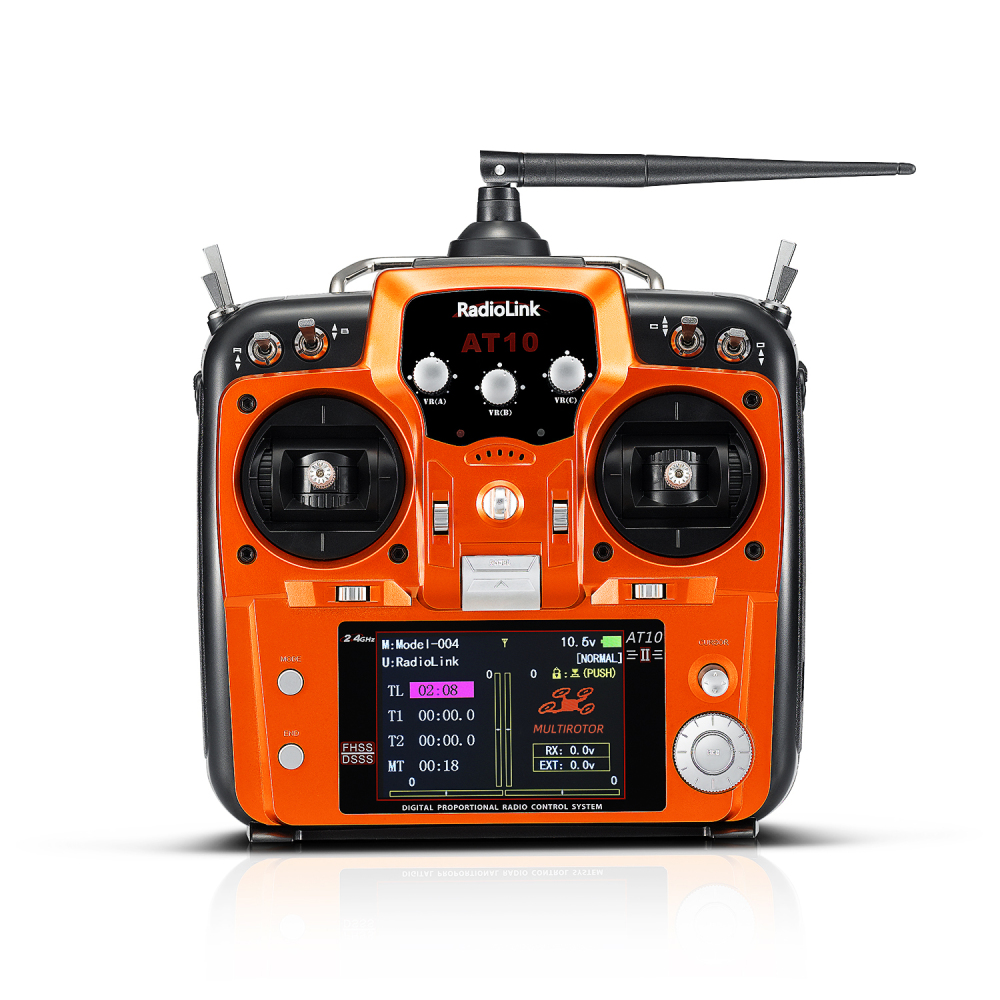

AT10II 12-Channel Remote Control
1. Utilizes DSSS and FHSS spread spectrum technology for enhanced interference resistance;
2. Features a low-noise 7dBi high-gain antenna and a dual-antenna receiver, enabling stable control at distances of up to 4 kilometers;
3. Supports expansion with video return modules; the receiver can be connected to PRM-01 and PRM-03 video return modules, allowing you to easily monitor model information during flight directly on the remote controller; 4. 12 channels with a simultaneous 3ms response time, ensuring precise, lag-free control.
5. Low power consumption supports extended flight times; a 3S 1800mAh battery provides up to 12 hours of continuous operation;
6. True 4096-step precision (0.25us per step) ensures servo jitter-free operation;
7. Compatible with all types of models, supporting all helicopters, fixed-wing aircraft, gliders, multirotors, and other models available on the market;
8. Electronic reverse-polarity protection; wide input voltage range of 7.4–15V; supports 2S–4S LiPo batteries or 8 AA alkaline batteries;
9. S-BUS, PPM, and PWM multi-signal output;
10. USB-enabled online firmware updates;
11. Multiple alarm alerts, including low RSSI, low transmitter voltage, low receiver voltage, and low power battery voltage warnings;
15. Transmitter operating voltage range: 7.4–18.0V (8 AA batteries, 2S–4S LiPo batteries, or 18650 LiPo batteries);
16. Operating voltage range of the standard R12DS receiver: 3.0–10 V DC;
17. Compatible receivers: R9DS, R12DS, R12DSM, R6DS, and R6DSM.
