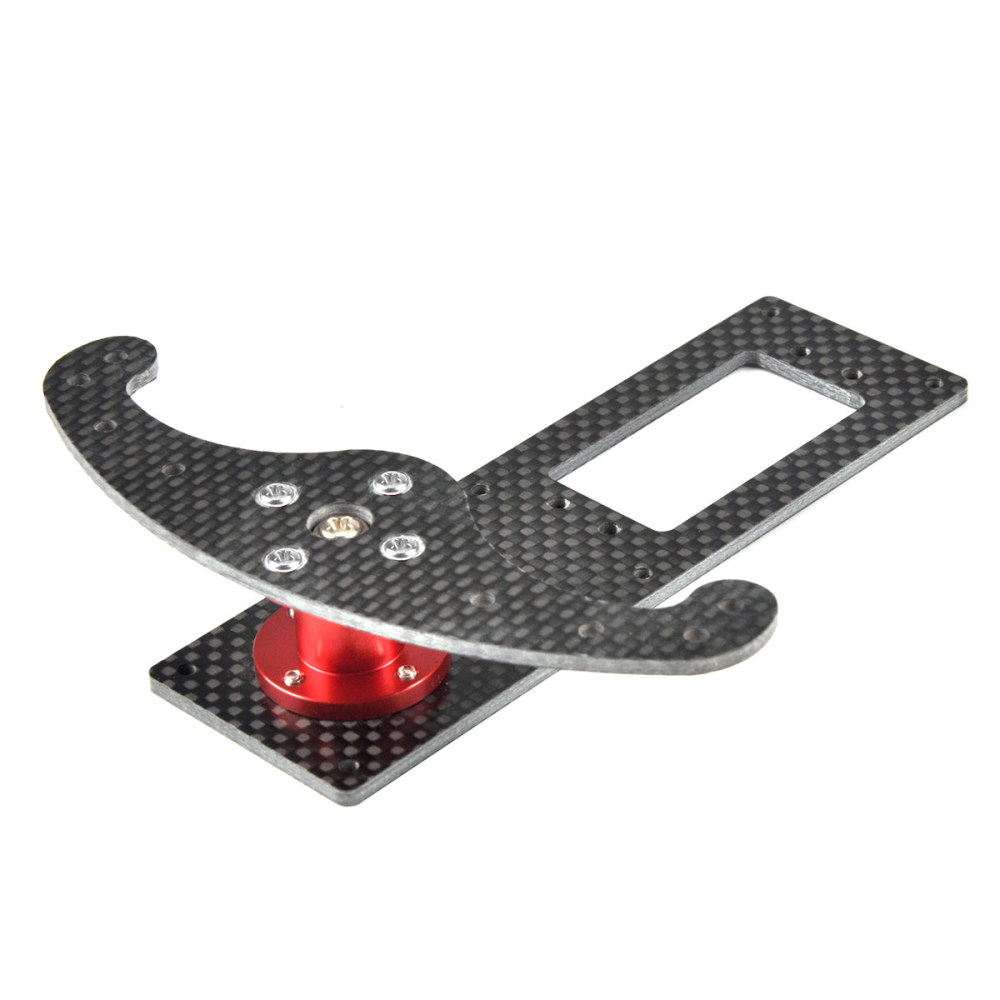

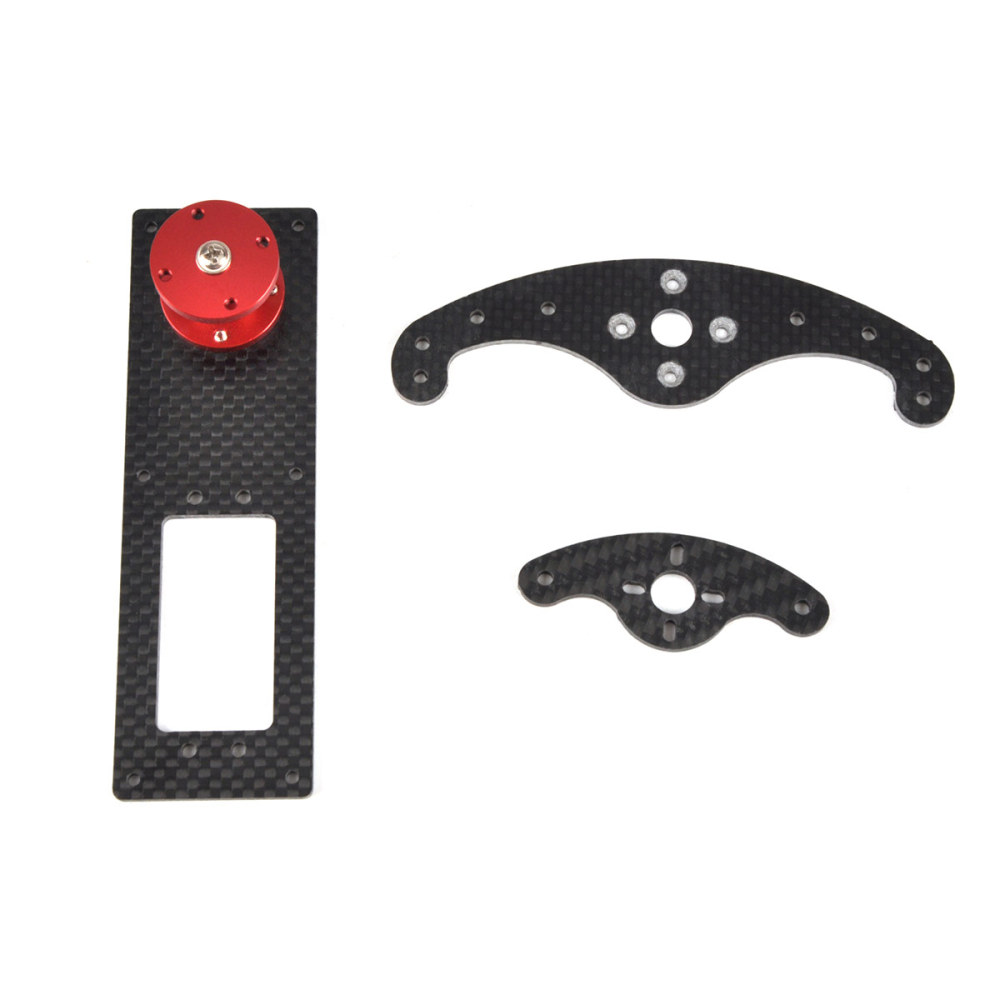

Carbon Fiber Vertical Rudder Mount / Rudder Tray Set for 20-50CC Airplane

Name: Carbon Fiber Vertical Rudder Mount / Rudder Tray Set for 20-50CC Airplane
Brand: ZYHOBBY
SKU: SDS006
Price: 14.2 USD
Availability: InStock
Rating: 5 (1 reviews)

SKU: SDS006

5 (1 Reviews)

23 Sold

~~$16.99~~ $14.20

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (1)

Description

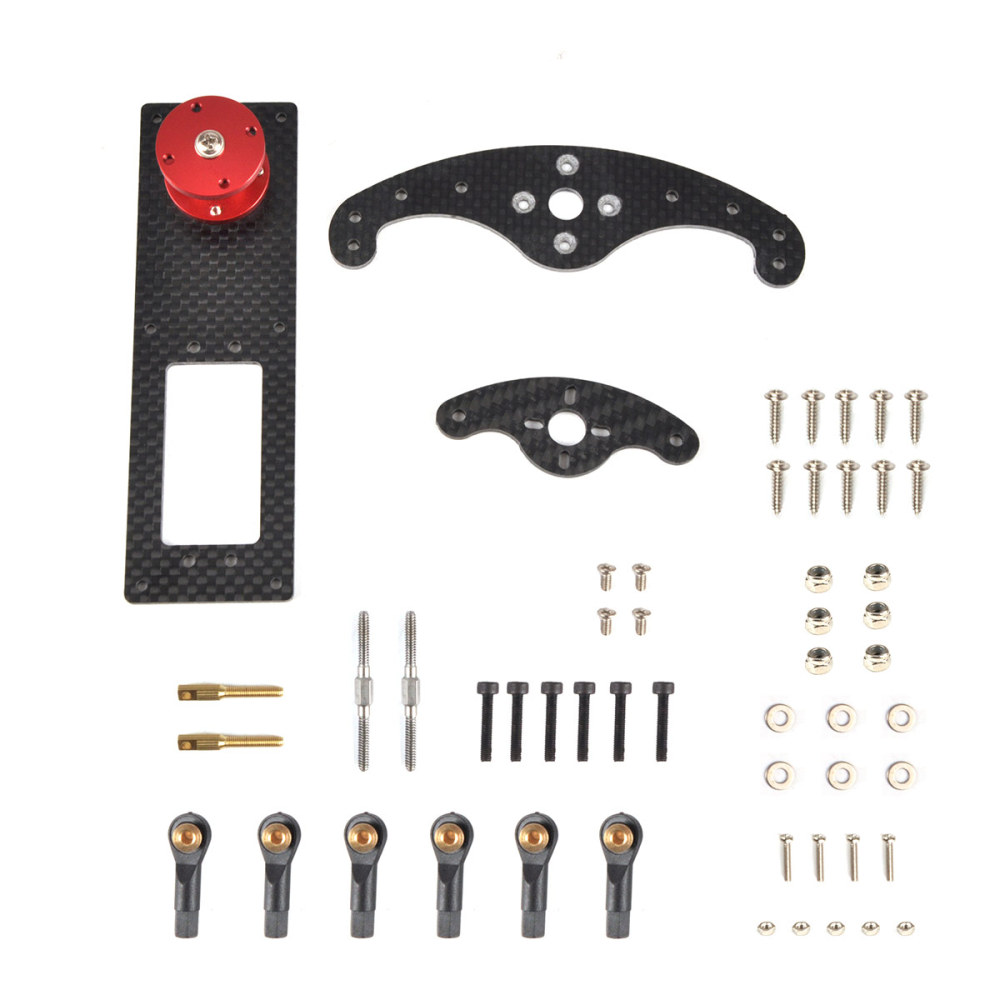

Specification:

Rudder Tray: L121*38mm, 1pcs
Carbon Fiber Servo Arm: L60*24mm, 1pcs; L112*33mm, 1pcs
Aluminum Bearing Mount: D25*H18mm
Aluminum Stick: D5*H16mm
Aluminum Round Servo Plate: D25*3mm
Bearing: D11mm
Stainless Steel Push Rod: L38mm
Standard Bearing Head: D3*28mm
Connecting Rod: L23mm
Flat Screw: K2.5*6mm (black)
Set Screw: PWA2.3*12mm
Nut: M2
Machine Screw A# with Wash: PM3*6mm
Machine Screw: PM2*8mm
Nylon Nut: M3
Washer: D7*d3mm
Taper Washer: D3mm (copper)
Machine Screw with Wash: PM3*14mm

Note:
Because the manual is the old version and our product is the new version, please refer to our photos for the accessories received not the manual.
