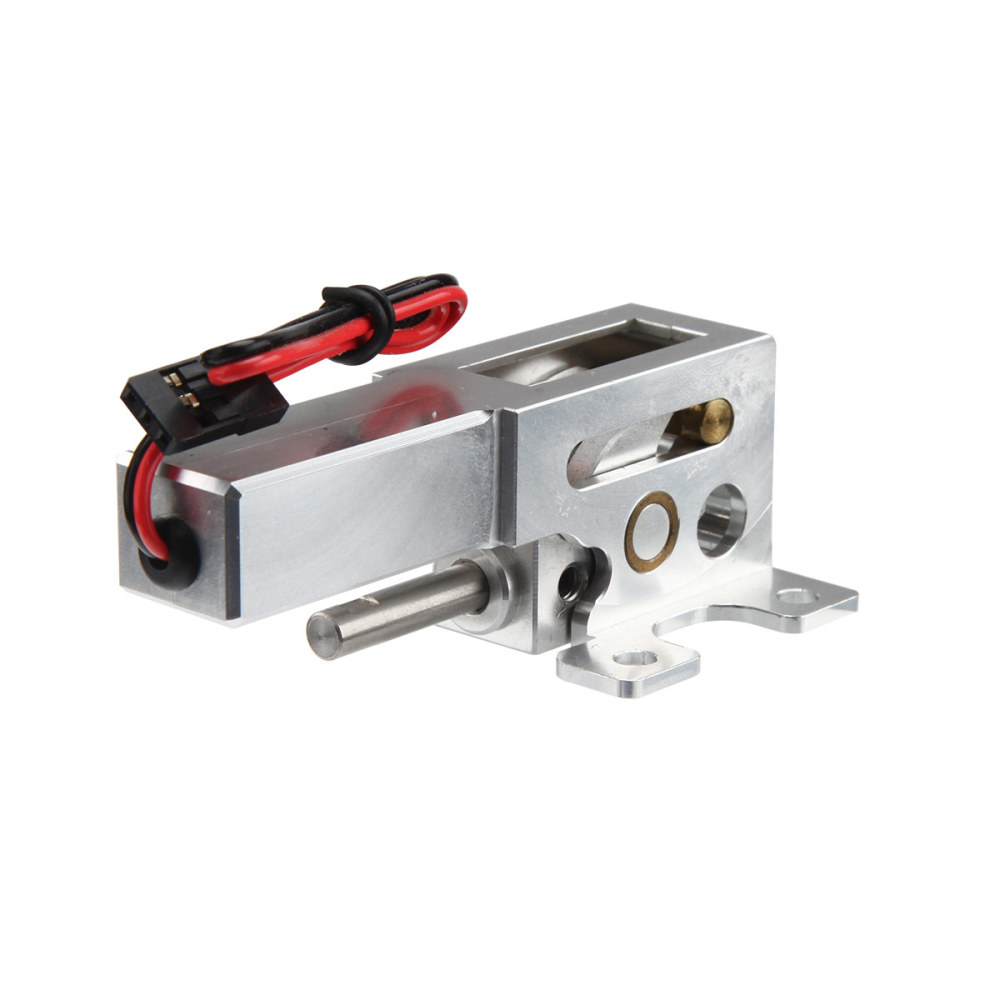

CYS-R3090 90 Degree Electric Rotating Retract Landing Gear for 1.4-1.6M Airplane

Price:
    Please select the information you wantX
Quantity:
-
+
(37 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
Or buy on other website:
Buy At AliExpress
  • Description
  • Reviews

Application&Features

  • Used for 5kg Vortex / Jet aircraft .
  • Full aluminum case outside with unique design.
  • Nose retract for optional : 90 degree
  • Main retract for optional : 90 degree

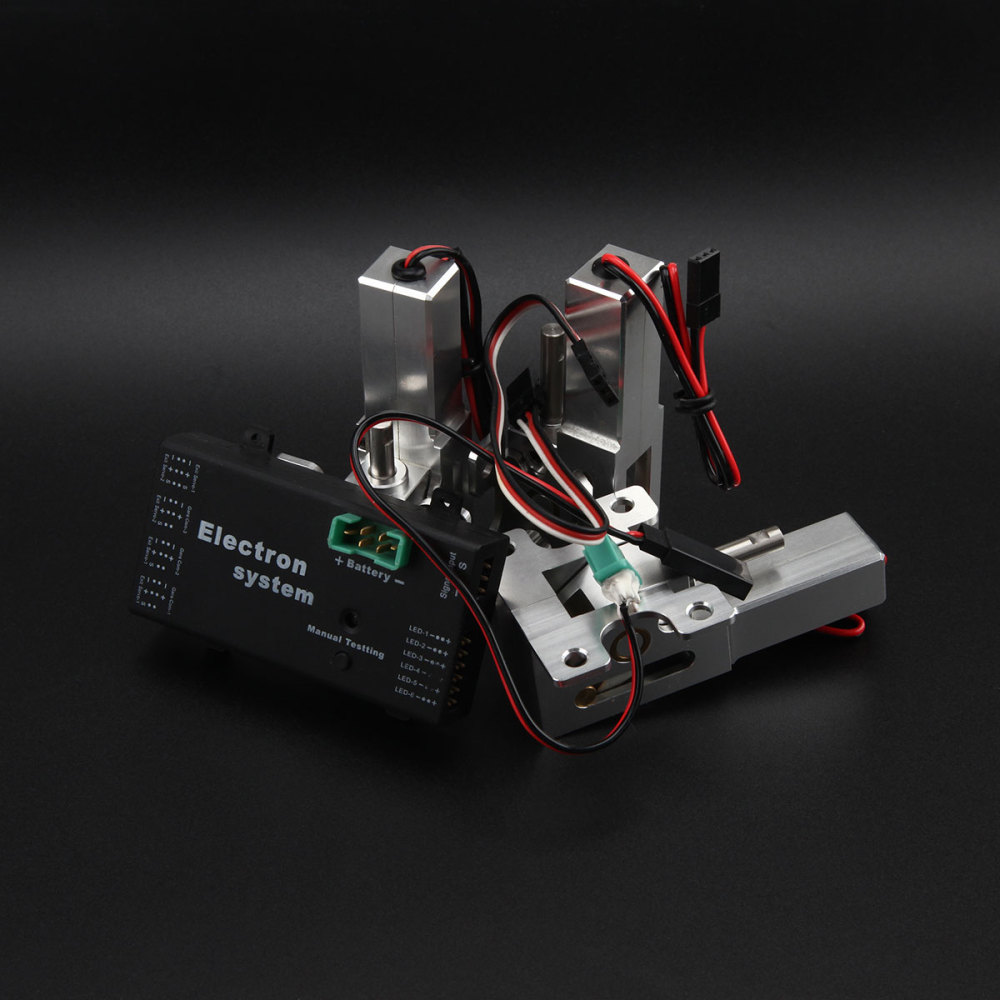

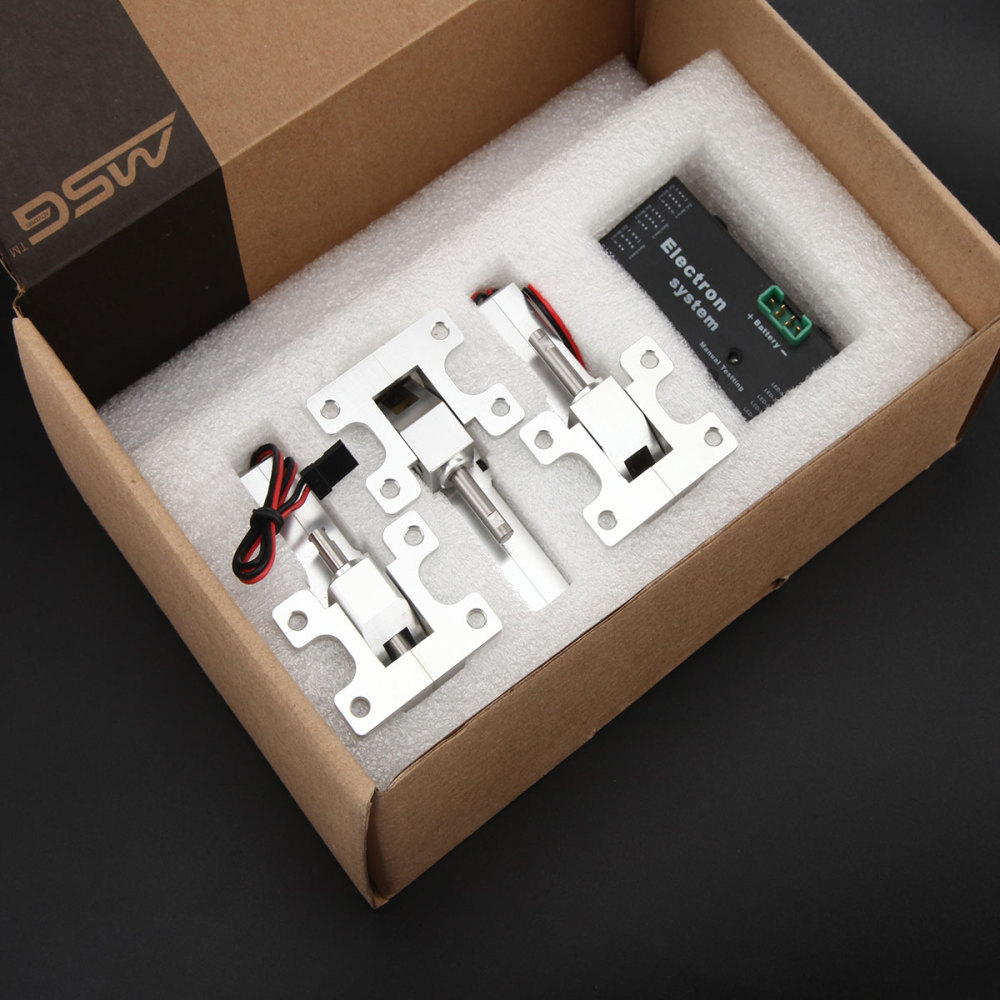

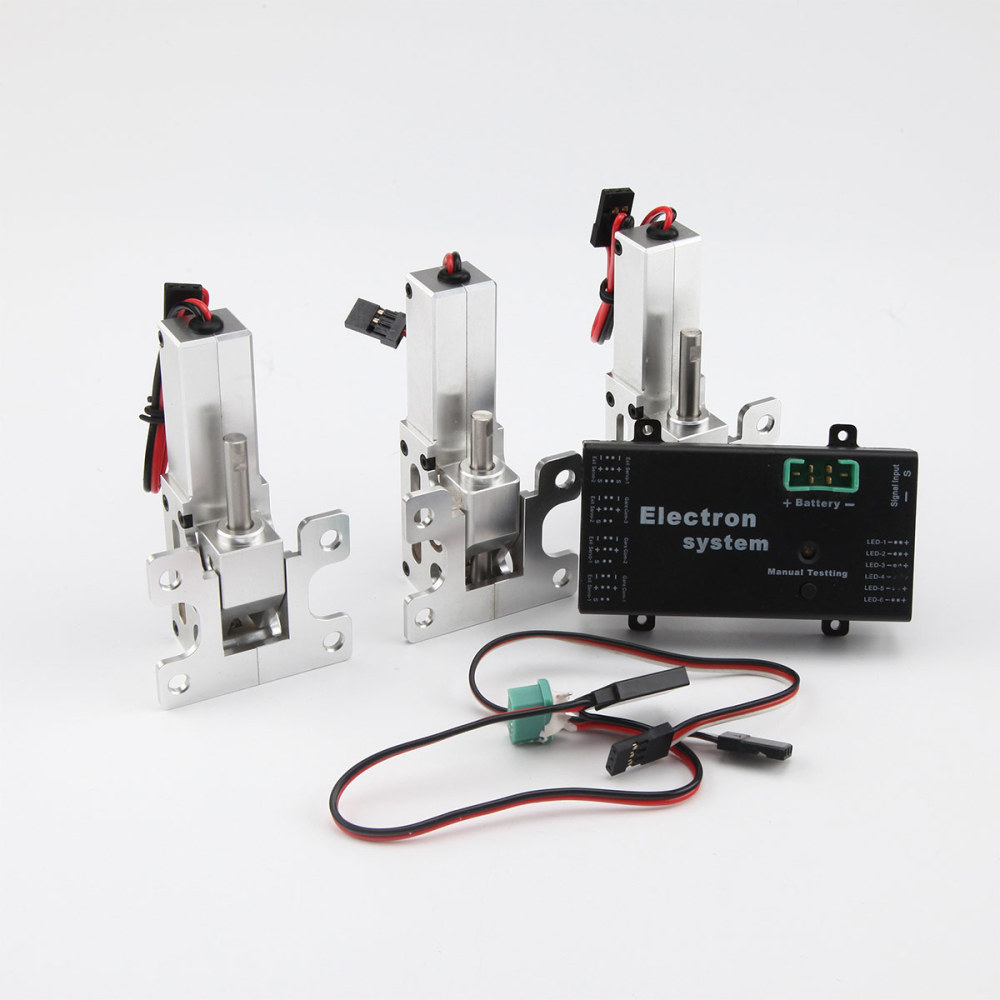

R3090 Landing gear set including

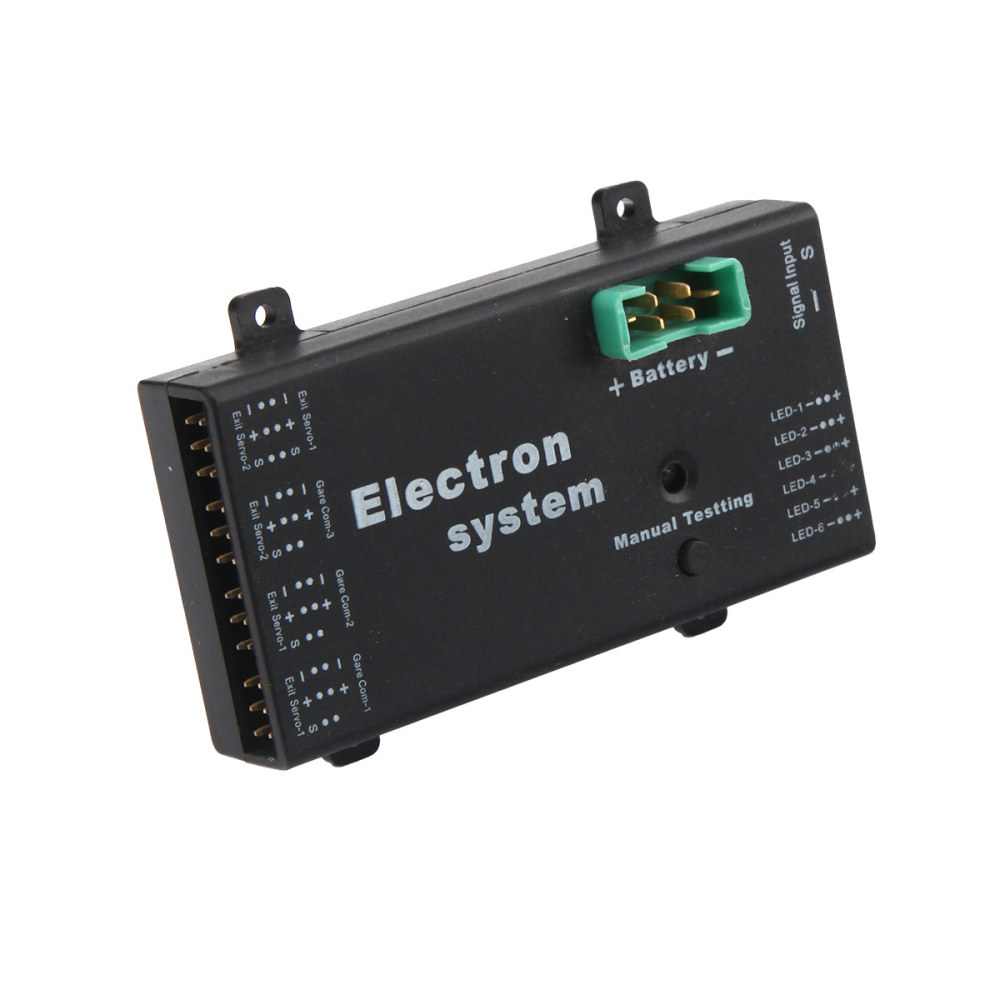

1* nose retract, 2* main retracts , 1* controller and 2* cables.

ITEM No. CYS-R3090
Weight 86±3g
Size 77.3*44.5*27.6MM
Voltage (6.0 V) 5.6sec/90°
Voltage (7.4 V) 5.0 sec/90°
Voltage( 8.4 V) 4.6sec/90°
Torque 5kg.cm
Voltage Range DC 6 ~8 Volt
Input Voltage Range DC 5 -8.4 Volt
Stall Current 1.8A
Max Current ≤ 4A
Pulse width Range 500 ~ 2500usec
