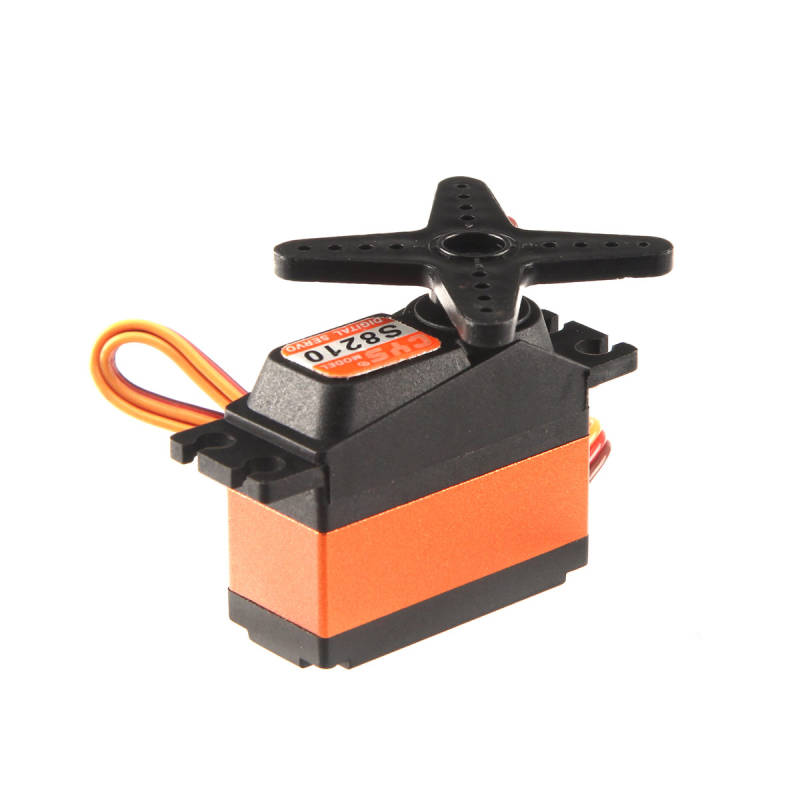

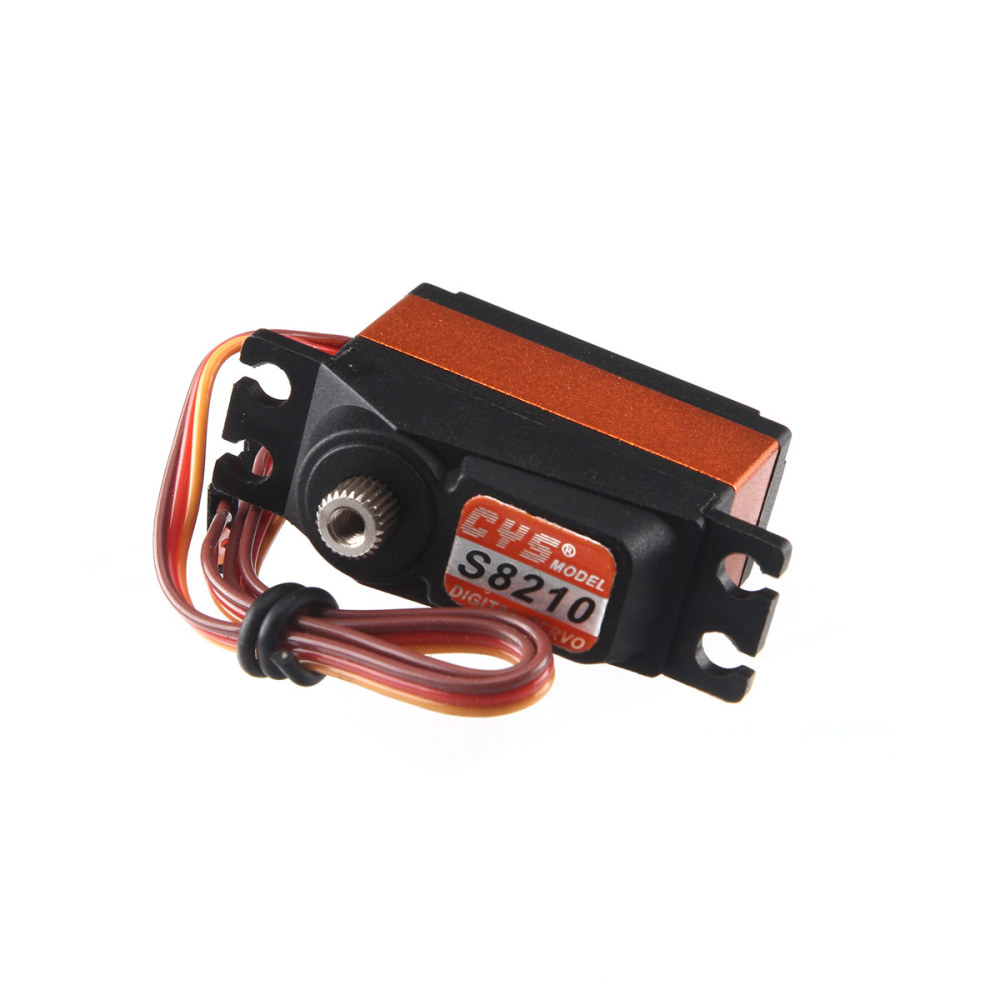

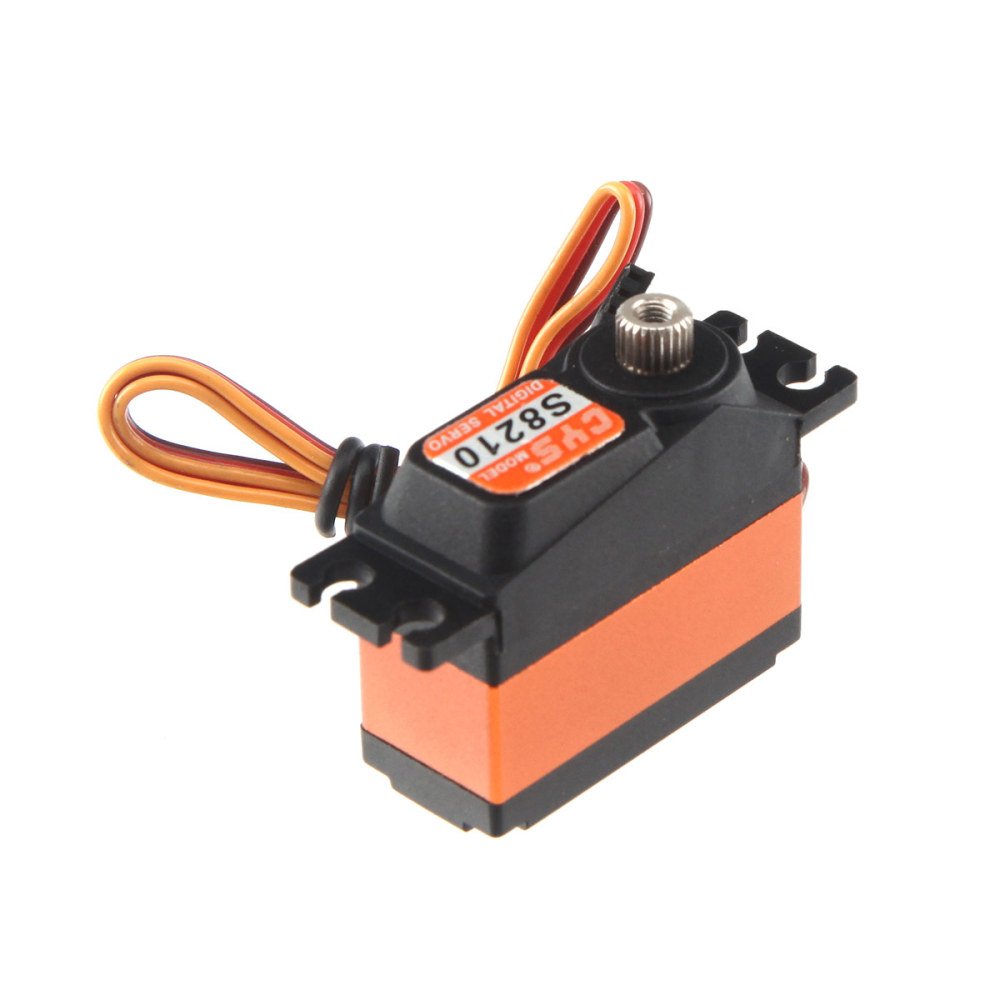

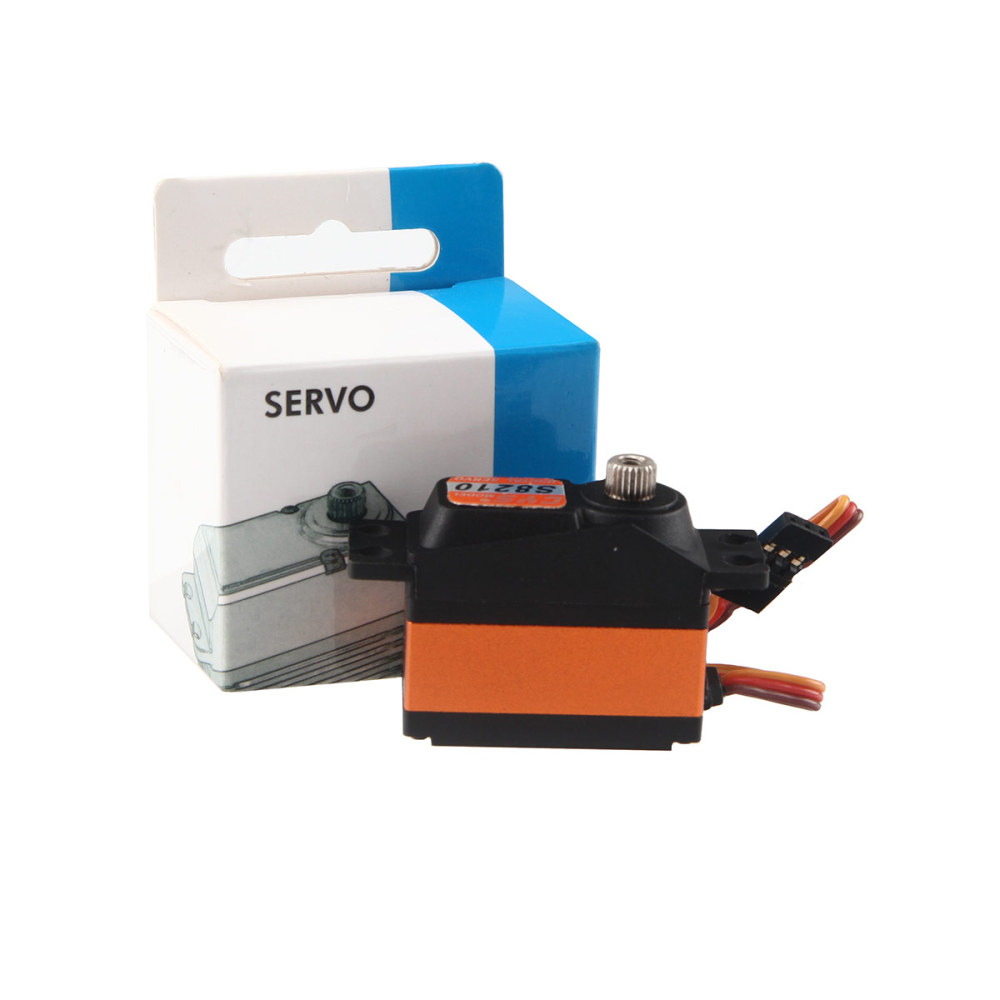

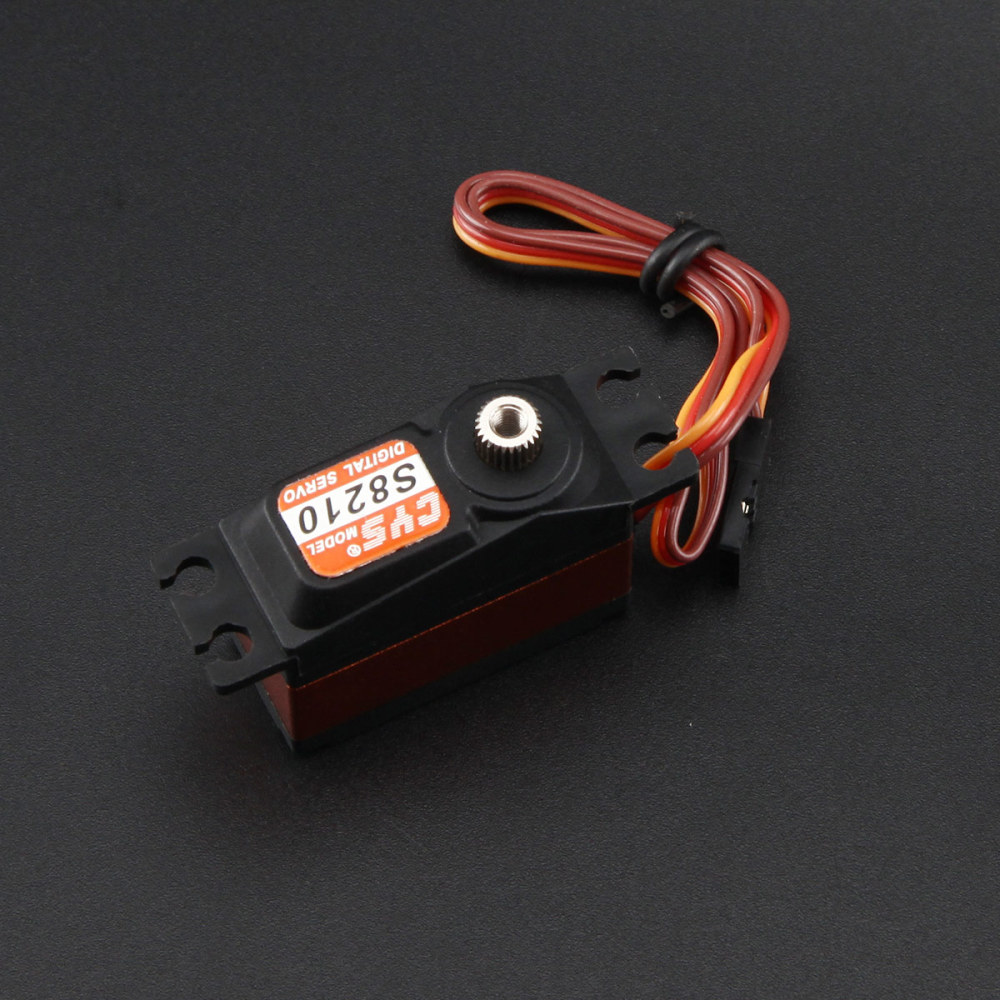

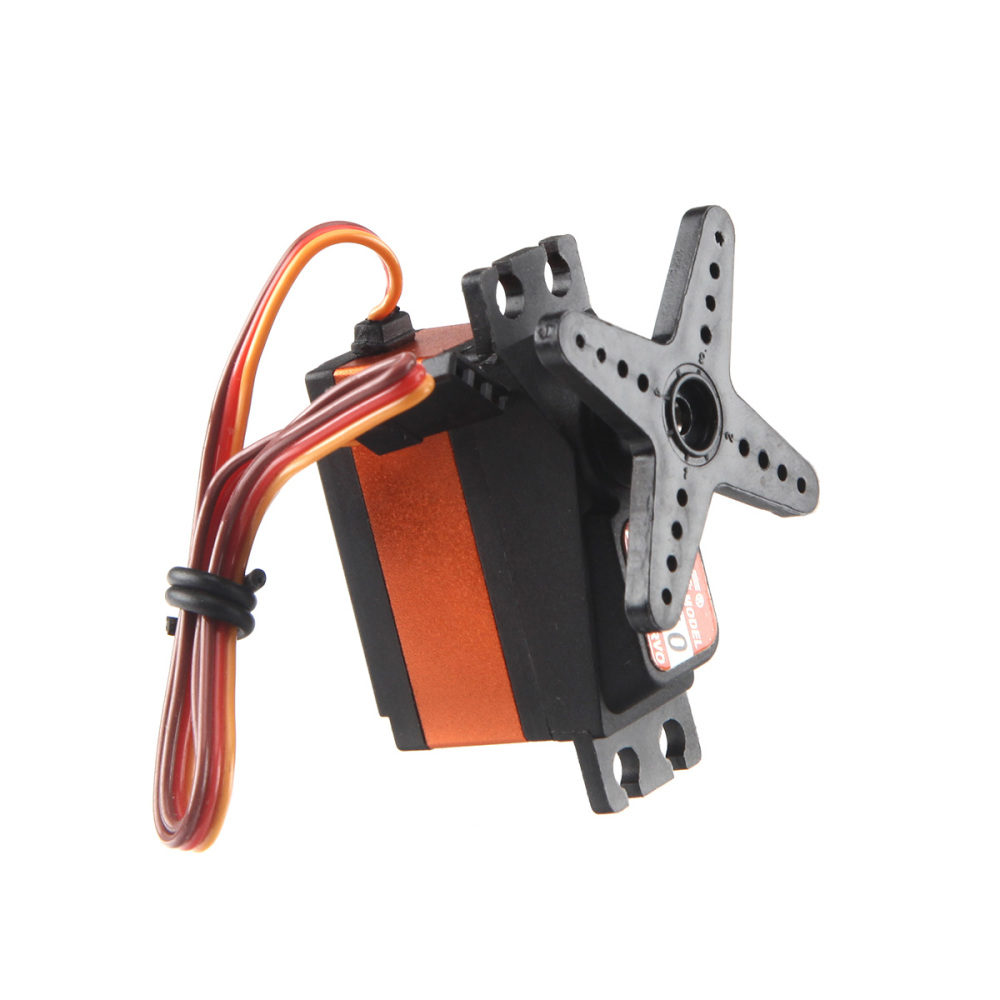

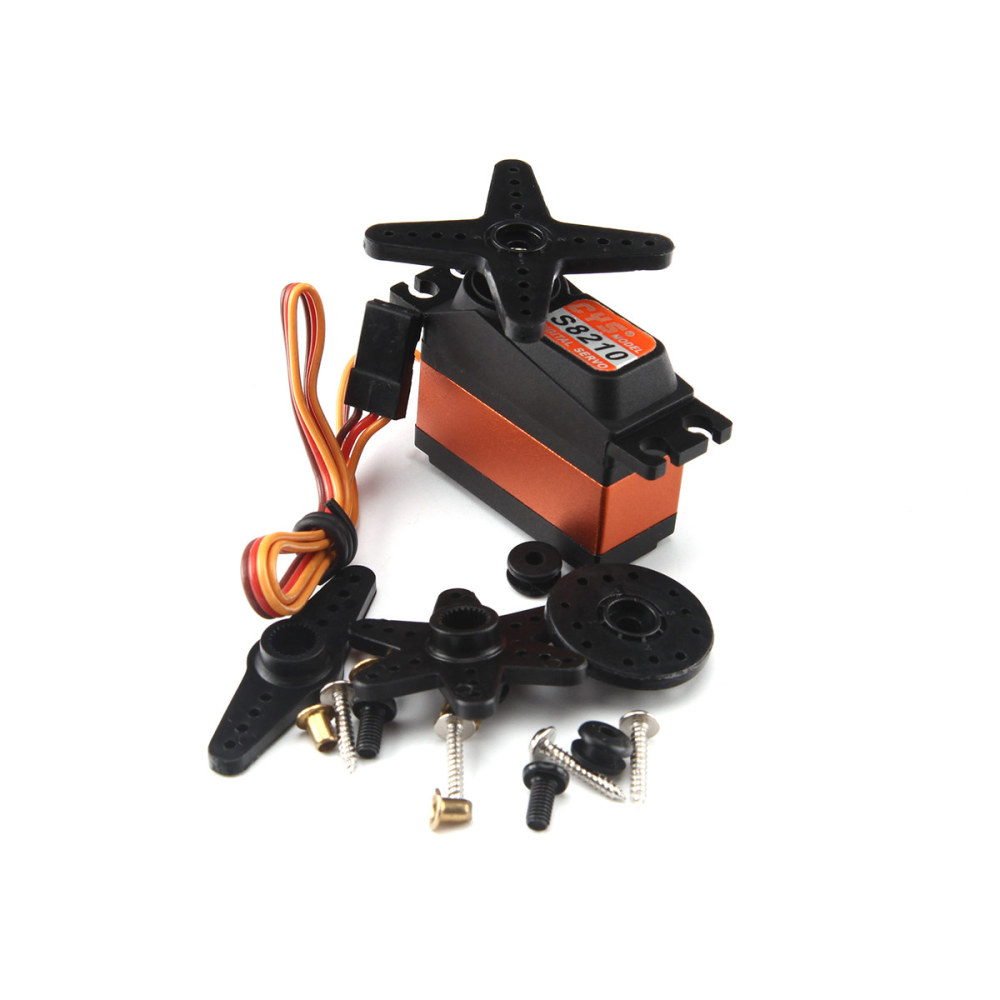

Item NO.: CYS-S8210
Description : digital servo for 500 classes helicopter
Size : 35*15*30MM
Torque : 2.0Kg.cm ~ 2.5Kg.cm
Speed : 0.09sec ~ 0.08sec/60 degree
Voltage : 6.0Volts ~7.4Volts
Weight : 30± 1 g
| Type | Digital |
|---|---|
| Weight | 28g±1g |
| Size | 35*15*30mm |
| Control System | (+)Pulse Width Control 1500usec Neutral |
| Operating Voltage | 4.8.0~6.0Volts |
| Operating Temperature Range | (-)10 to +50 degree C |
| Operating Speed (6.0V) | 0.10sec/60° at no load |
| Operating Speed (7.4V) | 0.08sec/60° at no load |
| Stall Torque (6.0V) | 2.0kg.cm |
| Stall Torque (7.4V) | 2.2kg.cm |
| Operating Angle | 45deg.one side pulse traveling 500 usec |
| Direction | Anticlockwise/Pulse Traveling 1000~2000usec |
| Current Drain (6.0V) | 20mA/idle and 120mA no load operating |
| Current Drain (7.4V) | 20mA/idle and 150mA no load operating |
| Stall Current | 0.8A/0.9A |
| Dead Band Width | 2usec |
| Motor Type | Coreless motor |
| Bearing Type | ball bearing |
| Horn gear spline | 25T |
| Gear Type | Metal |
| Connector Wire Length | 250mm |
| Wire info | Brown/Black = Negative |
| Red = Positive | |
| Orange/White = Signal |
