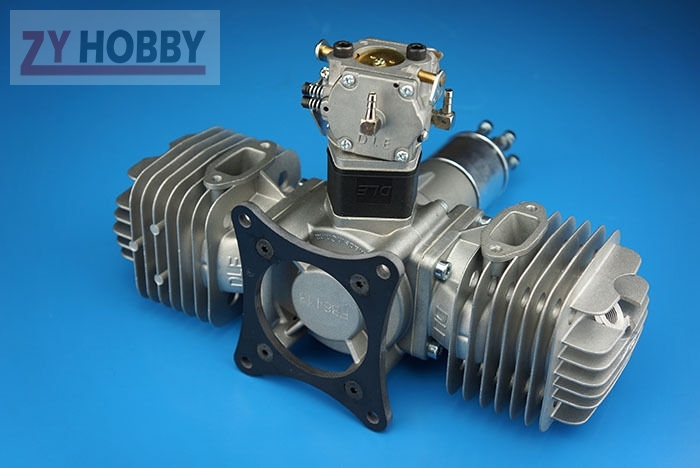

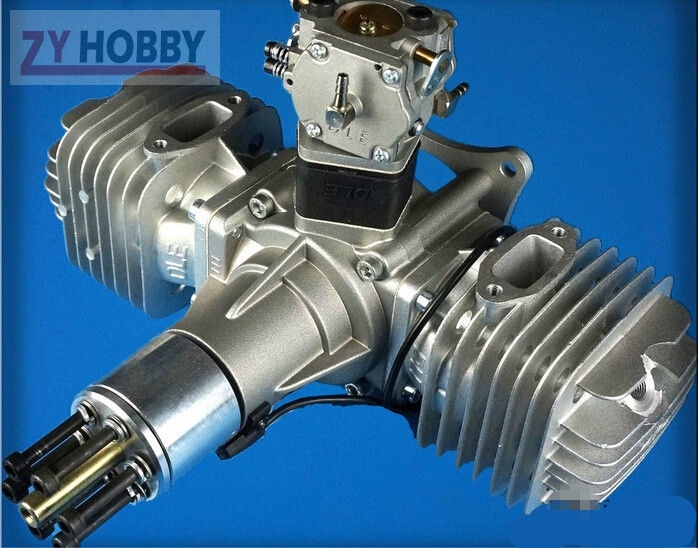

DLE111 Twin Engine W/ Electronic Ignition and Muffler

SKU: DLE111
Same mounting footprint and prop hub bolt spacing as DA-100
Mufflers and exhaust systems designed for the DA-100 / DL-100 will bolt directly onto the DLE-111
The DLE-111 is the same as the DL-100 but has different pistons/cylinders/Crankcase with a slig
0.0 (0 Reviews)
2 Sold
$0.00 $840.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • DLE111 Twin Engine W/ Electronic Ignition and Muffler
  • DLE111 Twin Engine W/ Electronic Ignition and Muffler
  • DLE111 Twin Engine W/ Electronic Ignition and Muffler
  • Description

DLE 111



Specifications:
Displacement:111 cc (6.773 cu in)
Bore: 1.77 in (45 mm)
Stroke: 1.38 in (35 mm)
Weight: 6.3 lb (2.86 kg)
RPM Range: 1,300-8,500
Output: 11.2 hp at 7,500 rpm
Requires: Gasoline, oil, ignition battery & propeller

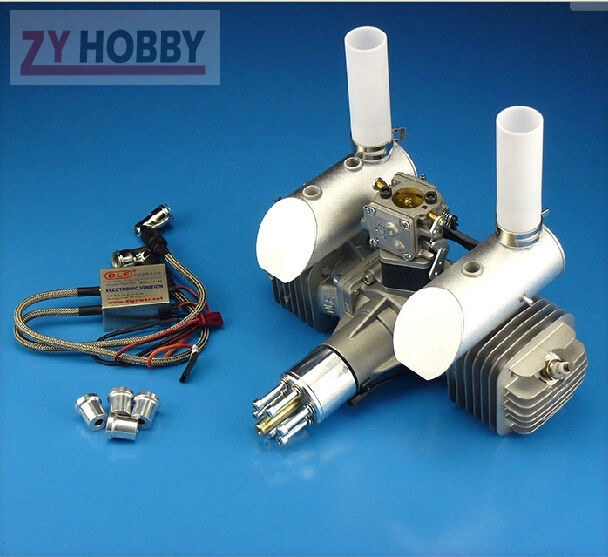

Includes: electronic ignition, mufflers, spark plugs, gaskets, bolts, machined aluminum standoffs, throttle arm extension & mounting template
Suggested Propellers: 26x12, 27x10 & 28x10


Technical Data:
Manifold: Double V-type, reed-valve, bottom induction

Ignition Battery: 4.8-6.0V NiCd or NiMH, 6.6V LiFe or 7.4V LiPo pack (LiPo or LiFe use requires voltage regulators.)
Compression Ratio: 7.6:1
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 (DLEG5510) or equivalent
Weights (individual):
Engine: 88.2 oz (2,500 g); Exhaust (2): 7.1 oz (200 g); Ignition: 3.9 oz (110 g)
