DUALSKY VR Pro High Current Linear Voltage Regulator Stabilizer Suitable for 50CC Gasoline Engine Airplane

SKU: XM46745-50CC
5 (2 Reviews)
17 Sold
$0.00 $34.99
Received successfully
Coupon Code
CONTINUE SHOPPING
Discount
  • GET $6.00 OFF ON ORDERS OVER $100.00
  • GET $20.00 OFF ON ORDERS OVER $300.00
  • GET $40.00 OFF ON ORDERS OVER $500.00
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • DUALSKY VR Pro High Current Linear Voltage Regulator Stabilizer Suitable for 50CC Gasoline Engine Airplane
  • DUALSKY VR Pro High Current Linear Voltage Regulator Stabilizer Suitable for 50CC Gasoline Engine Airplane
  • DUALSKY VR Pro High Current Linear Voltage Regulator Stabilizer Suitable for 50CC Gasoline Engine Airplane
  • DUALSKY VR Pro High Current Linear Voltage Regulator Stabilizer Suitable for 50CC Gasoline Engine Airplane
  • Description

Features:

Compact design, the port uses horizontal needles, fast plug, for convenient applications;

In-built tri-color input voltage monitor, has a memory function for low voltage;

Support HV servo system (7.4V), switchable.

Default equipped with FSS-4 switch, support FSS-3 Fail Safe switch;

Equipped with heat sink, able to connect external cooling fan.

Support 6pcs 30kg digital servos working at the same time.

Support max 8kg RC Airplane, e.g. 50CC gas engine plane.



Electrical Features:

Linear regulating, low-ripple, non-interfering;

Use dual MosFET output, independently linearly control IC, strong capacity for large current output;

Low dropout design for input/output; taking full advantage of battery capacity, obvious effect on HV mode;

Very good heat sink ability and anti-overload capacity;

In-built MCU precisely controls FSS-3 and in-built voltage monitor;

The whole system adopts Fail Safe design, guaranteeing non-stop working;

SMT technology for the main board, quality assured;

Input/output adopts high quality tantalum capacitors;

Full inspection before leaving factory;

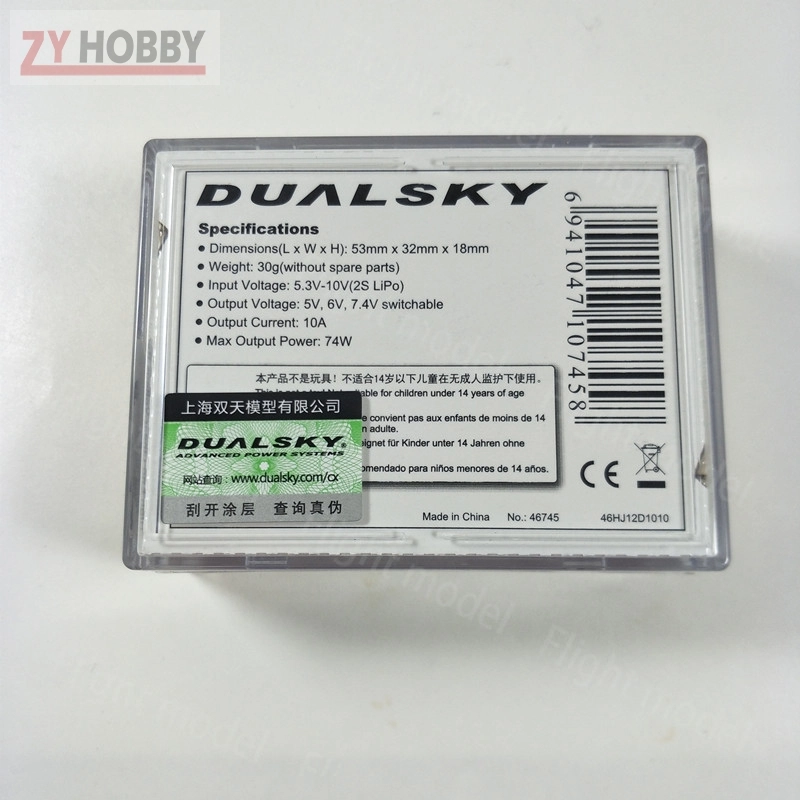

Parameters:

Input Voltage: DC5.3V-8.4V, MAX 10V (2S LiPo)

Output Voltage: 5V, 6V, 7.4V (Switchable, Tolerance ±3%)

Output Current: DC 0-10A (Vin-Vout≤1V)

Min Dropout Voltage: ≤0.2V

Power Effection: 0.30%

Voltage Effection: 0.30%

Output Ripple: ≤2mV

Dimensions: 53*32*18mm

Weight: 30g (not including other accessories)
