Pre-sale

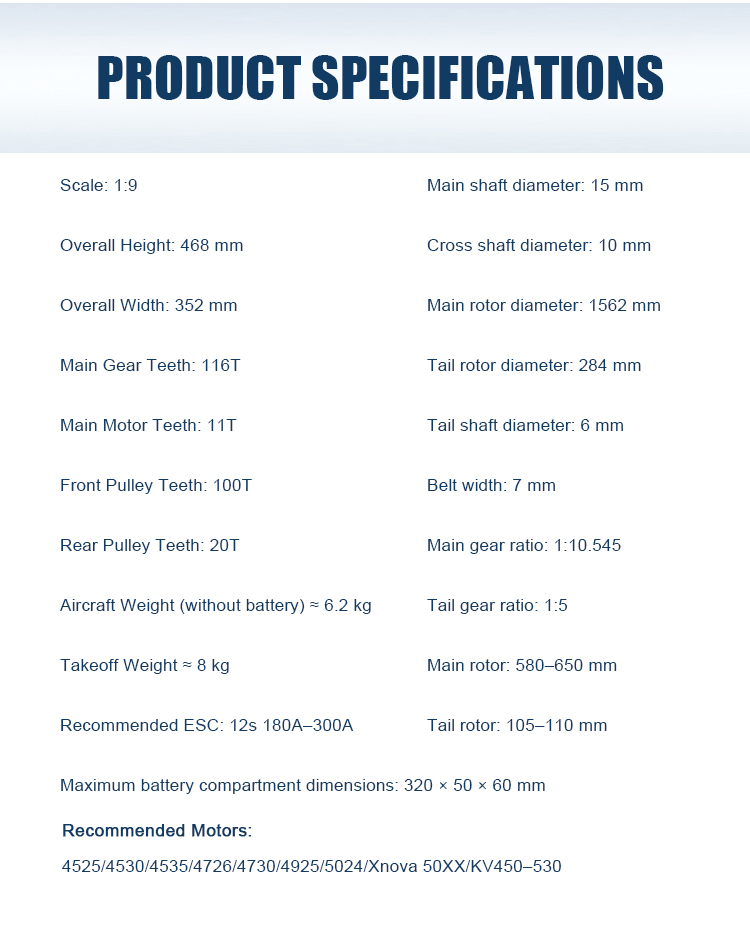

Scale: 1:9

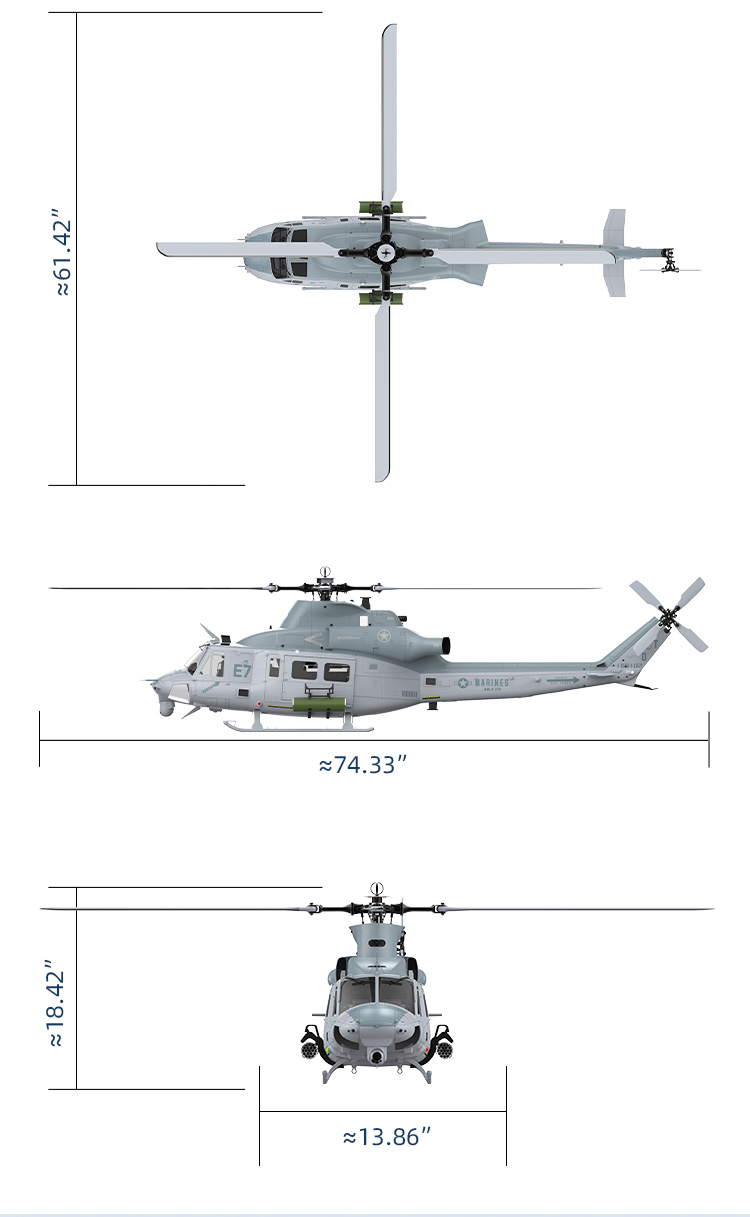

Overall Height: 468mm
Overall Width: 352mm
Main Gear Teeth: 116T
Motor Pinion Teeth: 11T
Front Pulley Teeth: 100T
Tail Pulley Teeth: 20T
Aircraft Weight (w/o battery): ≈6.2kg
Take‑off Weight: ≈8kg
Recommended ESC: 12S 180A‑300A
Battery Compartment Max Size: 320
5060mm
Recommended Motor: 4525/4530/4535/4726/4730/4925/5024/Xnova 50XX
KV450~530
Main Shaft Diameter: 15mm
Cross‑Shaft Diameter: 10mm
Main Rotor Diameter: 1562mm
Tail Rotor Diameter: 284mm
Tail Shaft Diameter: 6mm
Belt Width: 7mm
Main Drive Ratio: 1: 10.545
Tail Drive Ratio: 1: 5
Main Rotor Blades: 580‑650mm
Tail Rotor Blades: 105‑110mm
