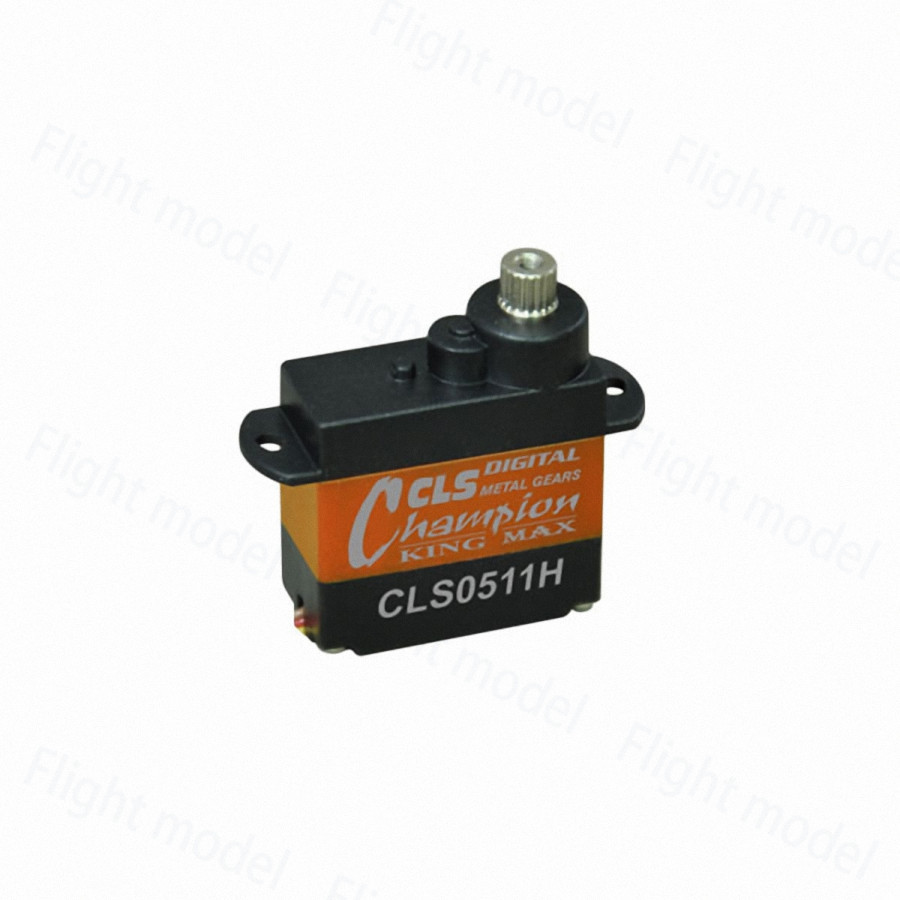

KingMax CLS0511H 5.3g Digital Coreless Micro Servo Operating Voltage DC3.7~6.0V
Specification:
Kingmax CLS0511H
Dead band: 0.8μs default
Working frequence: 1520μs / 330hz
Operating Voltage: DC3.7~6.0 V
Operating Speed (3.7V): 0.07sec/60 degrees
Operating Speed (5.0V): 0.06sec/60 degrees
Operating Speed (6.0V): 0.05 sec/60 degrees
Stall Torque (3.7V): 0.6 kg.cm (8.33oz/in)
Stall Torque (5.0V): 0.9 kg.cm (12.50oz/in)
Stall Torque (6.0V): 1.1 kg.cm (15.28oz/in)

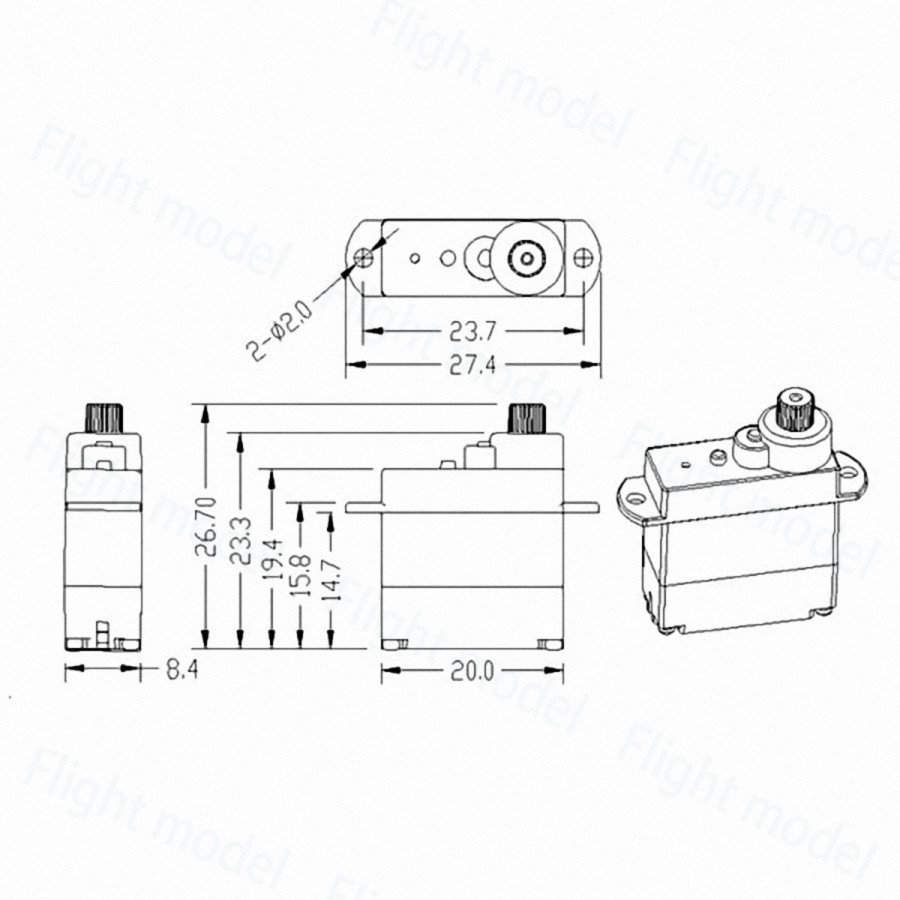

Dimensions: 20.9X8.4X23.3mm /0.82X0.33X0.92 in
Weight: 5.3 g (0.19oz)
Connector Wire Length: 85 mm (3.35in)
Packet included:
1 piece servo
