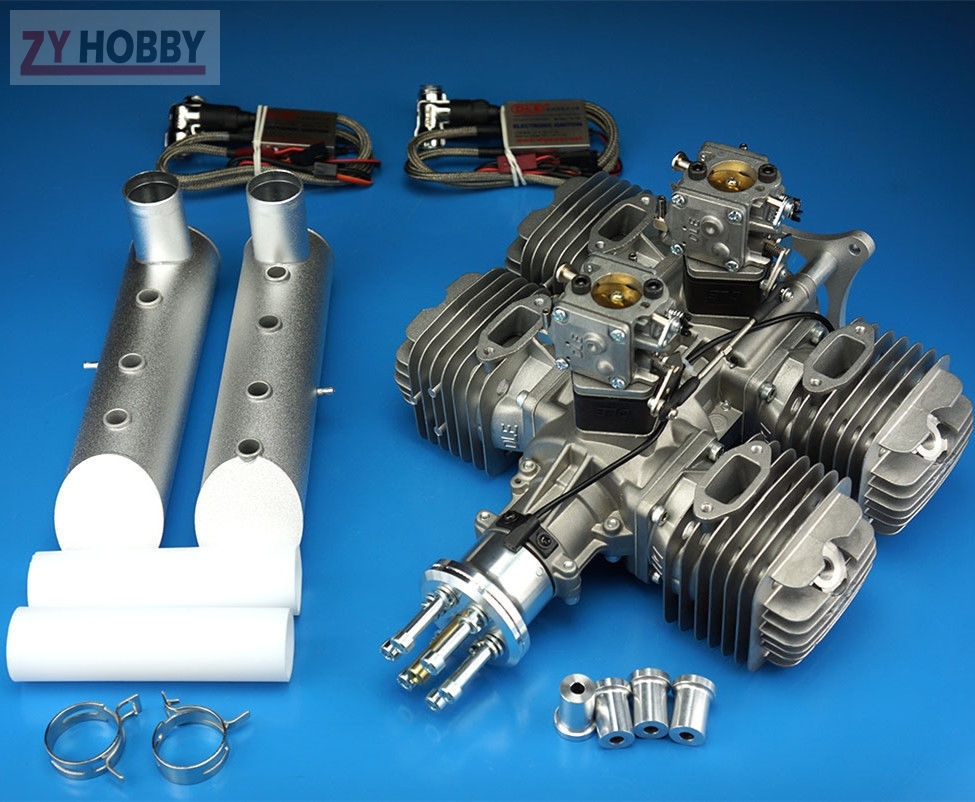

DLE222 Engine

SKU: DLE222
A huge model engine, rare people recognize it.
0.0 (0 Reviews)
0 Sold
$0.00 $1,869.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • DLE222 Engine
  • Description

aeProduct.getSubject()

This engine is not toy. For your own safety, please read the manual carefully before operation. DLE is not responsible for all injuries result from the use.

Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242,243) is strongly recommended on all the screws.



During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.



Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or running the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller


SPECIFICATIONS:

Performance:21.5HP/7500rpm

Idle Speed: 1000 rpm/min

Static Thrust 51Kg / 100 meters Altitude

Static Thrust 44.6Kg / 1800 meters Altitude

The specification of the aircraft propeller:32×10;32×12;34×10

the type of the sparking plug :NGK CM6

Parameter

Exhaust Amount :

222.5cm3

diameter × stroke :

45mm×35mm

Ratio of compression:

7.6:1

Ratio of lubricating capacity :

30: 1

Weight: Main engine:

4860g

Exhaust pipe:

470g

Ignition equipment:

380g

Ignition volt:

4.8V-8.4V
