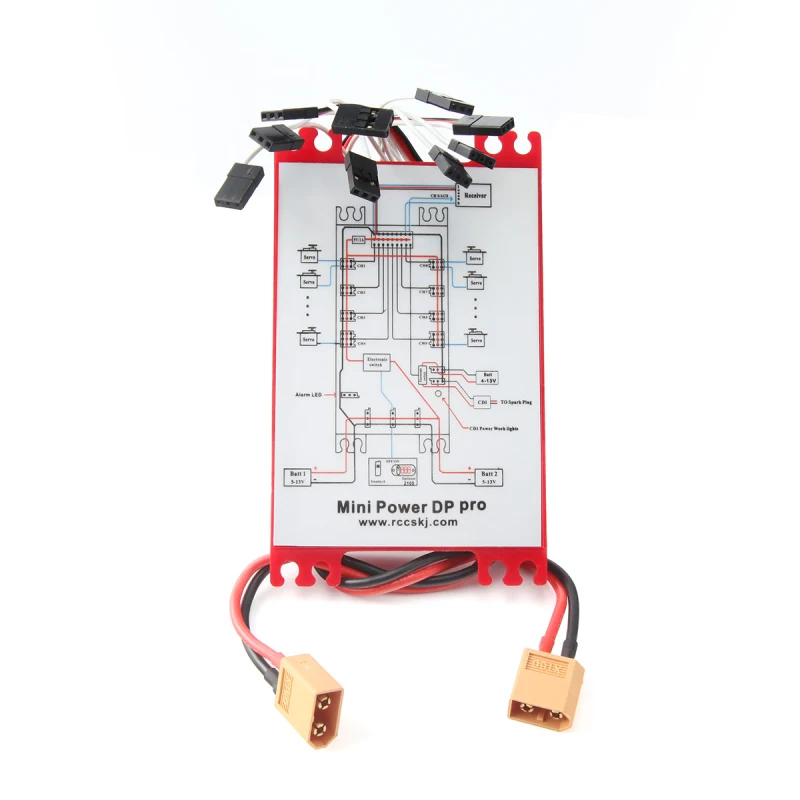

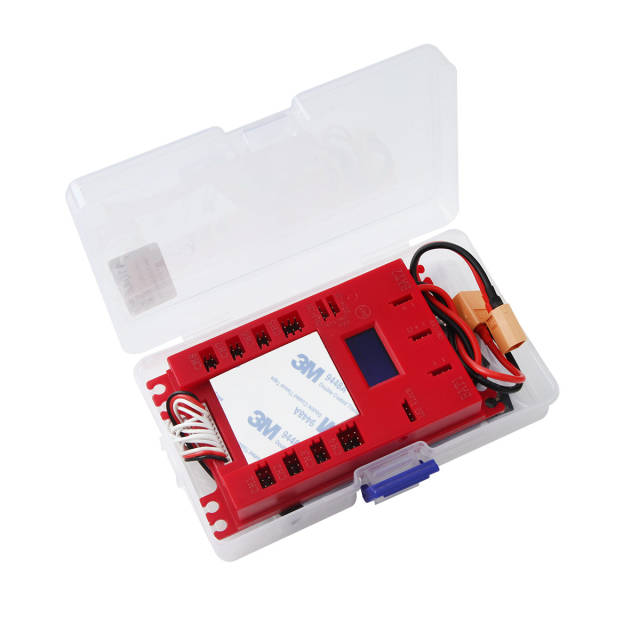

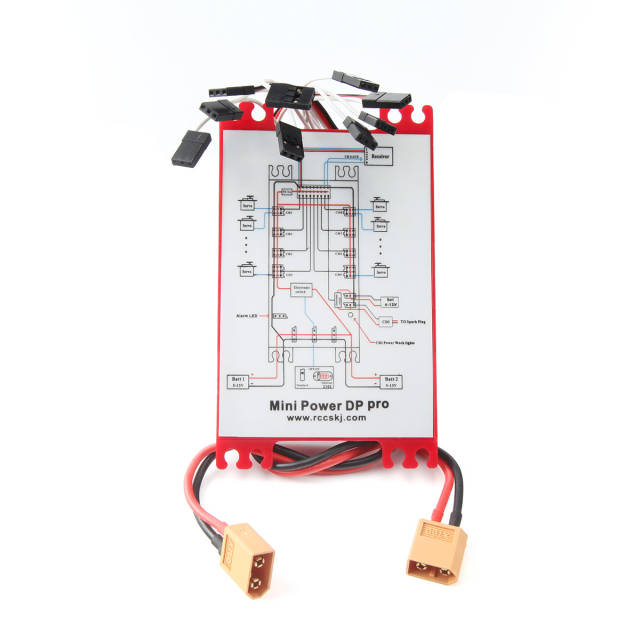

Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire

SKU: E4104
0.0 (0 Reviews)
12 Sold
$0.00 $87.50
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire
  • Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire
  • Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire
  • Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire
  • Rccsk E4104 Mini Power DP Pro 4.8-9.7V Servo Section Board with Dual Power Input Wire
  • Description

Produce features:

l         Dual power inputs effectively improve supply reliability.

l         Built-in electronic switch, compared with the conventional mechanical switch has higher security and stability.

l         HD OLED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.

l         You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)

l         9-channel inputs, 16 servo output (1 of 2), Article 9 channel control CDI flameout switch.

l         Built-CDI remote flameout switch, making flying safer.

l         Batteries and steering input interfaces directly connected, the input voltage is equal to the supply voltage servos, just use batteries of different voltage values to adapt to high voltage servos.

l         Independent 5V linear regulator which provide a separate pure working power supply to the receiver.

l         Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

Technology parameters:

l         Input Voltage:  5-13V

l         Output voltage :  5-13V

l         Output Current :  0-20A

l         Weight:  80g

l         Size: 122mm*72mm*18mm

l         Working temperature: -20 centigrade to 85 centigrade
