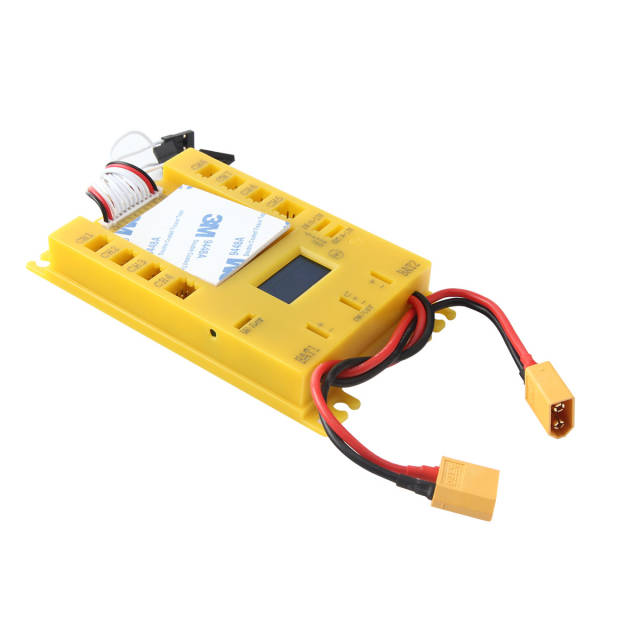

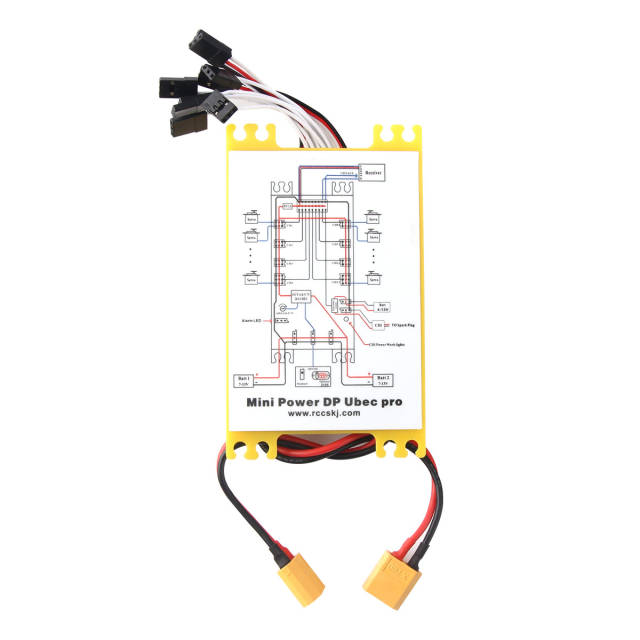

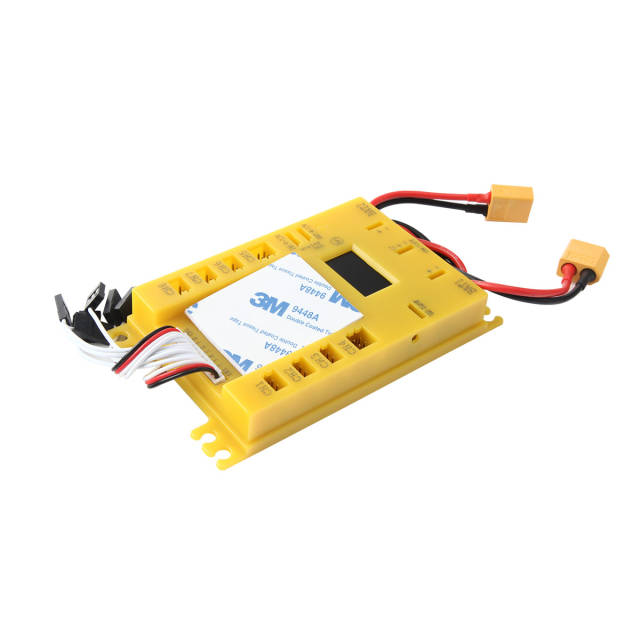

Mini Power DP UBEC 4.8-9.7V Servo Section Board with Dual Power Input Wire 4105#

Sold:7
Price:
    Please select the information you wantX
Quantity:
-
+
(85 available)
Shipping Cost:
to
Estimated Delivery Time:
Please select the country you want to ship from
  • Description
  • Reviews
  • Input Voltage:  7-13V
  • Output voltage :  4.8-9 .7 V (factory voltage is 5.2V)
  • Output Current :  0-20A (Max: 30A)
  • Weight:  80g
  • Size: 122mm*72mm*18mm
  • Working temperature: -20℃ to 85℃
Features
  • Dual power inputs effectively improve supply reliability.
  • Built-in electronic switch, compared with the conventional mechanical switch has higher security and stability.
  • HD OLED display real-time display battery voltage input, the receiver operating voltage, operating voltage servos, CDI supply battery voltage, a single flight time, total flight time and other information.
  • You can freely set the alarm input battery voltage, CDI-powered battery alarm voltage value (alarm value range :4-12V, use the tips alarm buzzer and LED)
  • 9-channel inputs, 16 servo output (1 of 2), Article 9 channel control CDI flameout switch.
  • Built-CDI remote flameout switch, making flying safer.
  • Built-20ABec (Max: 30A), providing ample work for the servo currents.
  • 4.8-9.7V output voltage, to adapt to a variety of high and low voltage actuator.
  • Independent 5V linear regulator which provide a separate pure working power supply to the receiver.
  • Dedicated receiver placement, to avoid accidental bombing has resulted in damage to the receiver.

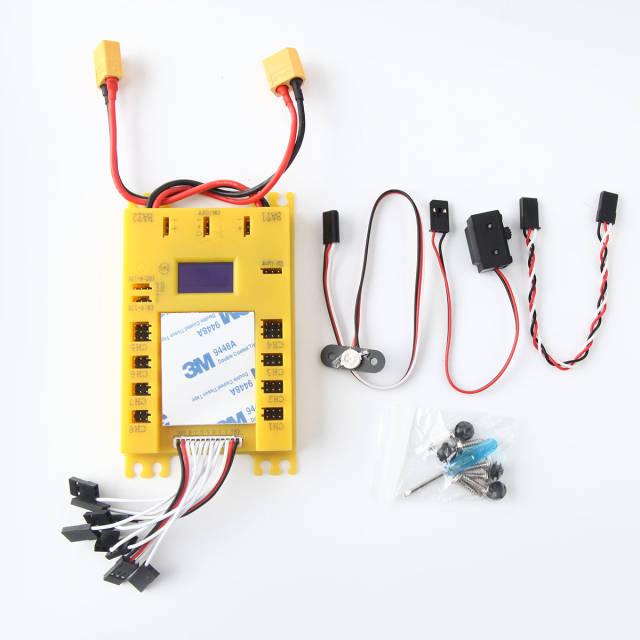

Package include
  • 1pc * UBEC 4.8-9.7V Servo Section Board
