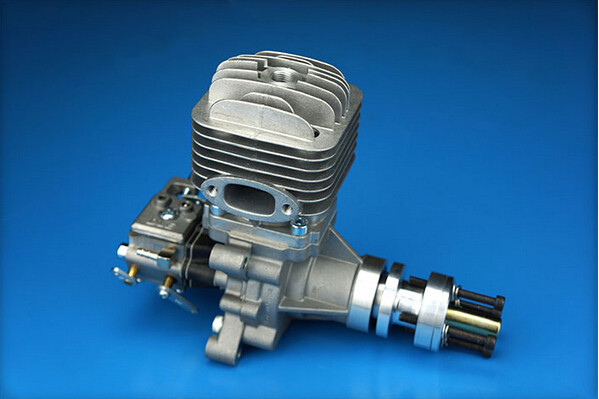

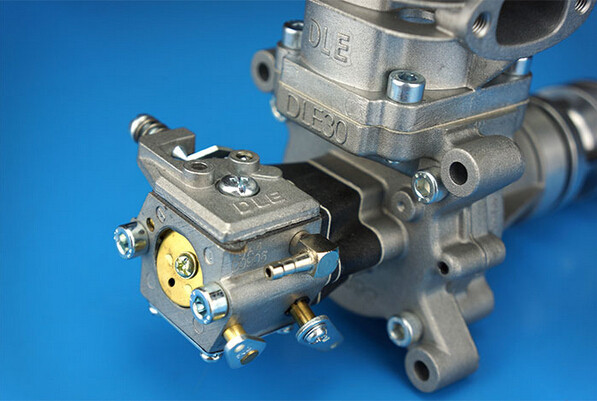

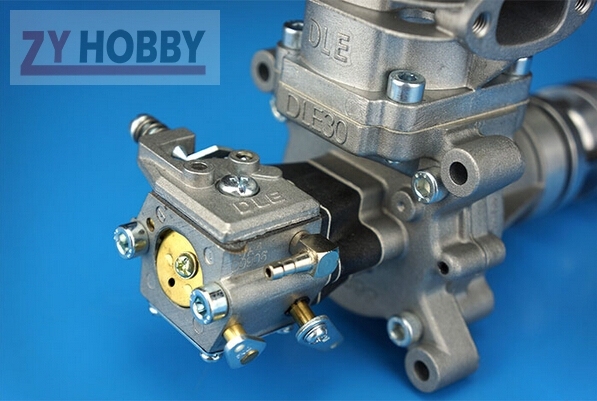

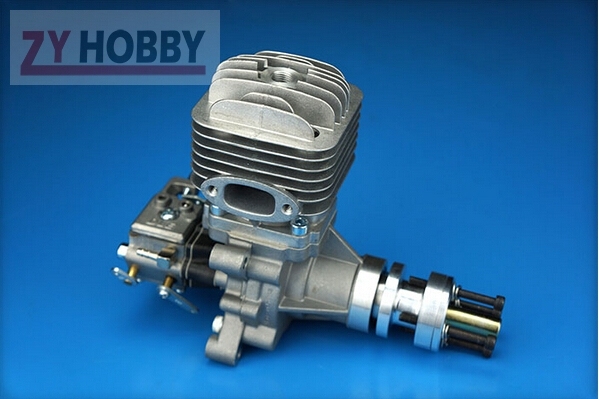

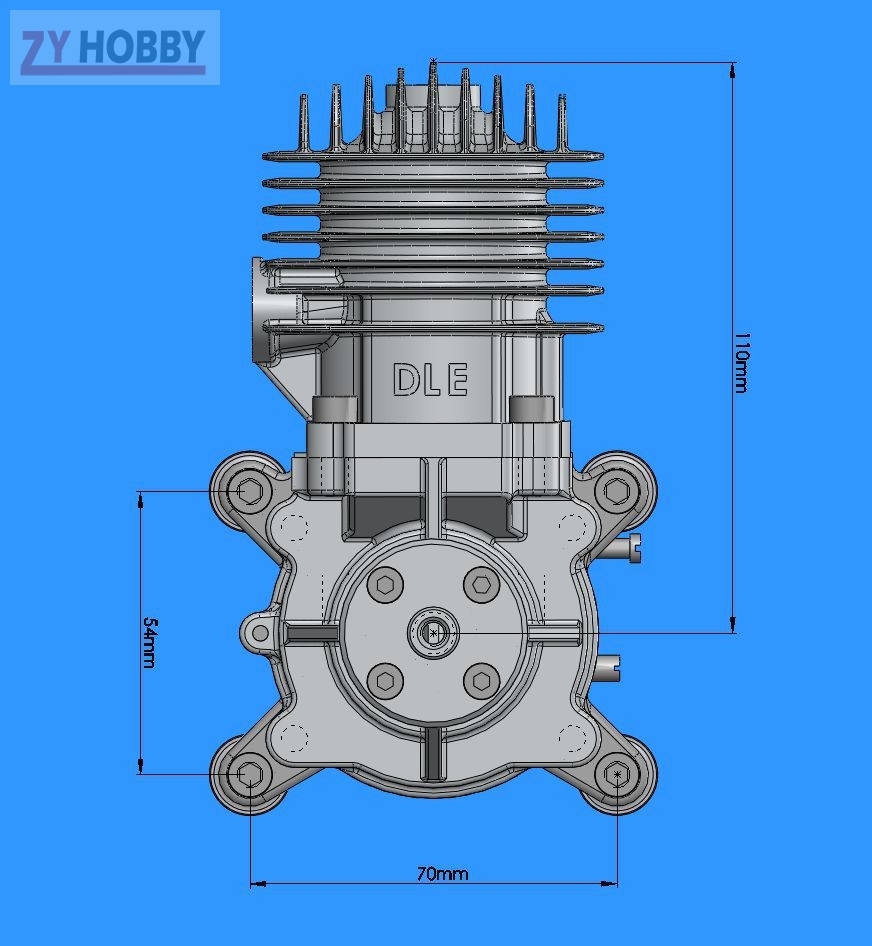

DLE30 Engine

SKU: DLE30

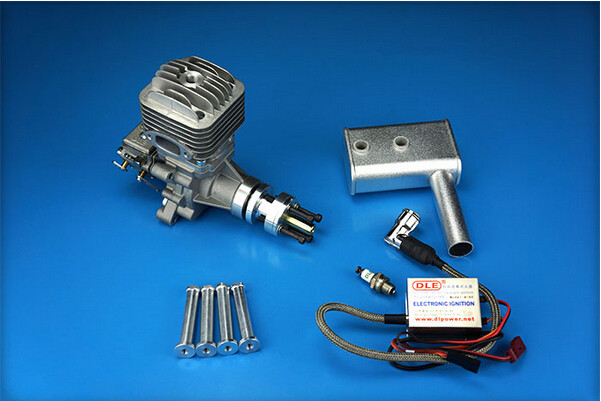

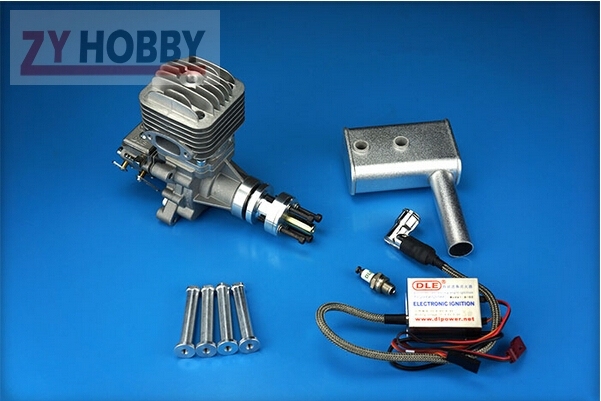

The engine with a muffler and Ignition.
0.0 (0 Reviews)
4 Sold
$0.00 $329.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • DLE30 Engine
  • DLE30 Engine
  • DLE30 Engine
  • DLE30 Engine
  • DLE30 Engine
  • Description

New DLE Gasoline Engine DLE30 30cc For RC Model Airplane



Features:

This engine is not toy. For your own safety, please read the manual carefully before operation. DLE is not responsible for all injuries result from the use.

Before every use, check the engine assembly, propeller and airframe carefully for loose screws and nuts. (Loctite242,243) is strongly recommended on all the screws.

During the break-in process, engine must running with shock absorber installed. Or the engine will be seriously damaged by vibration.

Always stand clear of and behind the propeller; never allow anyone including yourself, to be in front of or to the sides of the propeller when starting or running the engine. Anyone near the engine should wear protective eyewear. Do not wear loose clothing near the engine or propeller.



SPECIFICATIONS:

Performance:43.7HP/8500rpm

Idle Speed: 1600 rpm/min

8.5Kg Static Thrust / 100 meters Altitude

7.5Kg Static Thrust / 1800 meters Altitude

The specification of the aircraft propeller:18×8,18×10,19×8,20×8,

the type of the sparking plug :NGK CM6



Parameter:

Exhaust Amount :

30.5cm3

diameter × stroke :

36mm×30mm

Ratio of compression:

7.6:1

Ratio of lubricating capacity :

30: 1

Weight: Main engine:

920g

Exhaust pipe:

60g

Ignition equipment:

120g

Ignition volt:

4.8V-8.4V
