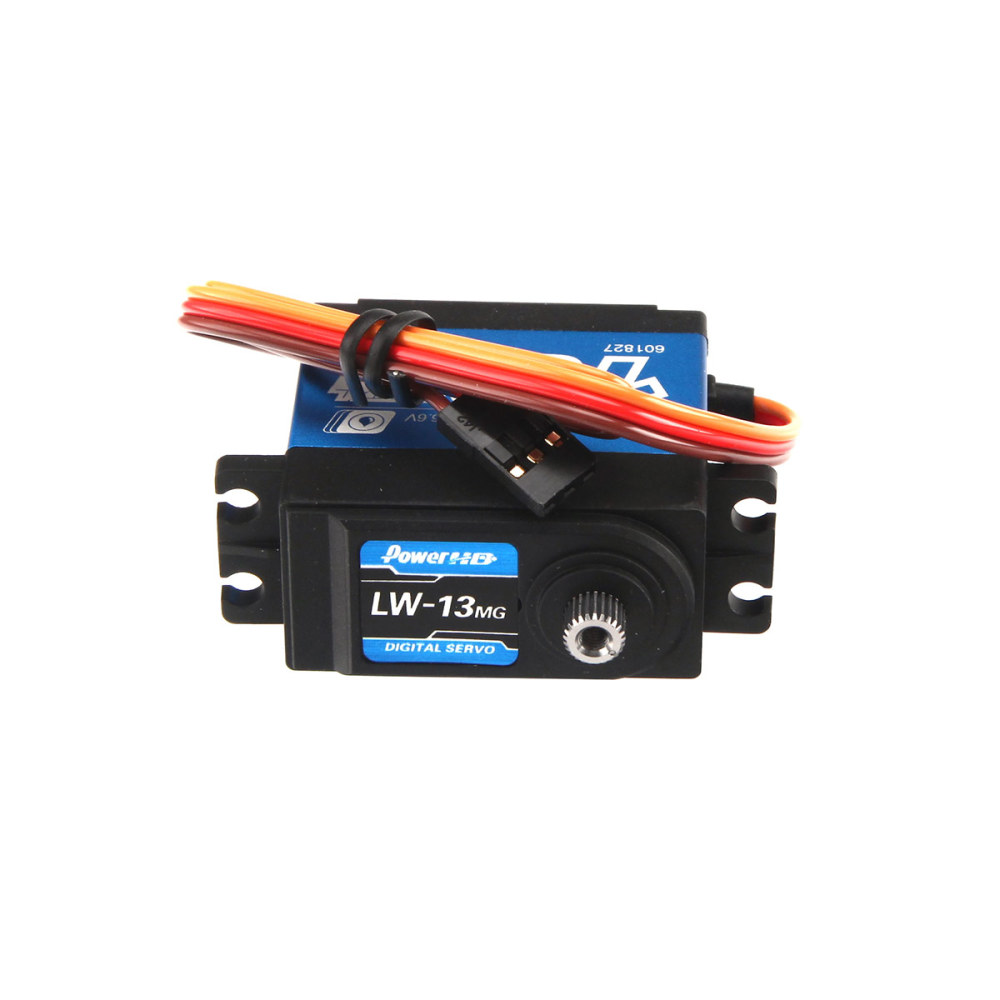

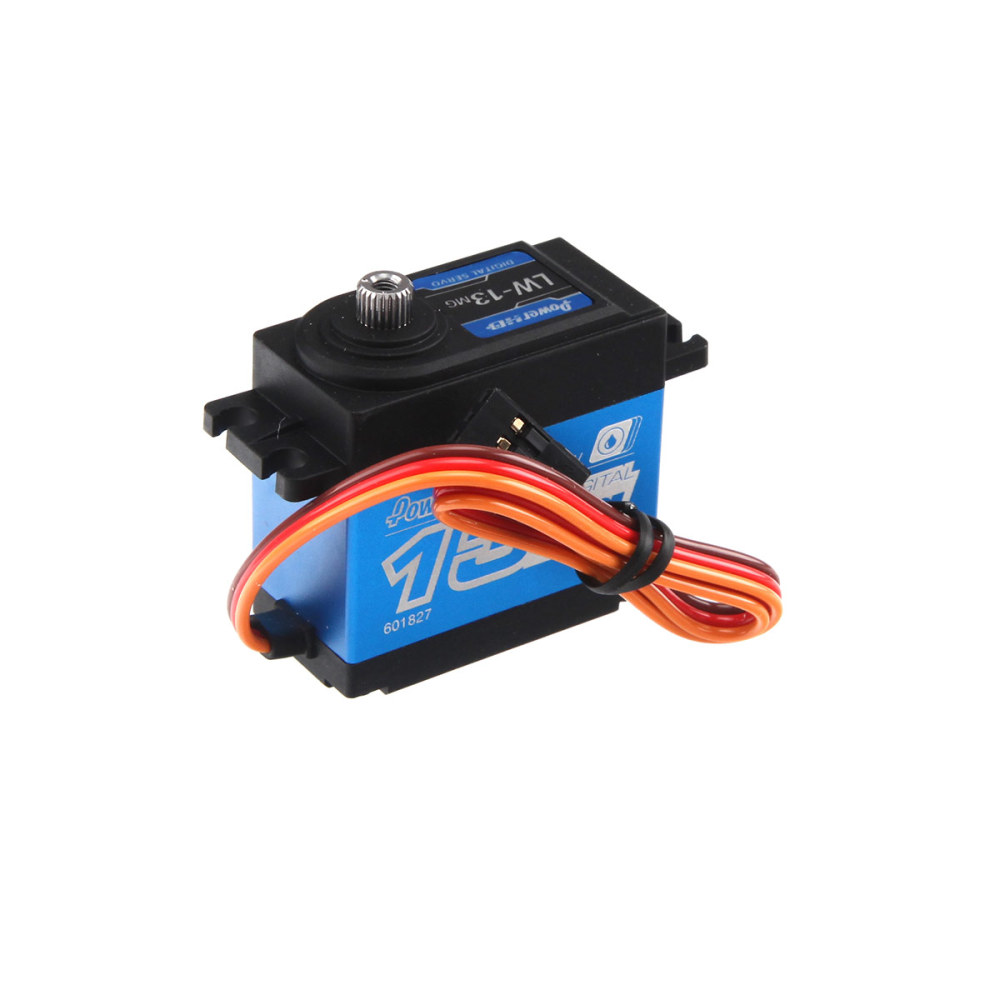

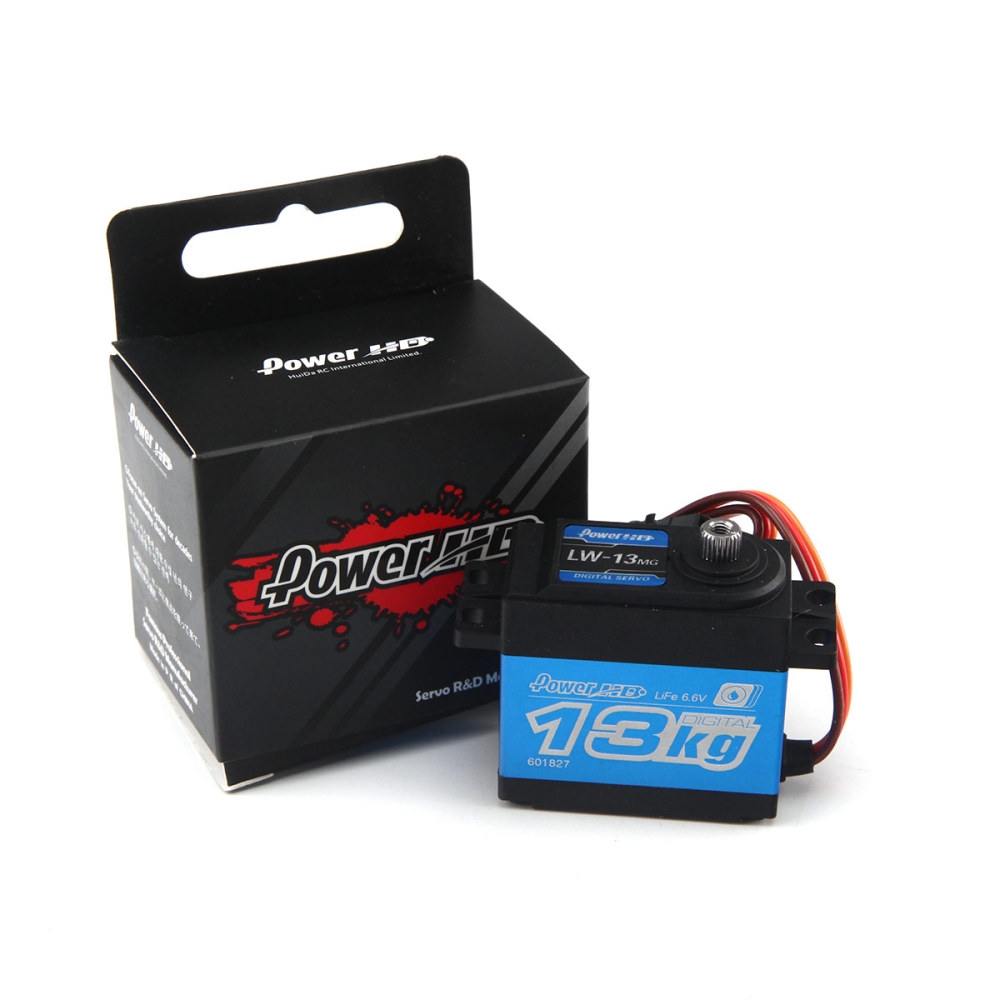

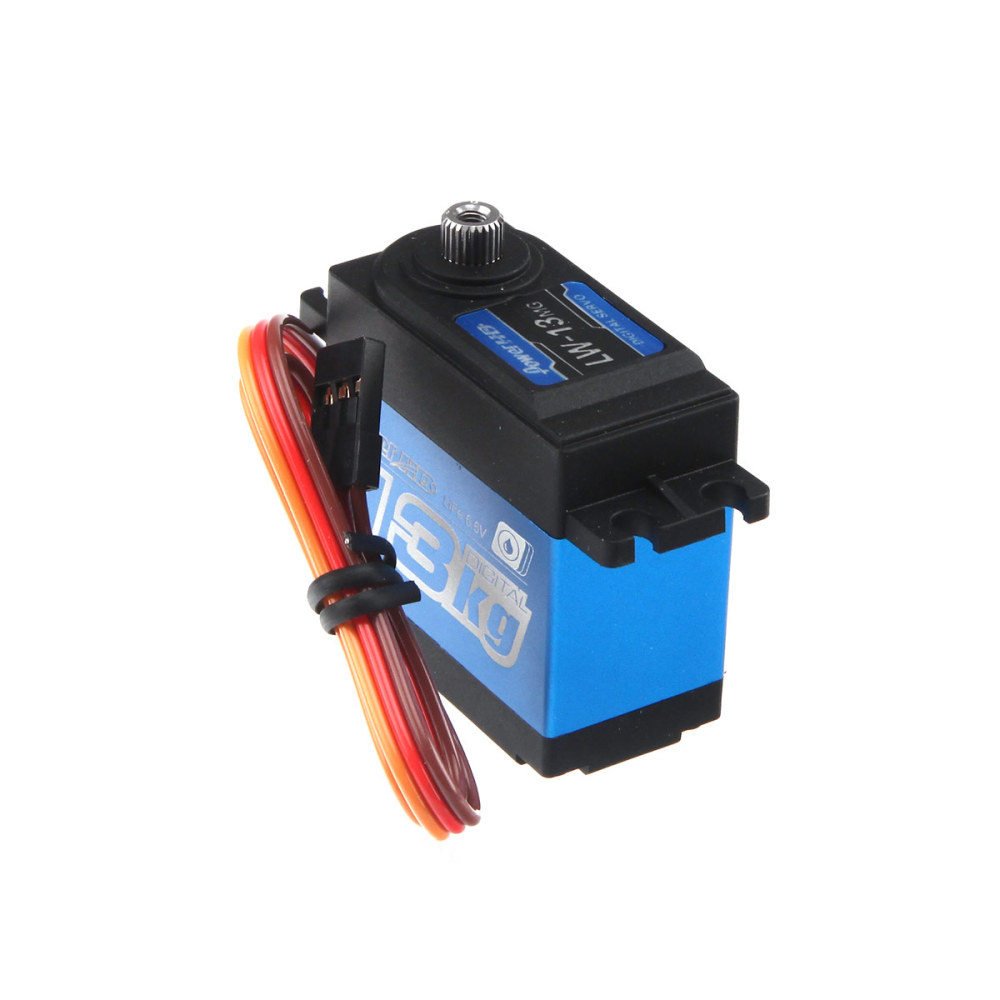

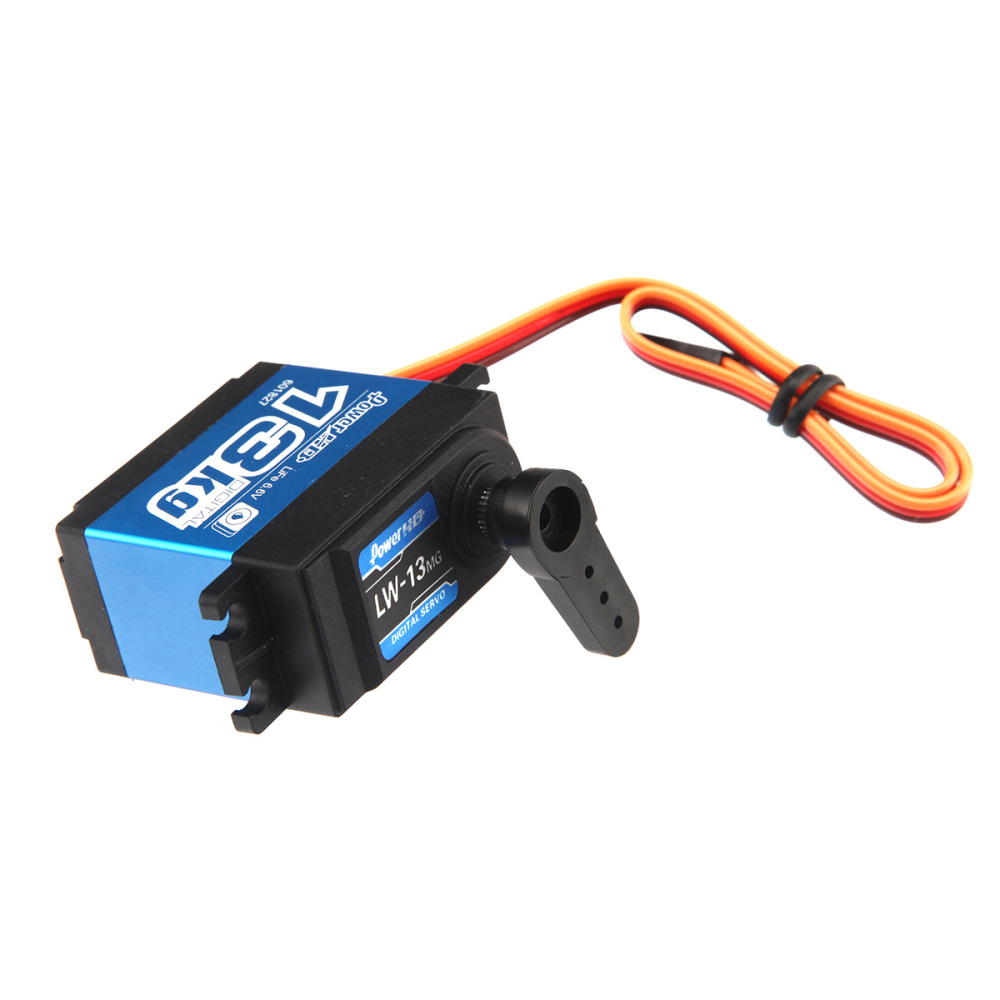

PowerHD LW-13MG - waterproof standard Servo

Specification

• Supply voltage: from 4.8 V to 6.6 V
• Range of motion: from 0 ° to 165 °
• Type: digital
• Working temperature: from -10 °C to 50 °C
• Two angular contact
• Stars: copper and aluminum
• Motor: DC
• Management:
  • The control signal frequency: 333 Hz
  • Neutral position: 1500 µs
  • Turn clockwise:
    1500 -> 2000 µs
  • The maximum pulse range: 800 - 2200 µs
• Connector: standard JST connector
• Cable length: approx. 170 mm
• Dimensions: 40,7 x 20.5 x 37.5 mm
• Weight: 60 g

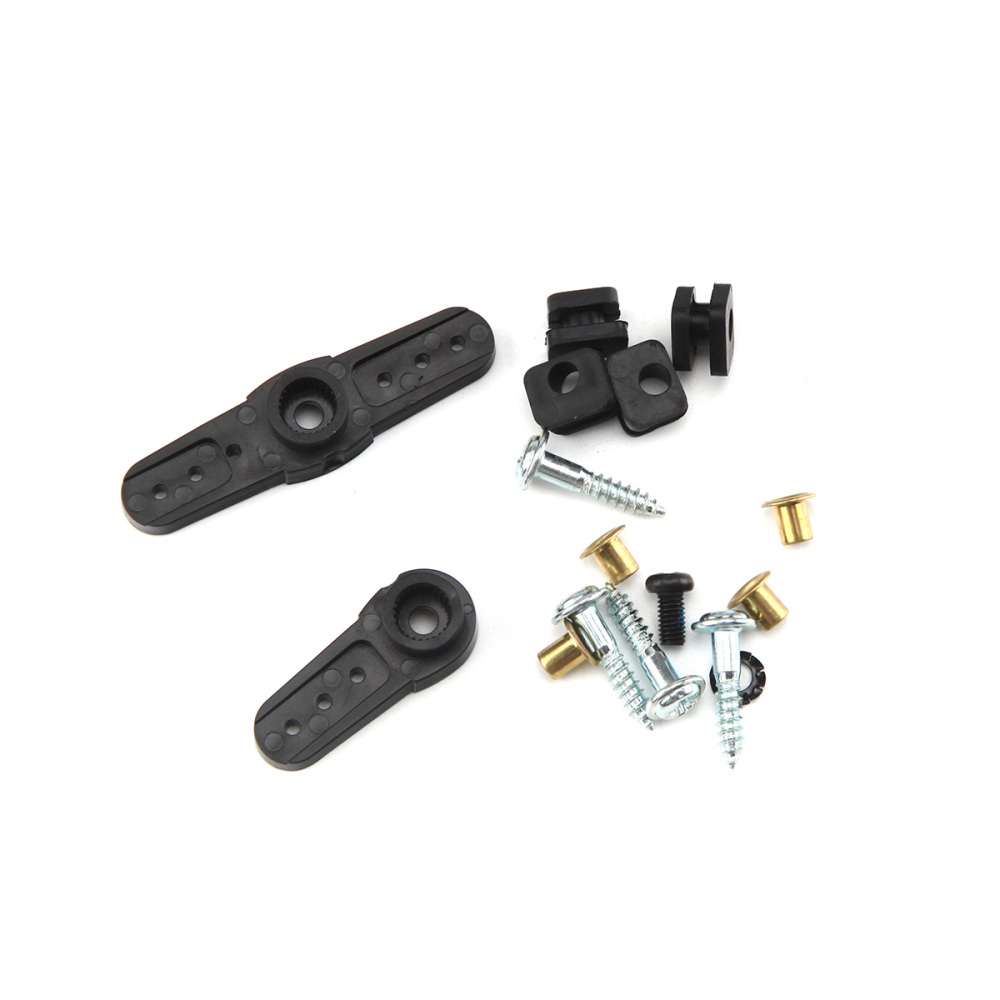

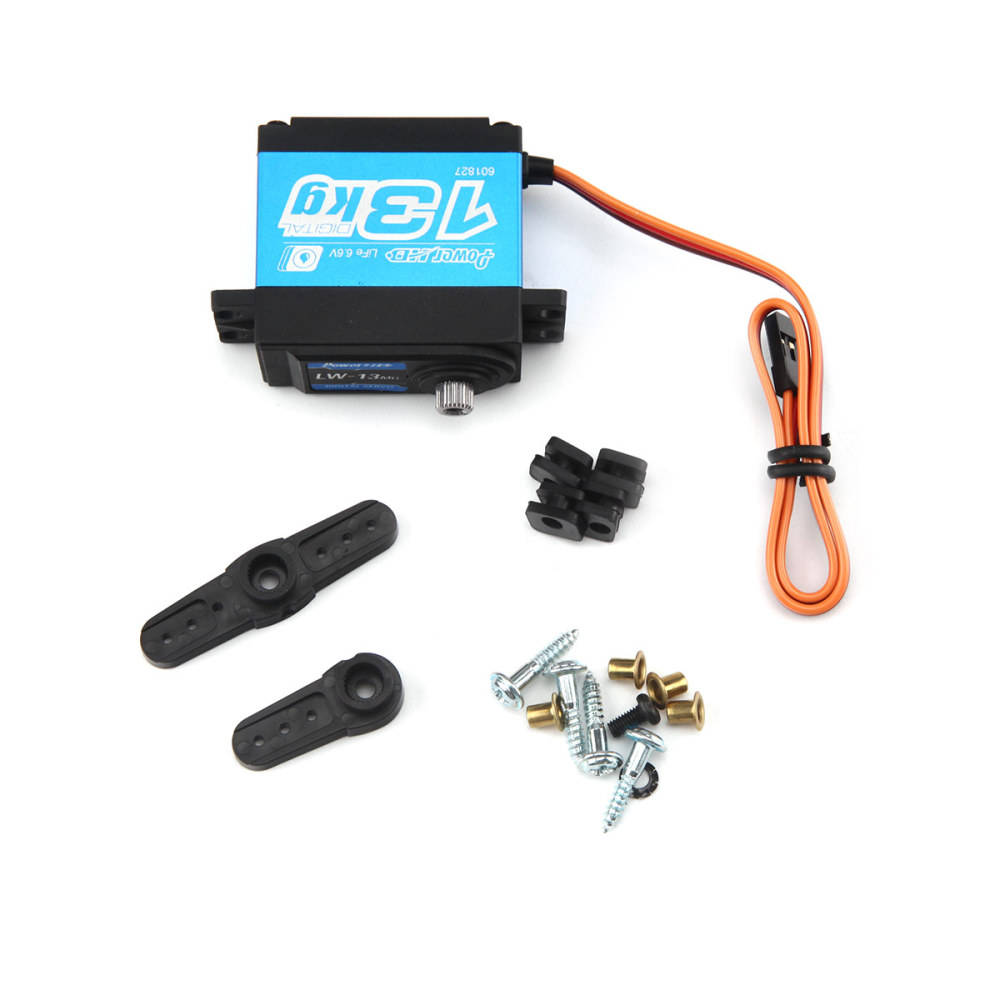

• Complete set of servo horns, washers and screws

Settings for 4.8 V

• Torque: 10.5 kg * cm
• Speed: 0.15 s/60°
• Current consumption at rest: 4 mA
• Current consumption without load: 400 mA
• Current consumption maximum: 2480 has

Settings for 6.6 V

• Torque: 13 kg * cm
• Speed: 0.15 s/60°
• Current consumption in idle state: 5 mA
• Current consumption without load: 500 mA
• Current consumption maximum: 2710 has
