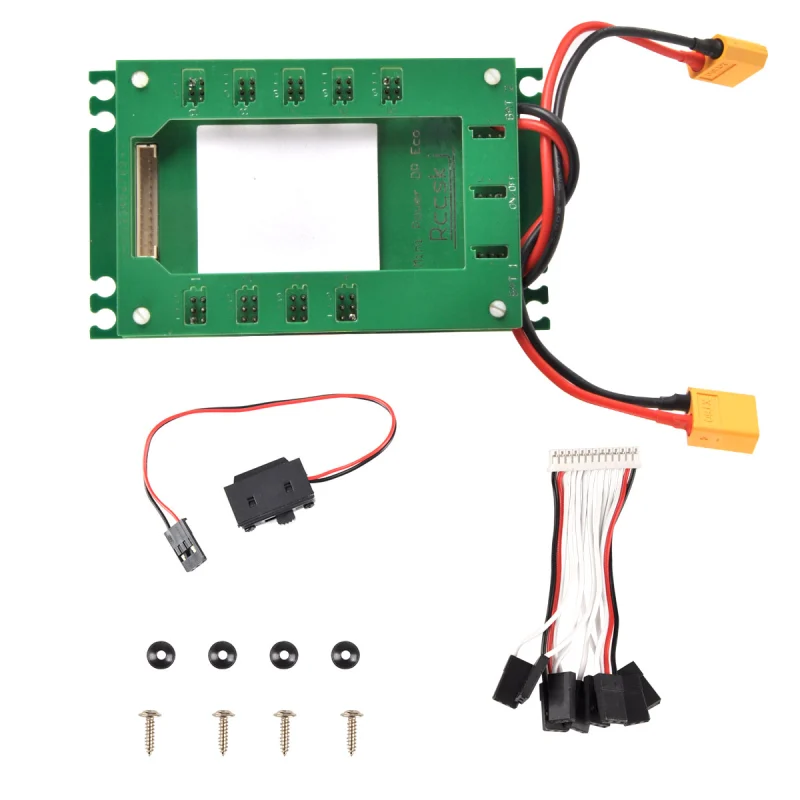

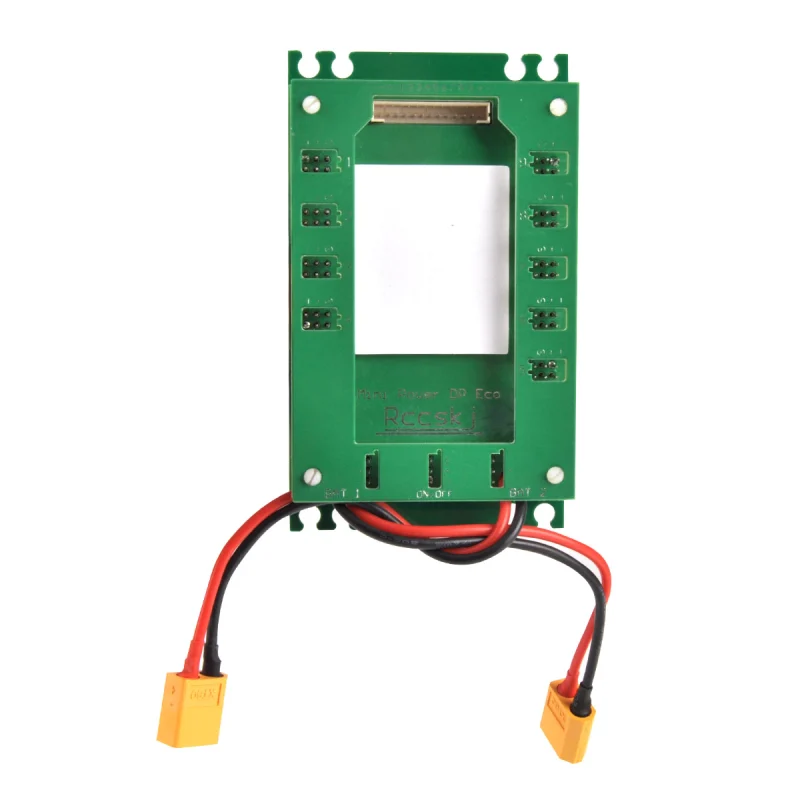

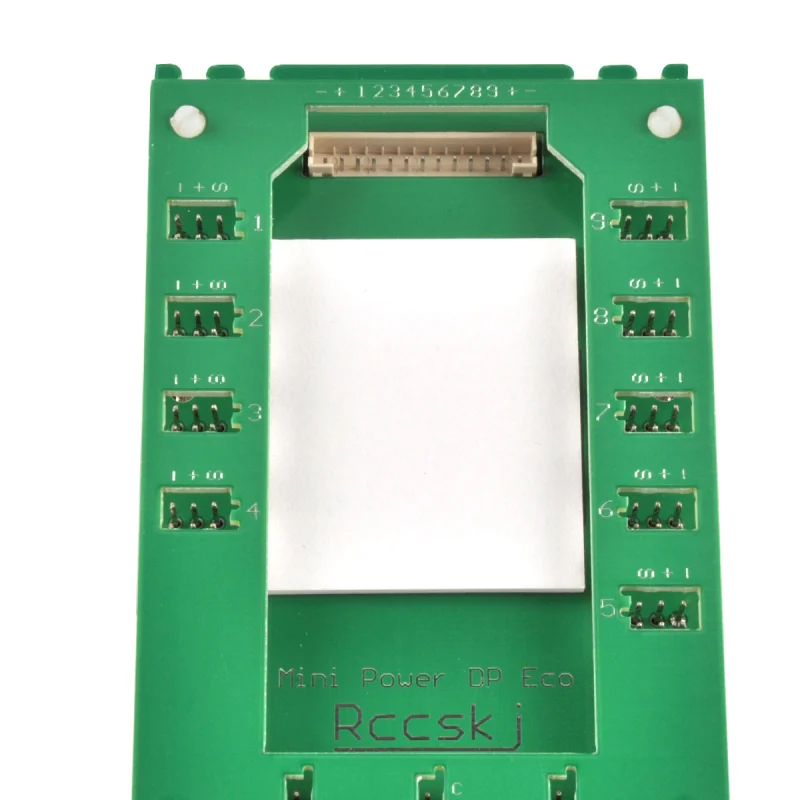

Green Mini Servo Section Board w/ Dual Power Input and Switch

Name: Green Mini Servo Section Board w/ Dual Power Input and Switch
Brand: ZYHOBBY
SKU: E2101
Price: 38.59 USD
Availability: InStock
Rating: 4.5 (2 reviews)

SKU: E2101

Working electricity:0A-30A
Working voltage: 4.8V-12.6V
Volume:116mm(long)*68mm(wide)*13mm(height)

4.5 (2 Reviews)

9 Sold

$38.59

Received successfully

Coupon Code

CONTINUE SHOPPING

Add to Favorites (0)

Description

Green Mini Distribution Board E2101 Specification:

working electricity:0A-30A
Working voltage: 4.8V-12.6V
Volume:116mm(long)*68mm(wide)*13mm(height)
Weight: 70g
Working temperature:-20℃ to 85℃
SUITABLE FOR AIRPLANES.

Feartures

Three leds display the distribution board’s working states
Eight channels for input, and sixteen channels for output.(every one channel input with two channels output
Compared with the traditional mechanical switch integrated electronic switch has a higher security and stability.
Input / output power is communicated directly,so the input voltage equal to the steering gear and receiver power supply voltage, simply use the different voltage values of the battery can be adapted to a variety of high and low voltage actuator and receiver.
Special place is designed for receiver to avoid the accidental from bombing damage in receiver.
Double power input to improve the stability of power supply, which can effectively avoids the accident cause by poor contact of a single block of power batteries.
