RCGF 15CCBM
Glow size; Economy & Powerful
Glow power isn\'t the only option anymore. The RCGF 15CC not only fills the displacement gap, but includes a beam mount to make the glow-to-gasoline
upgrade drop-in fast and easy. A rear pumper carb simplifies installation and adjustment.
RCGF 15cc is starting ease and with top performance ,it\'s attractive alternative to glow.and a solid buy for value and performance.

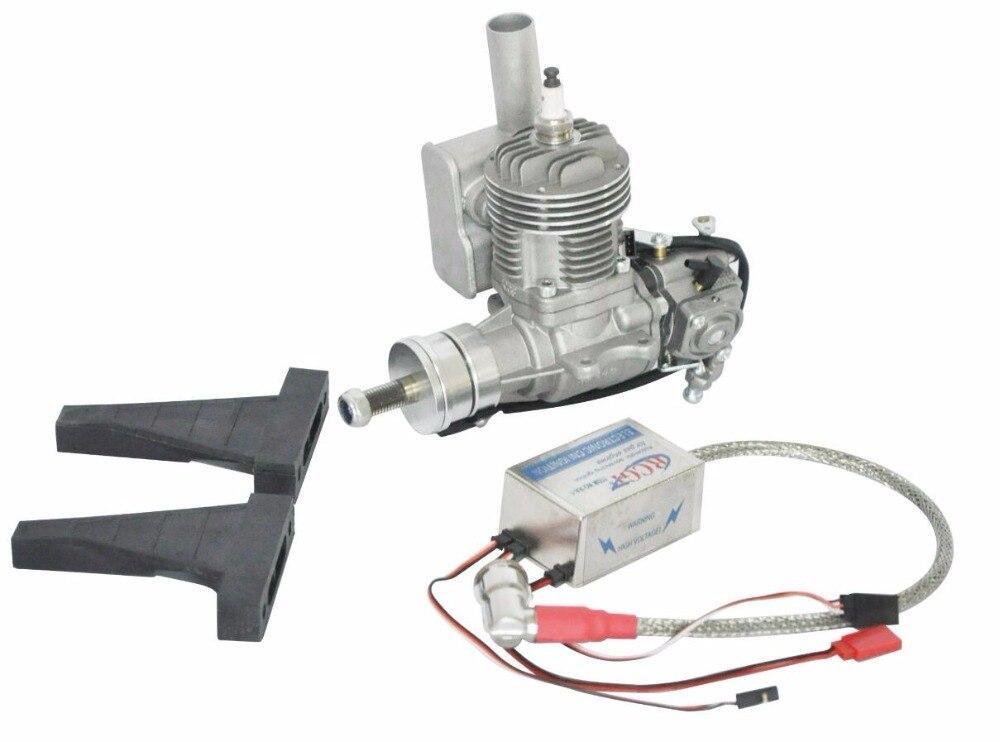

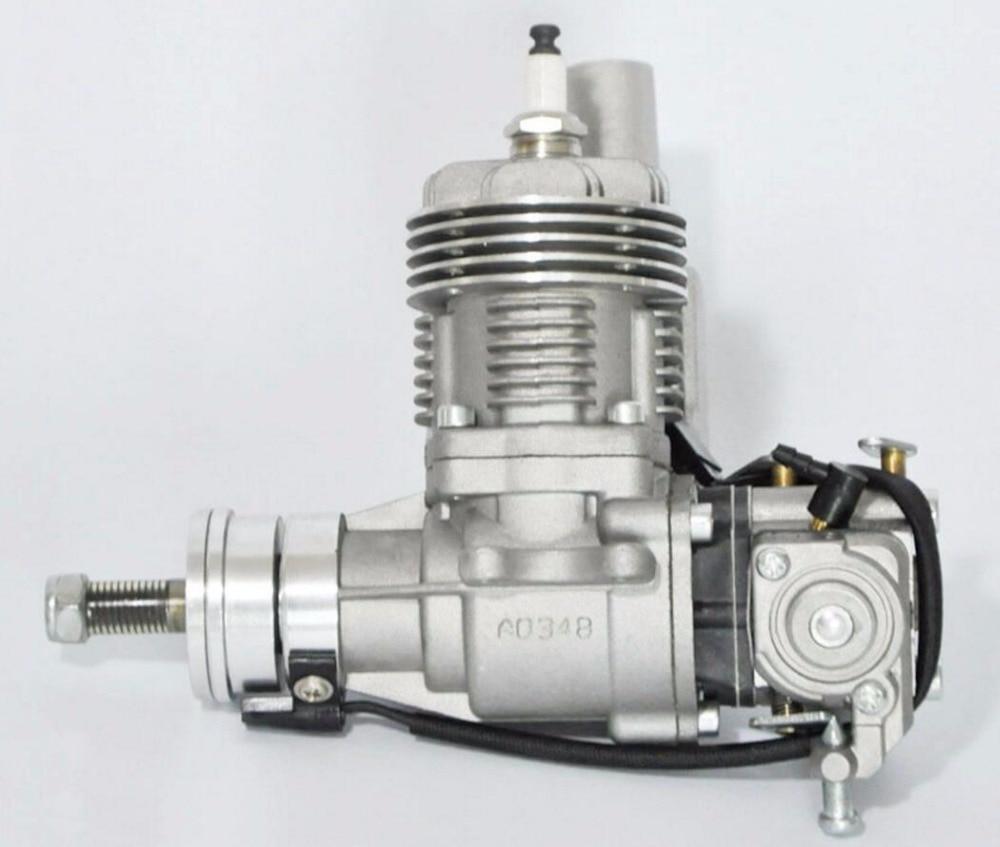

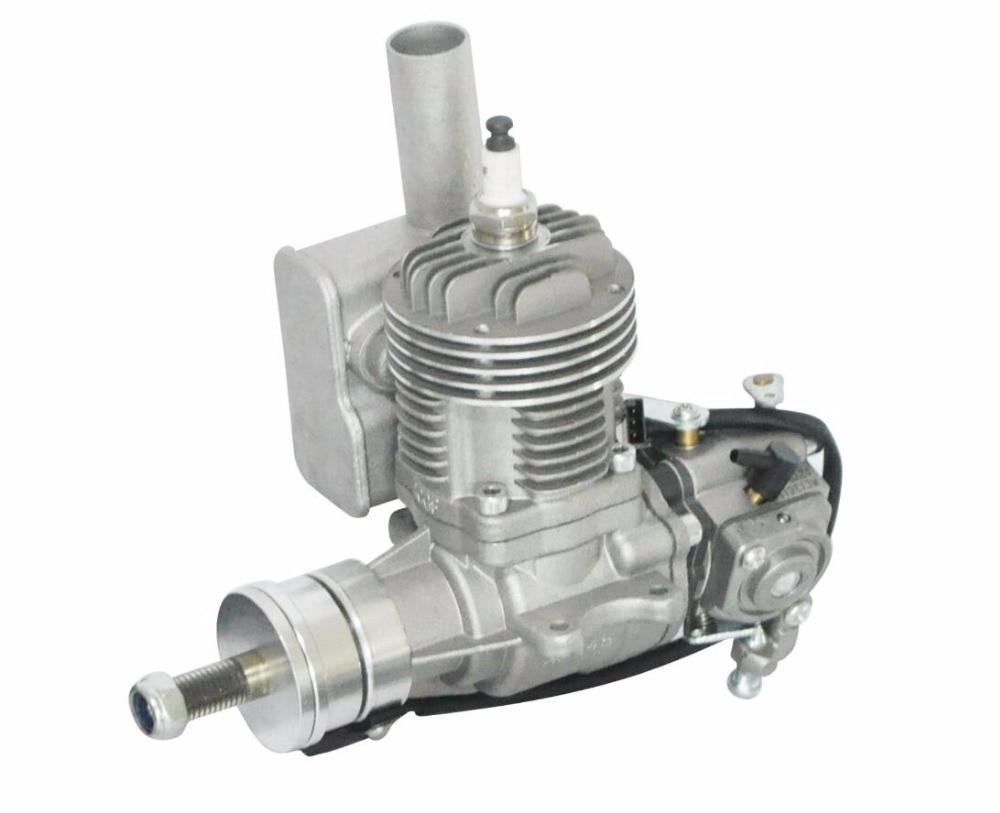

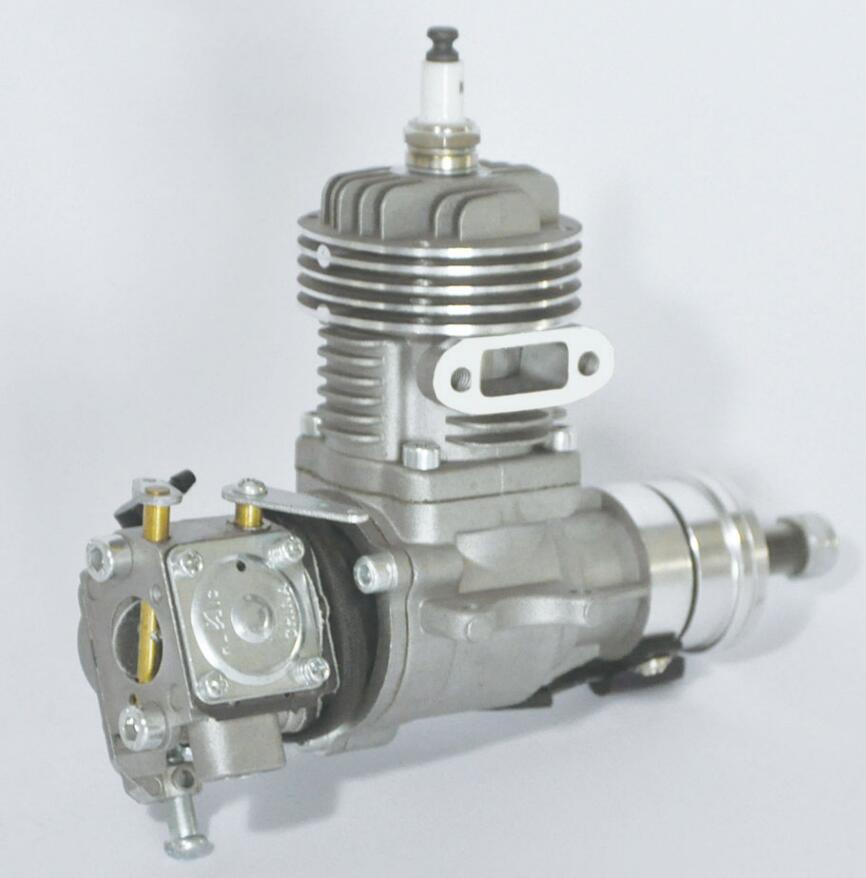

RCGF 15cc (Beam Mount)
Parameter:
- Type : 2 cycle piston valve type gasoline engine for airplane
- Displacement (cc) : 15cc (.91 cu in)
- Bore x Stroke (mm): 1.3 in (32mm)*0.8 in (19.6mm)
- Carburetor : RCGF
- Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
- Power supply: 4.8-8.4V
- Maximum Output : 2.4 hp/1.76KW
- Requires: Gasoline, 2-cycle oil, ignition battery & propeller
- speed rang : 1500-15000rpm
- Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 (recommended : 30:1)
- (90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
- Lubrication Oil : 2 cycle engine oil
- Propeller : 15*6 9000 rpm; 13*6 11000rpm (Standard Two leafs prop)
- recommended props :13 x 6, 14 x6,13X8,15X8,15X6
- recommended Airplane: 60 size plane,50 size plane,40 size plane
- Cooling System : Air Cooled

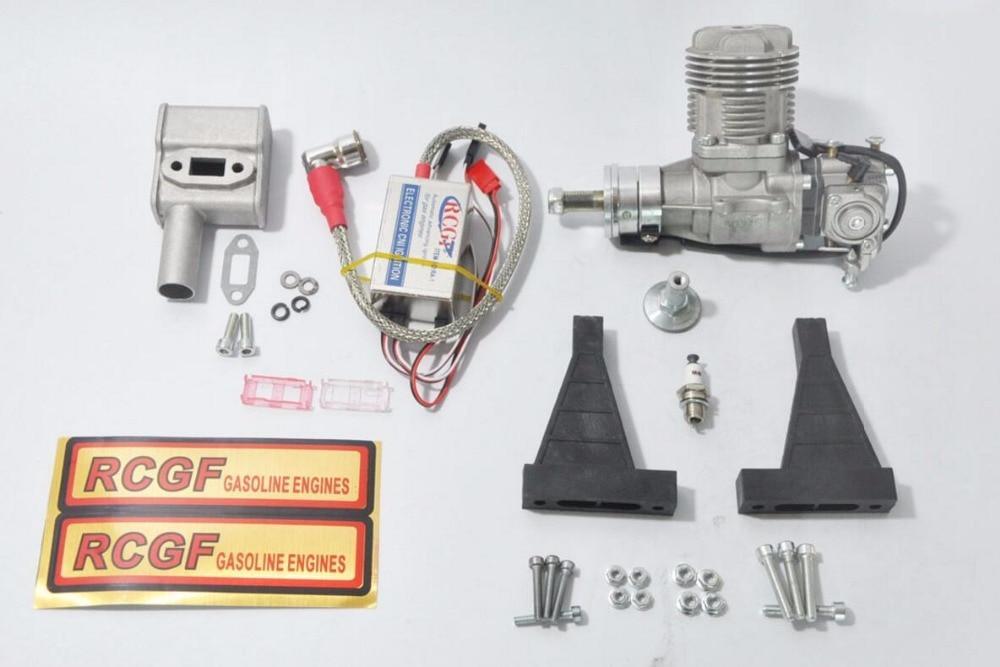

RCGF engine package Includes:
electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.
Weight :
- Engine: 1.31 lb (594 g)
- Muffler: 1.8 oz (51 g)
- Ignition Module: 4.4 oz (125 g)
- Total: Weight: 1.69 lb (770 g)
Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
