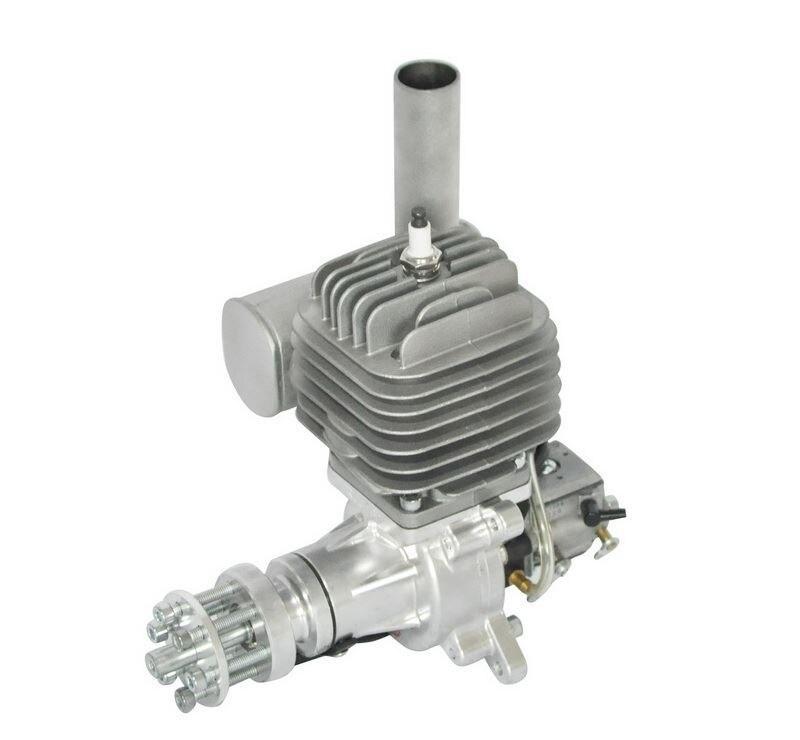

RCGF 60cc Single Cylinder Petrol/Gasoline Engine with Side Exhaust Pipe

60cc Single cylinder
Best power;low weight&CNC  Technology
Innovation is excellence,so, when RCGF added innovations like improved crankshaft bearings, and a better piston/cylinder fit to their engines, The RCGF 60cc low weighs and cranks out over six horsepower from a durable and long-lasting engine.

Parameter:
Type : 2 cycle piston valve type gasoline engine for airplane
Piston displacement Cylinder (cc) : 60cc  (3.66 cu in)
Bore x Stroke (mm): 1.85 in(47mm) x 1.38 in (35mm)
Carburetor : RCGF
Ignition : DC-CDI (Computer Controlled auto advance, electronic ignition system)
Power supply: 4.8-8.4V
Maximum Output :6.0HP /5.1KW
Requires: Gasoline, 2-cycle oil, ignition battery & propeller
speed rang : 1500-8800rpm
Gasoline-Version : Pre-mixed Fuel, 25-40 (Gasoline):1 , Recommend:30:1
(90% high otcane unleaded gasoline, Import gas into carbon fiber installations valves)
Lubrication Oil : 2 cycle engine oil
Propeller : 24X8  6800rpm (Standard Two leafs prop)
Suggested Propellers: 22 x 10, 23 x 8, 23 x 10, 24 x 8
Suggested Break-in Prop: 22X10
Sparking plug: NGK CM6 Type (Cap size 0.018 in.—0.020in.<0.45mm—0.51mm>)
Cooling System : Air Cooled

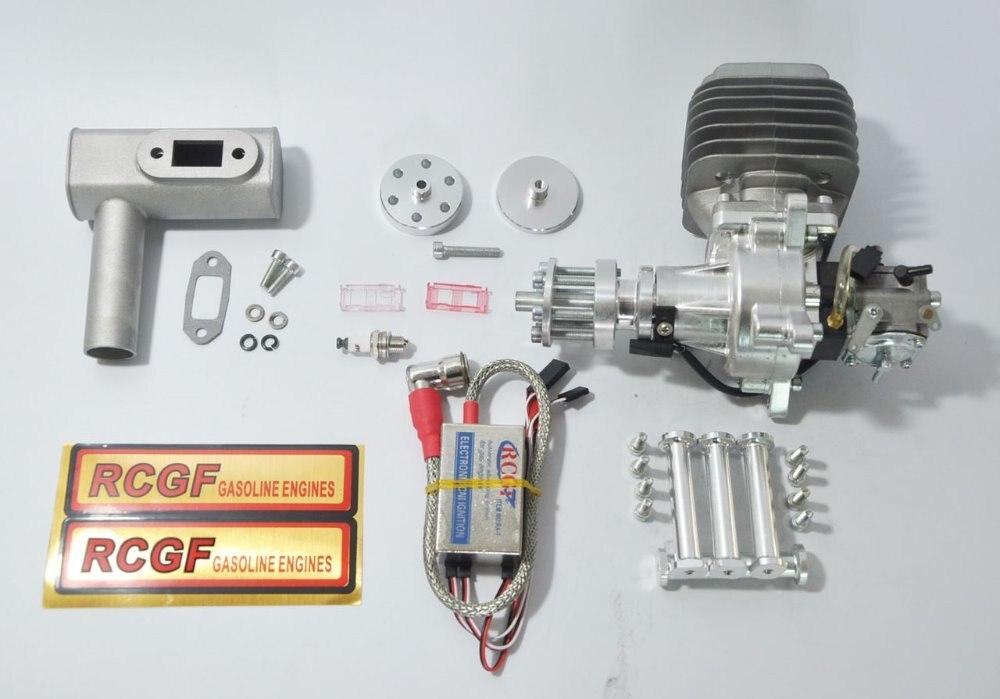

RCGF engine package Includes: electronic CDI ignition, muffler, spark plug, gaskets, bolts, throttle arm extension & manual.

Weight :
Engine: 3.05 lb (1388 g)
Muffler: 3.85 oz (109 g)
Ignition Module: 4.4 oz (125 g)
Total: Weight: 3.57 lb (1622 g)

Technical Data:
Ignition Battery: 4.8-8.4 NiCd or NiMH, 6.6V LiFe or 2S LiPo pack
Gasoline/Oil Mix: 30:1
Replacement Spark Plug: NGK CM6 or equivalent
dle Speed: 1400 rpm/min
Static Thrust:
37.8 lb (17.2 kg) @ 328 ft (100 m) altitude
36.5 lb (16.6 kg) @ 5,900 ft (1800 m) altitude
