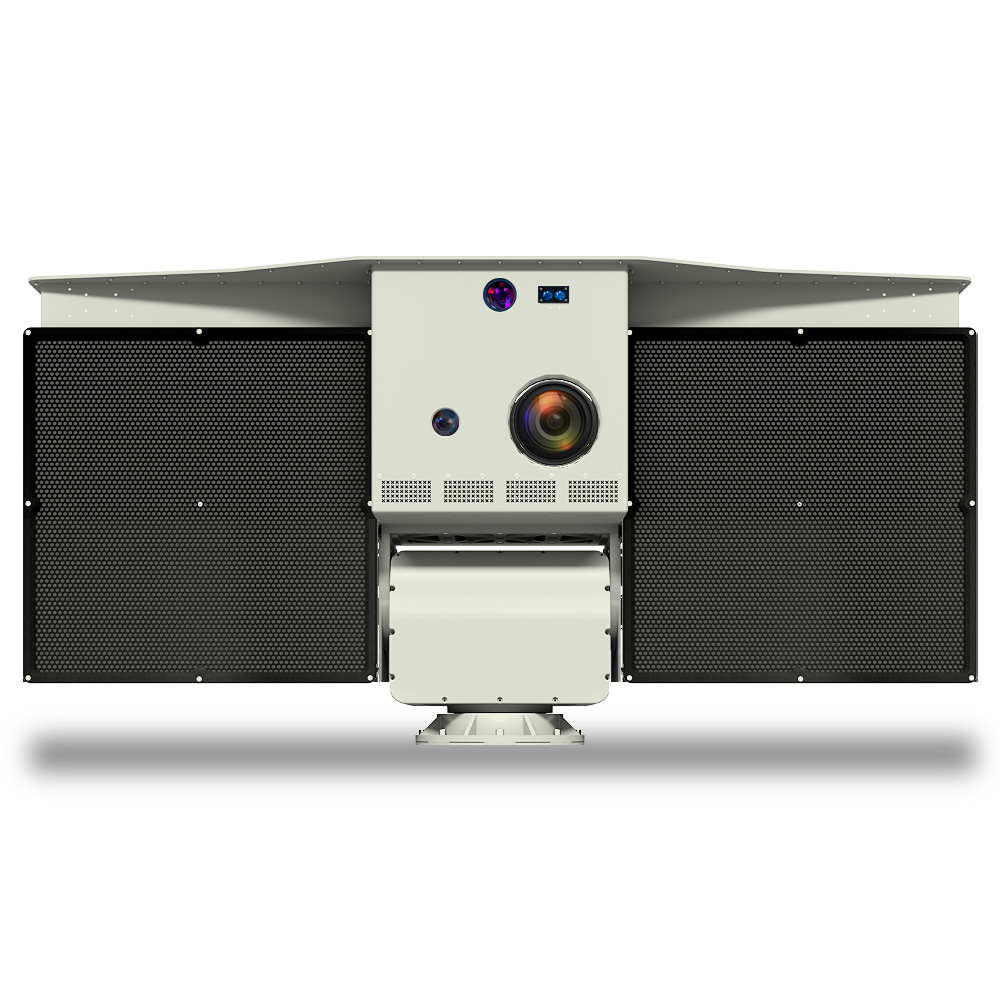

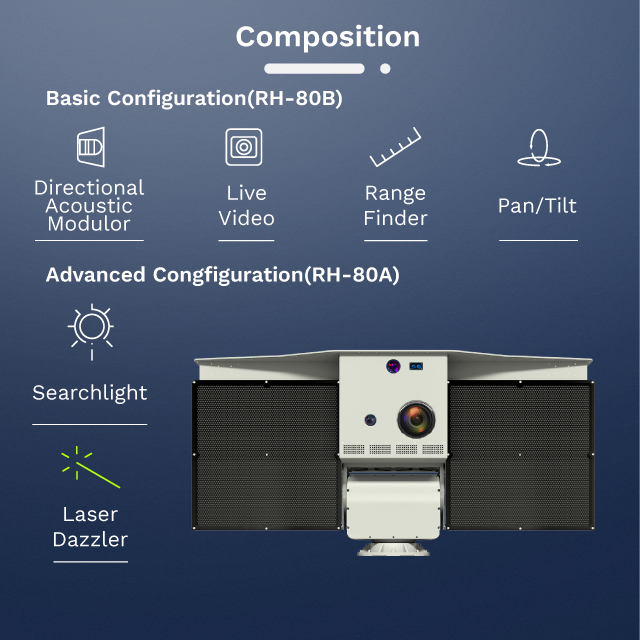

The long range opto-acoustic device consists of directional acoustic array, high power dazzler, searchlight, live video, range finder, pan/tilt and control pad. The device can transmit intelligible voice message to notify illegal intruders. lt also can provide users with a variety of long range warning signals such as noise, light and dazzler. RH-80A supports TCP/IP protocol and can be remotely controlled by the control center. It can be static positioned in different scenarios.
Product Description:
Device Model RH-80A

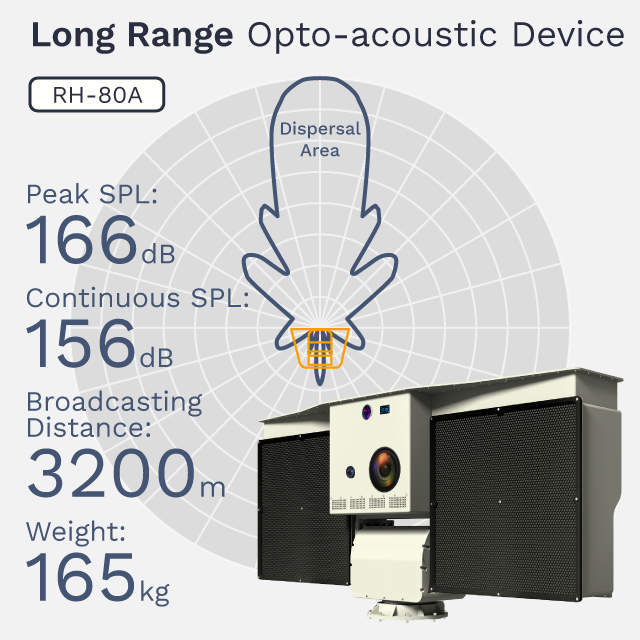

Peak SPL @1m 166dBA
Continuous SPL @1m 156dBA
Project Angle ±15°@2kHz/-3dB
Dispelling Distance@85dB* 1400m
Broadcasting Distance@70dB* 3100m
Laser dazzler 20w
Searchlight Output 60M cd
Searchlight Distance 4000m(3.75Lux)
Camera 4 Million Pixels/32X
Laser Rangefinder 4km vehicle/2km person
Pan/tilt 360°Pan/-45°~45°Tilt
Power Supply 220VAC/24VDC
Remote Control TCP/IP

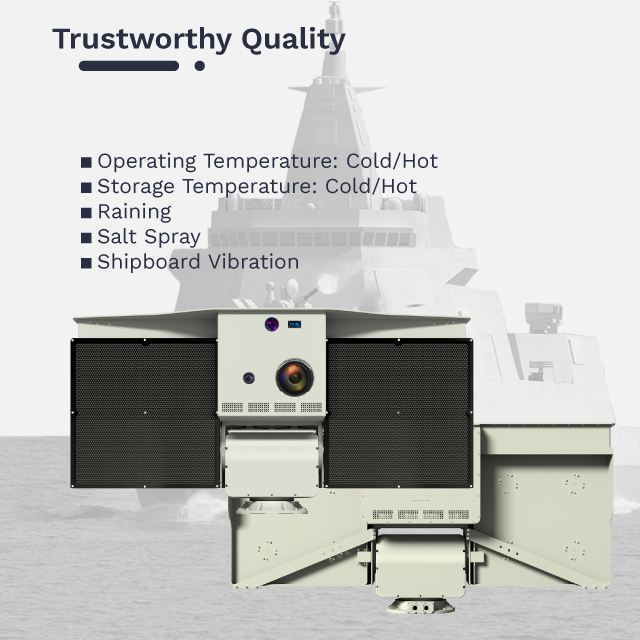

Operating Temperature -40℃~60℃
Ingress Protection IP55
Dimension(WHT/mm) 1734×846×481
Weight(kg) 165
*Empirical calculation based on air attenuation
