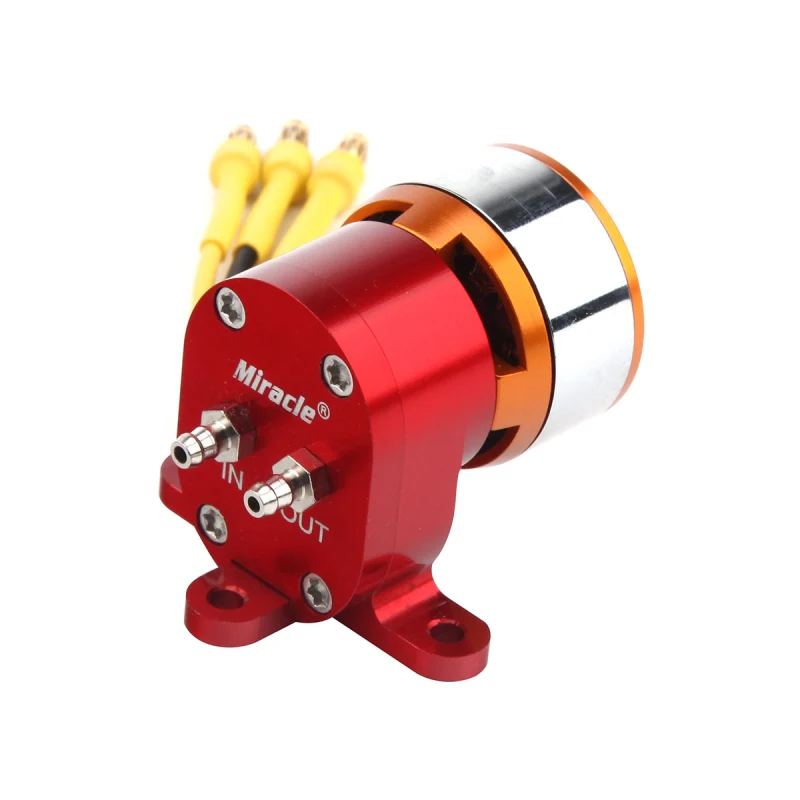

Miracle Smoke Pump with Brushless ESC Red/Blue
- GET $6.00 OFF ON ORDERS OVER $100.00
- GET $20.00 OFF ON ORDERS OVER $300.00
- GET $40.00 OFF ON ORDERS OVER $500.00
Recommended items (need to buy separately):
Battery: 7.2V 6 cell NiMH, 7.4V 2S Li-Po, 6.6V 2 cell A123
Fuel tank: 500-600cc
Instruction Manual for Smoke Pump ESC
1. Switch on transmitter, put the smoke pump channel stick in “closed” position(OFF).
2. Switch on receiver and ESC, you will hear a “beep”, it means the ESC is setting up. You can start to use it.
3.When you switch on receiver and ESC, you hear the circulatory sound: beep…beep…beep beep…beep beep… beep beep beep…beep beep beep…, it means the channel stick is not in the “closed”(OFF) position.Please switch off the transmitter and receiver. Then put the channel stick in the “closed”(OFF) position. Or, put the Reverse switch to the other end to make sure the channel stick is in the “closed”(OFF) position.
4. Switch on the transmitter again, and switch on the ESC.
