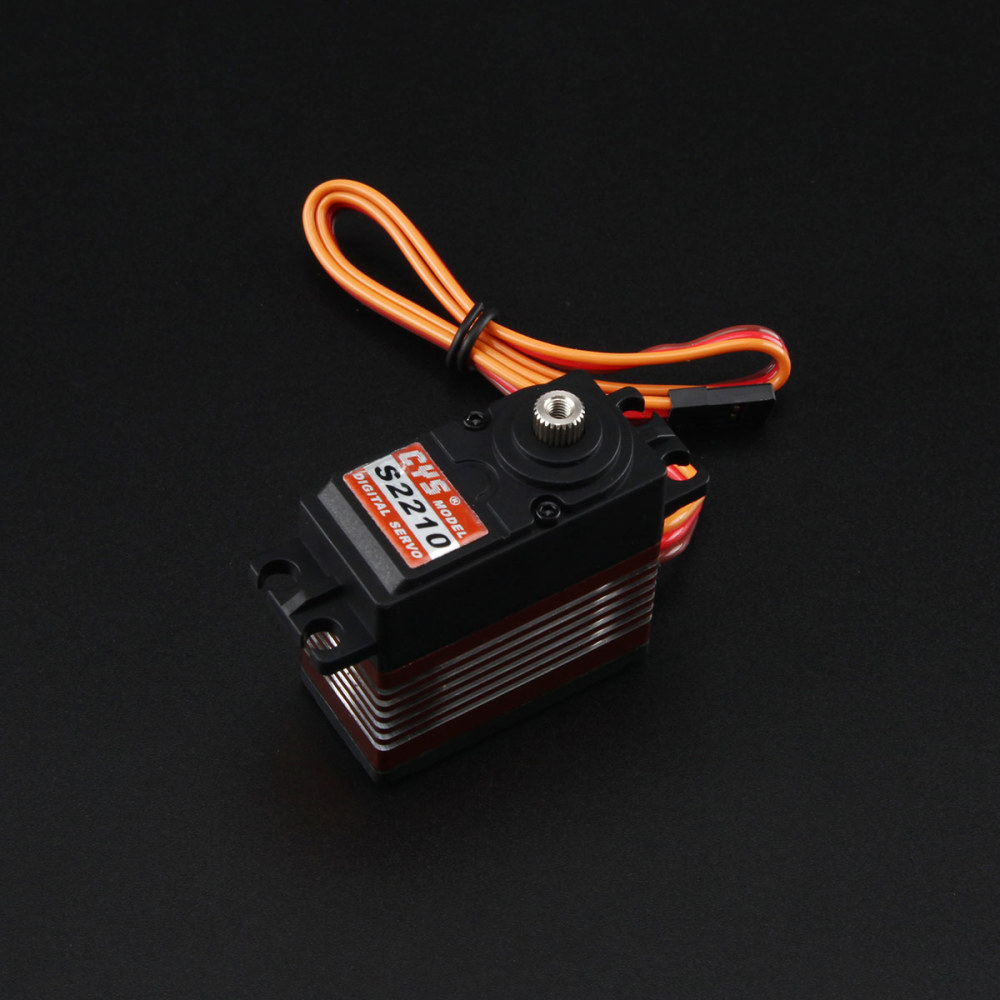

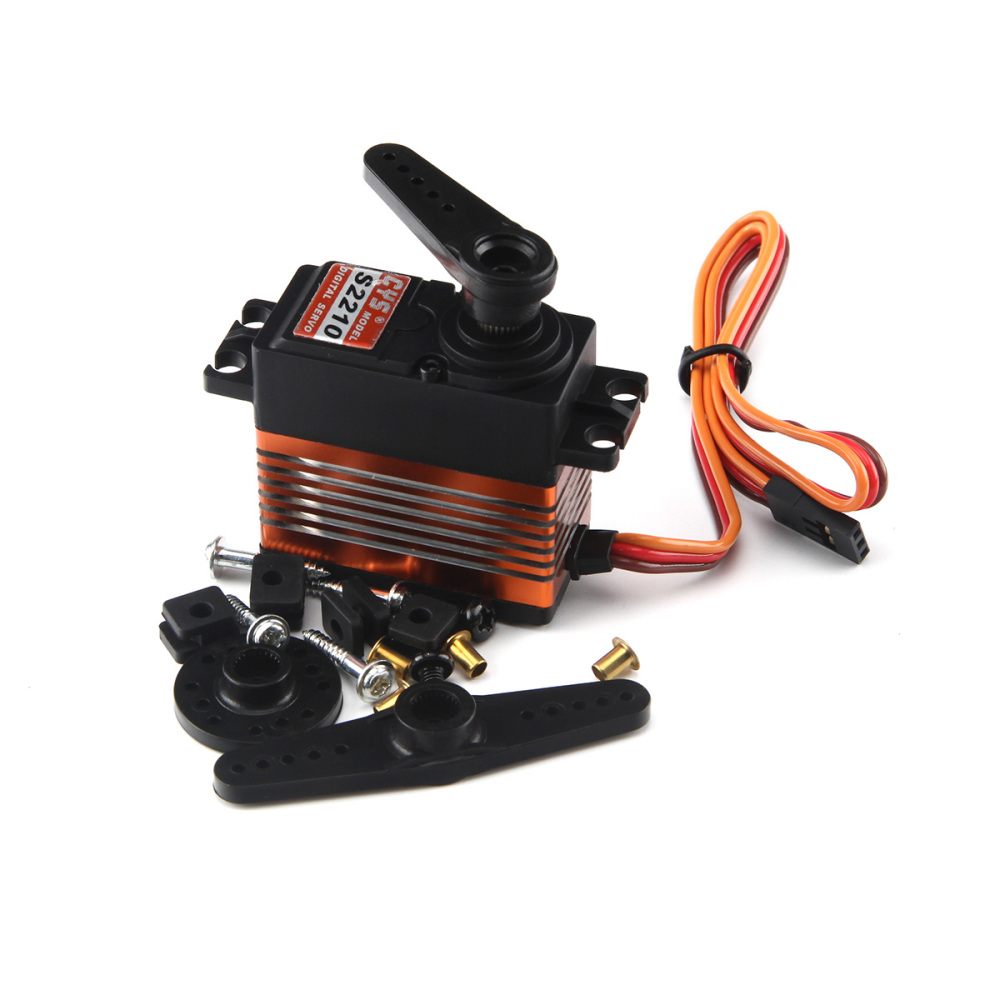

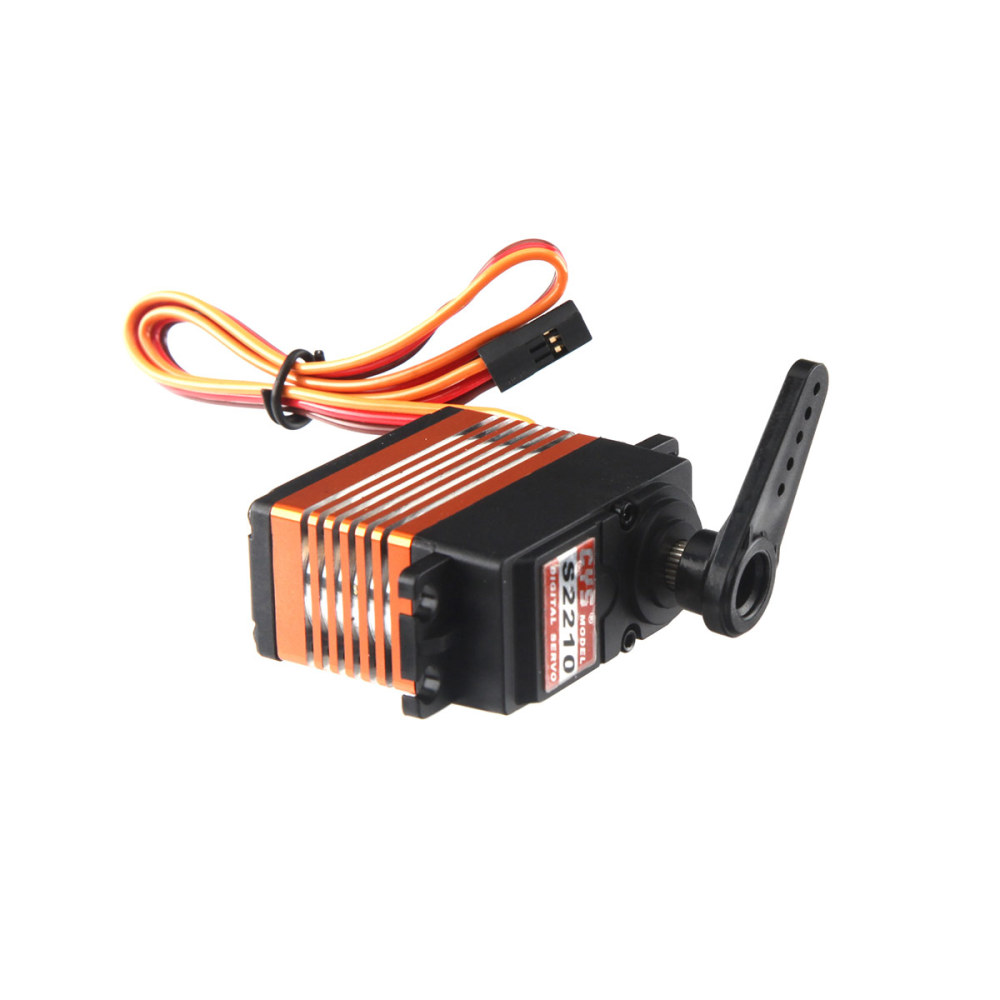

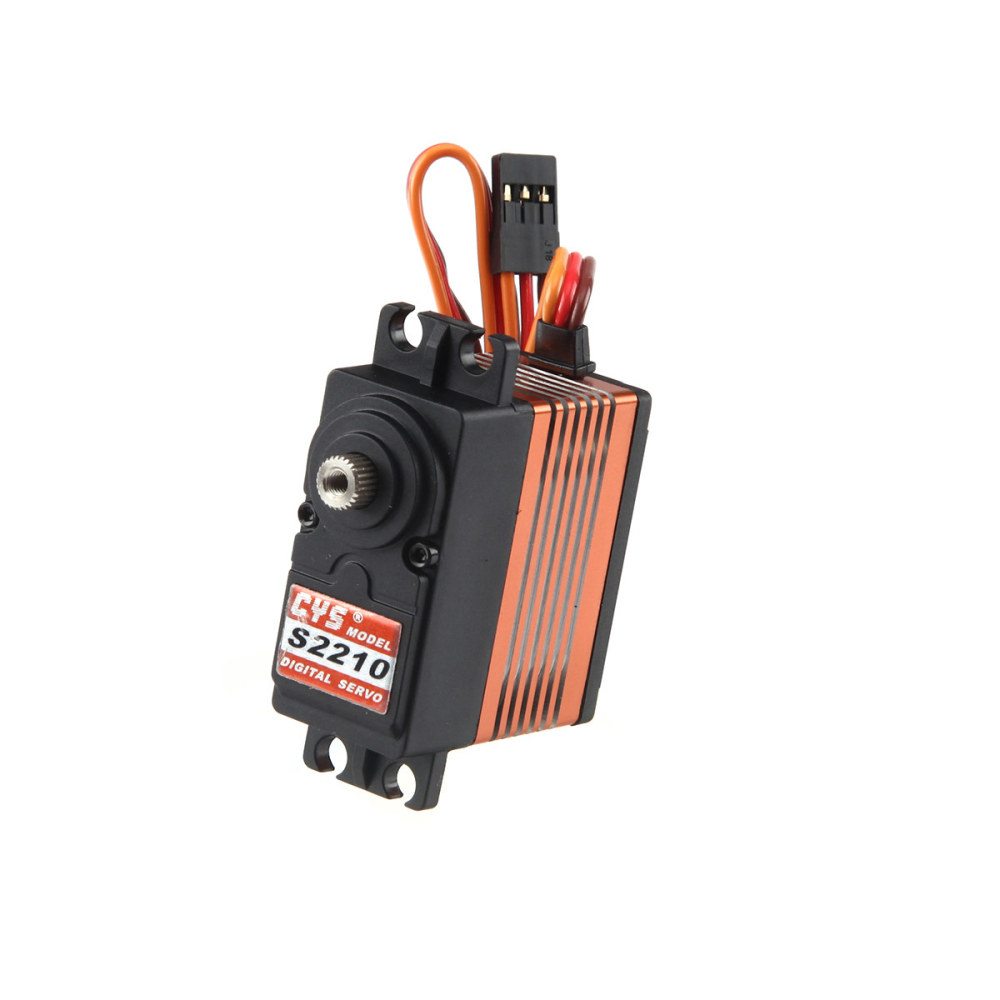

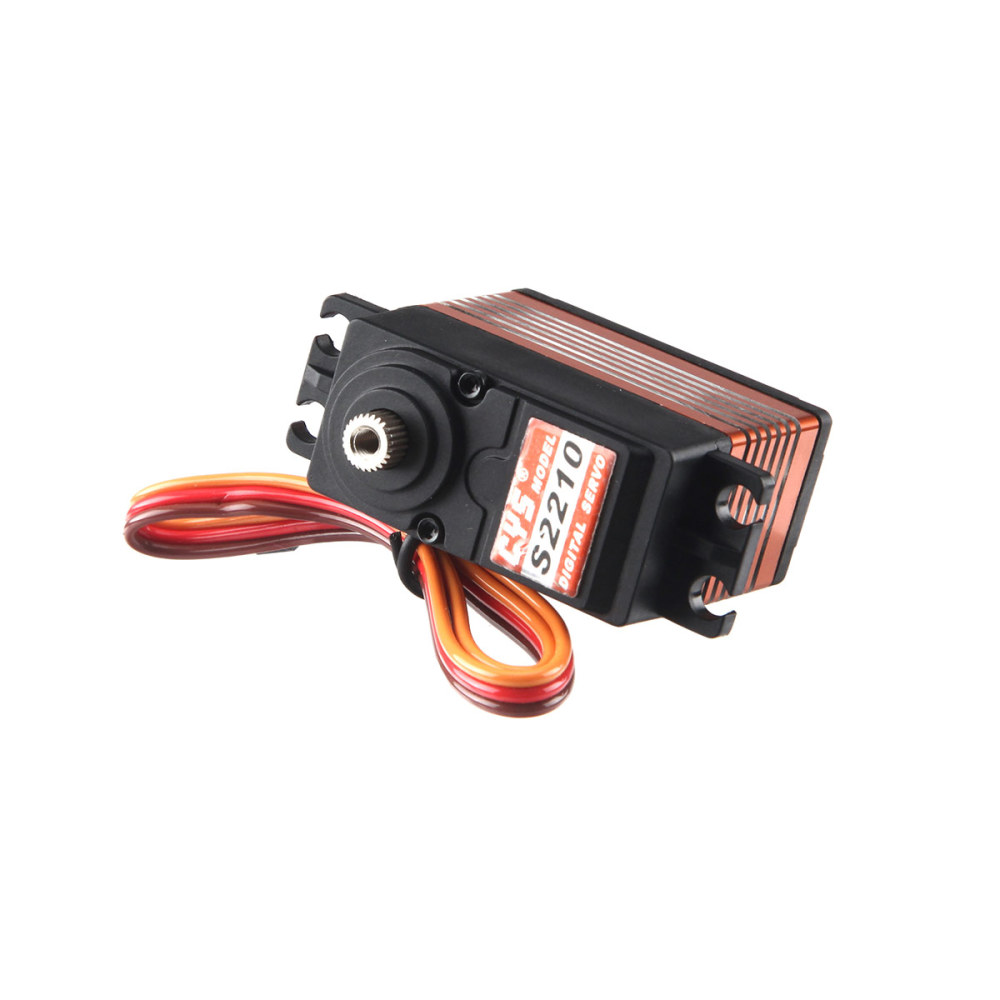

CYS-S2210 Digital Titanium Coreless Servo For RC Airplane Boat Cars 10kg.cm

Specification

Dimensions :40.1x20.1x38.8mm

Operating Voltage:  DC6.0-7.4V

Dead band: 2μsec

Operating Speed (6.0V): 0.12sec/60 degrees

Operating Speed (7.4V): 0.10sec/60 degrees

Stall Torque (6.0V): 9kg.cm (125.01oz/in)

Stall Torque (7.4V):  10 kg.cm (138.90 oz/in)

Running Current(6.0V): 100mA

Running Current(7.4V): 150mA

Stall Current(6.0V): 2.3A

Stall Current(7.4V): 2.5A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 64 g (2.26oz)
