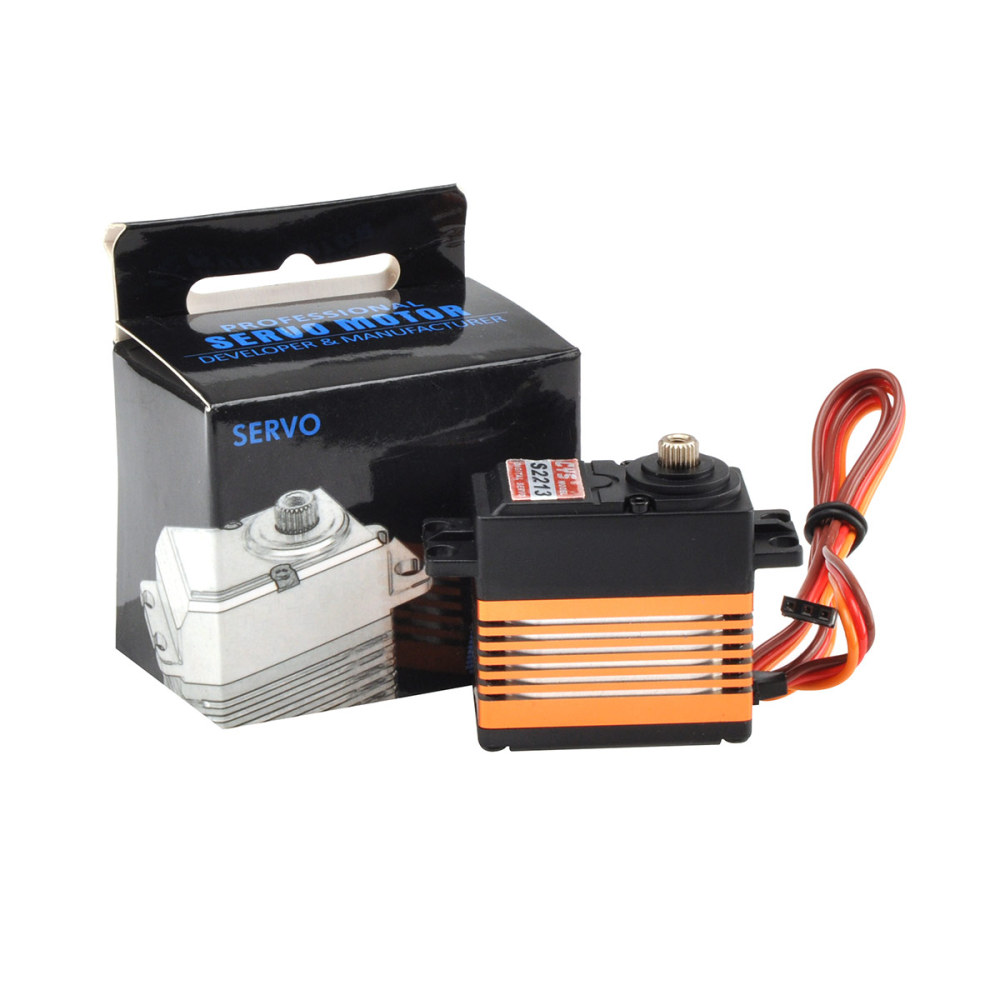

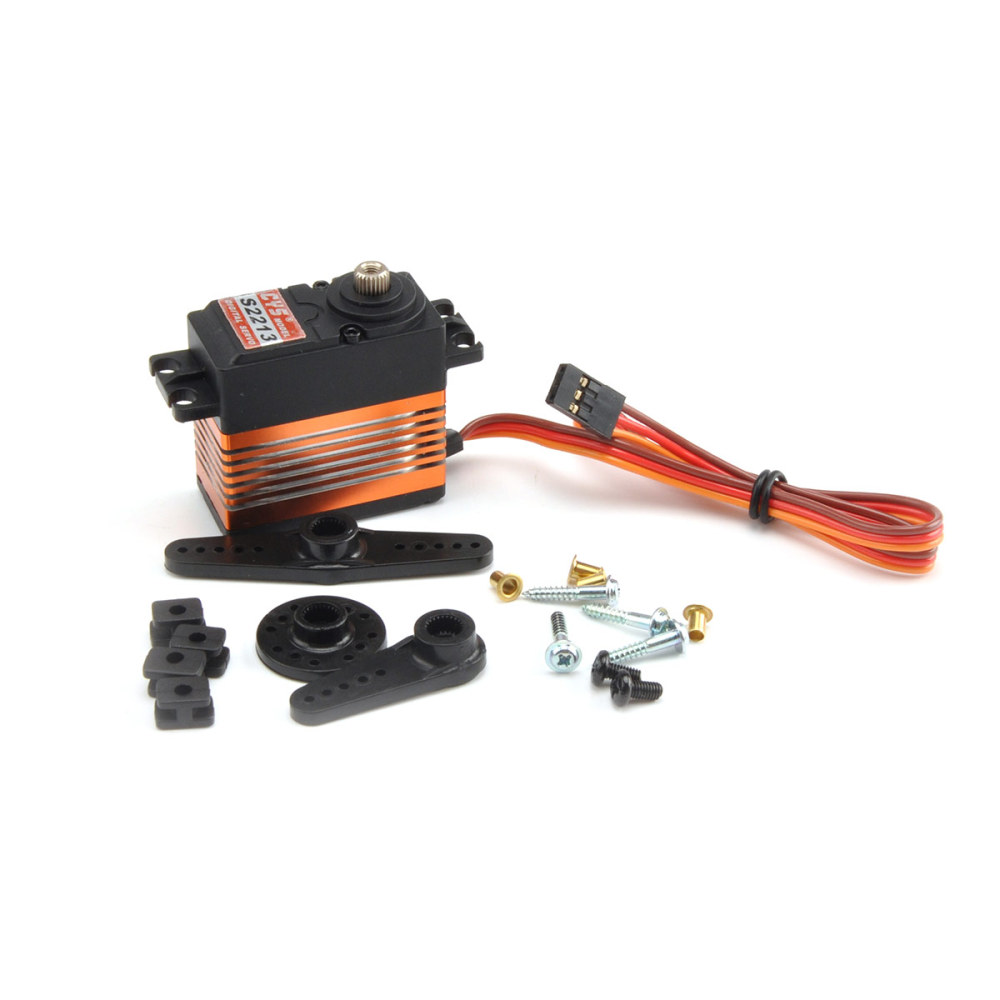

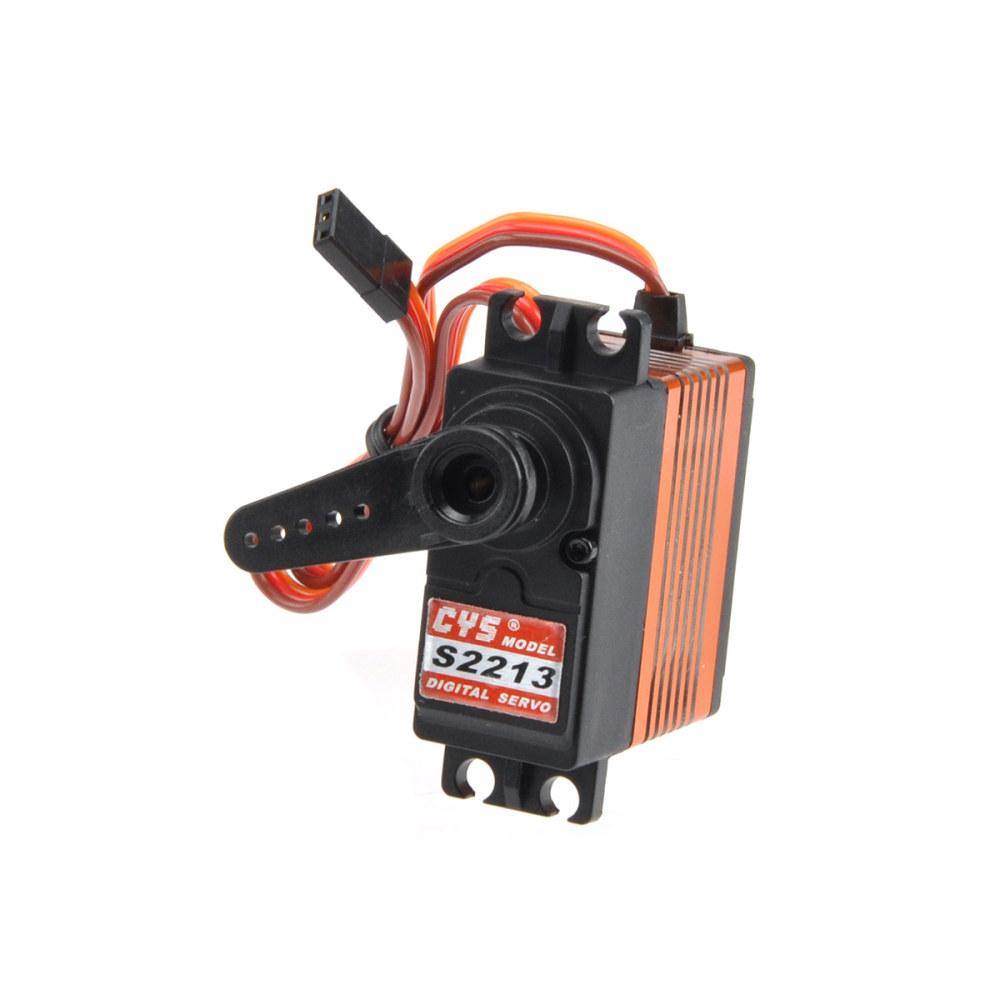

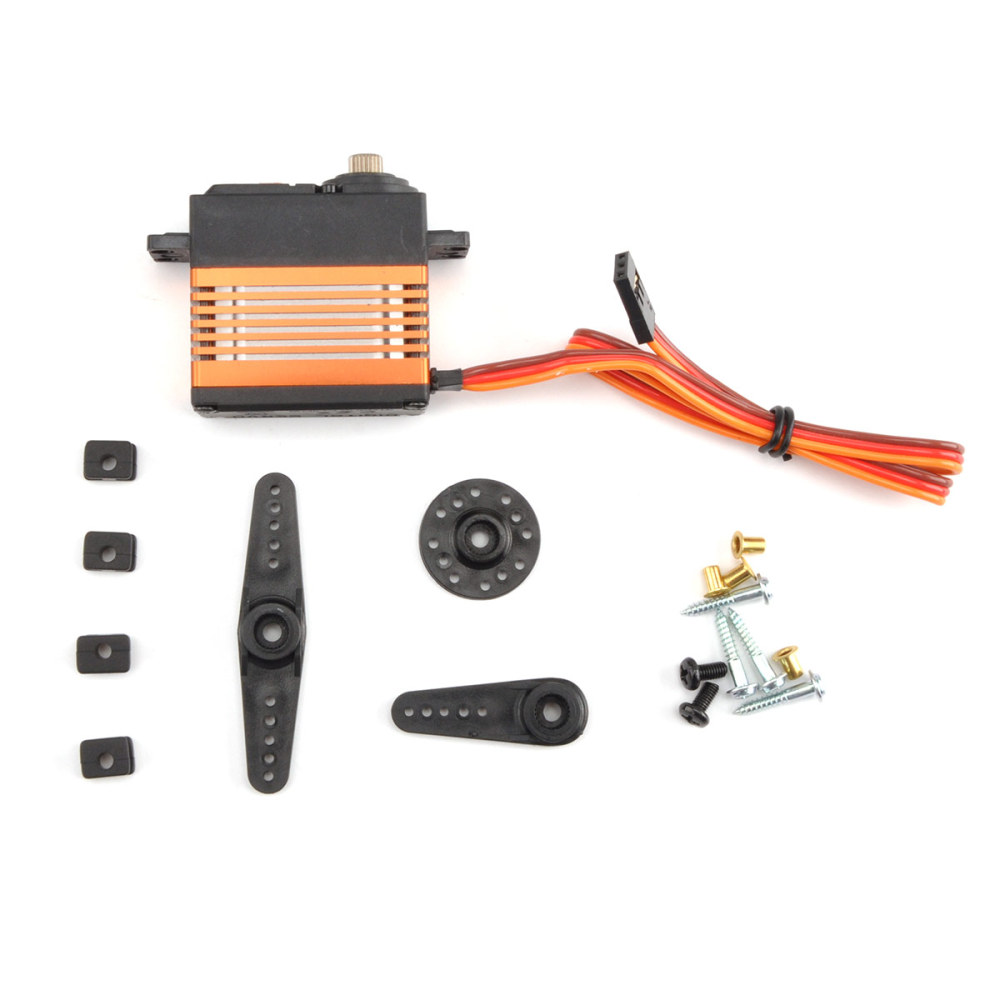

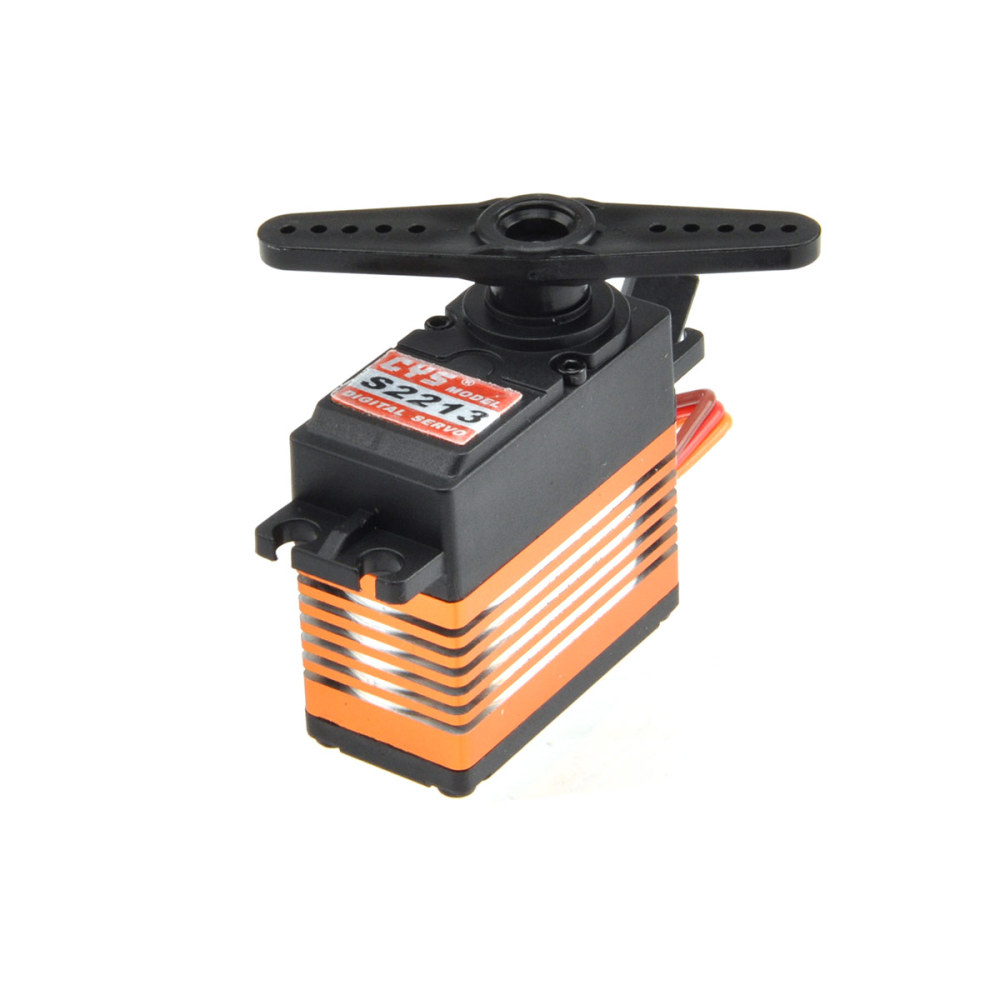

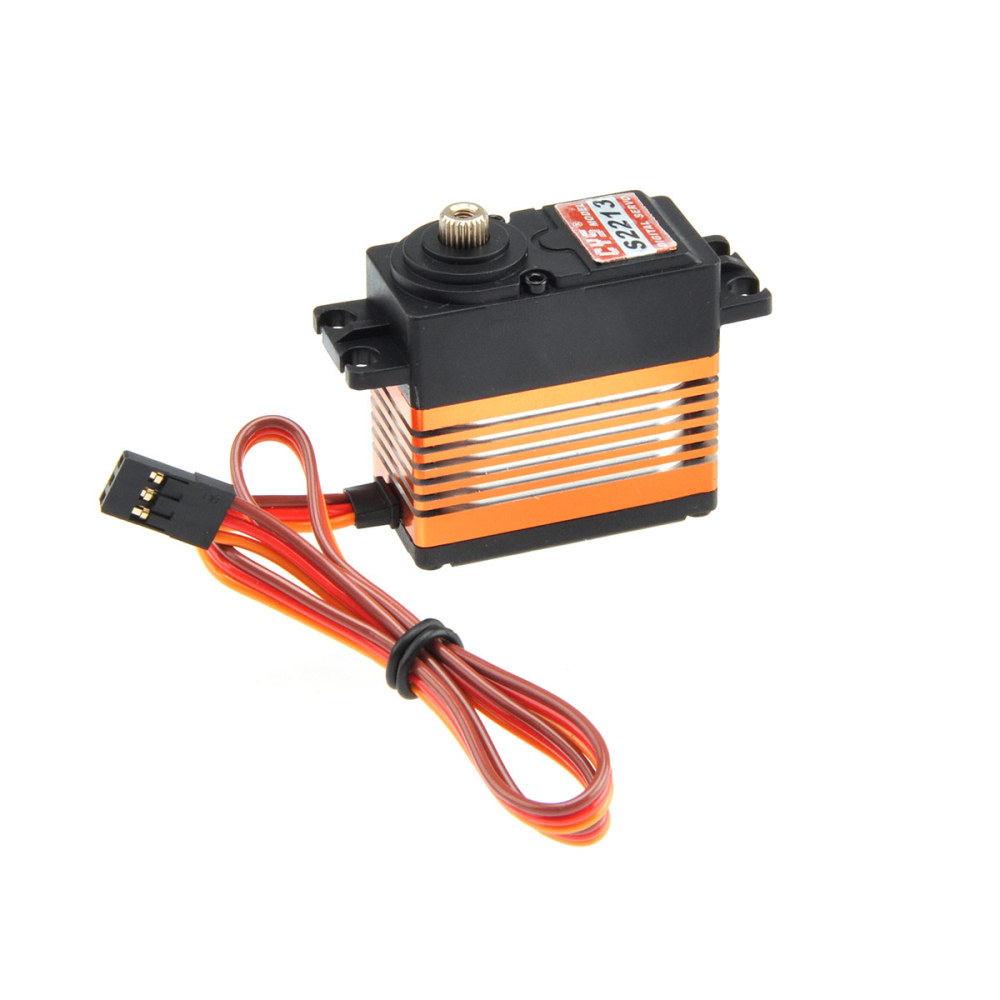

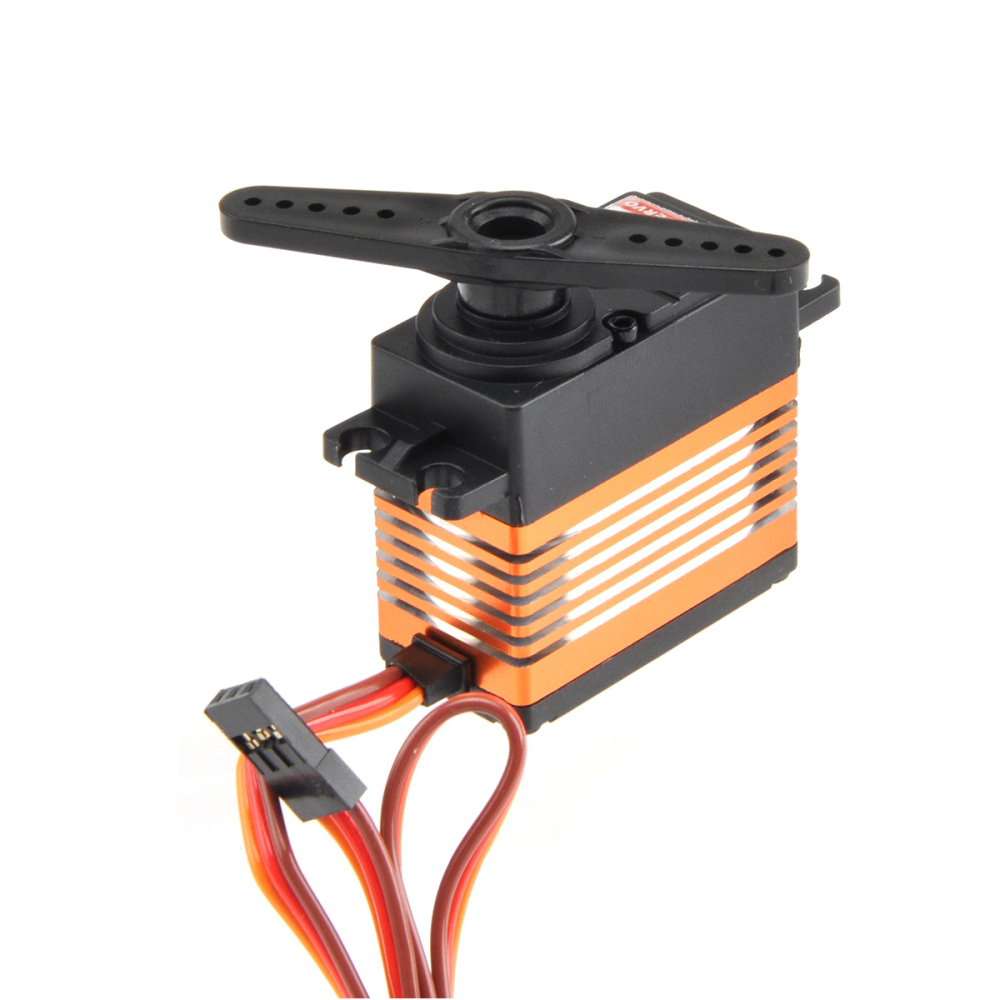

CYS-S2213 Digital Titanium Coreless Servo For RC Airplane Boat Cars 13Kg.com

Specification

Dimensions :40x20.1x38.8mm

Operating Voltage:  DC6.0-7.4V

Dead band: 2μsec

Operating Speed (6.0V): 0.14sec/60 degrees

Operating Speed (7.4V): 0.12sec/60 degrees

Stall Torque (6.0V): 14 kg.cm (194.46oz/in)

Stall Torque (7.4V):  15 kg.cm (208.35 oz/in)

Running Current(6.0V): 100mA

Running Current(7.4V): 150mA

Stall Current(6.0V): 2.3A

Stall Current(7.4V): 2.5A

Idle Current(6.0V): 20mA

Idle Current(7.4V): 20mA

Weight: 74 g (2.61oz)
