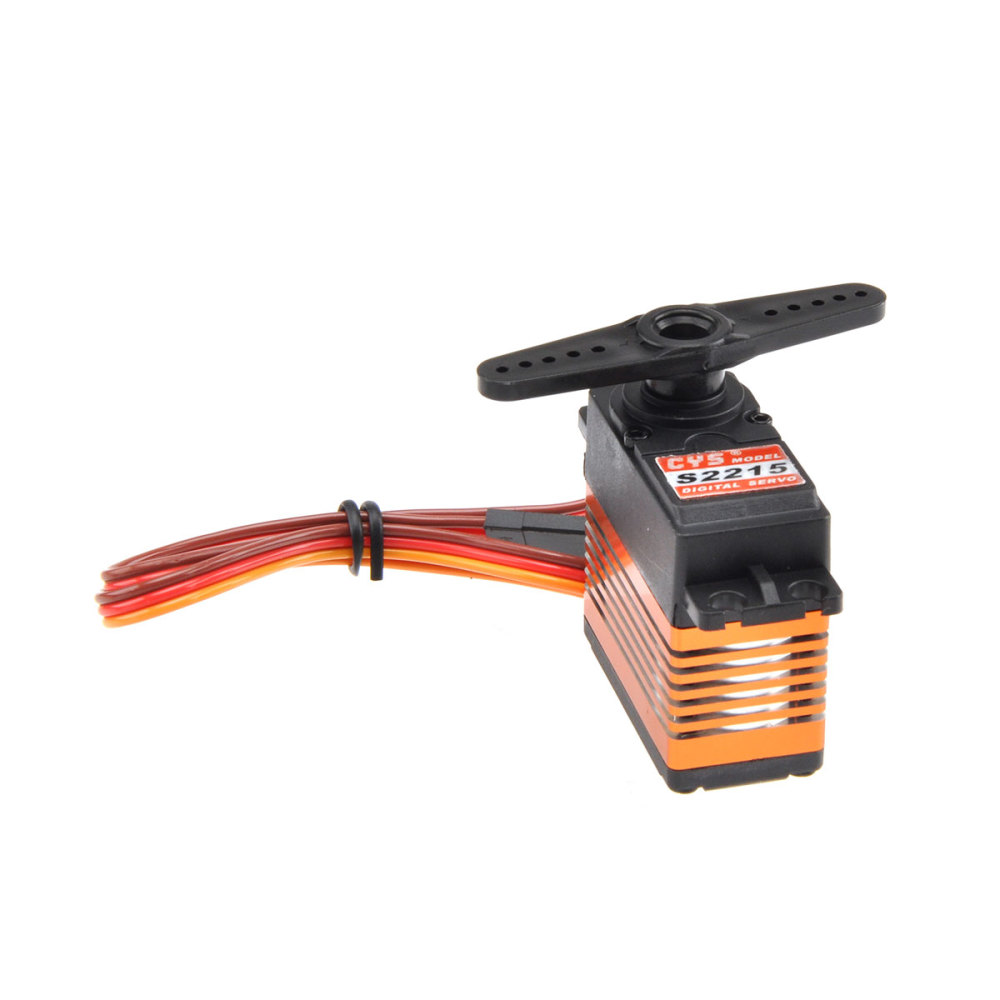

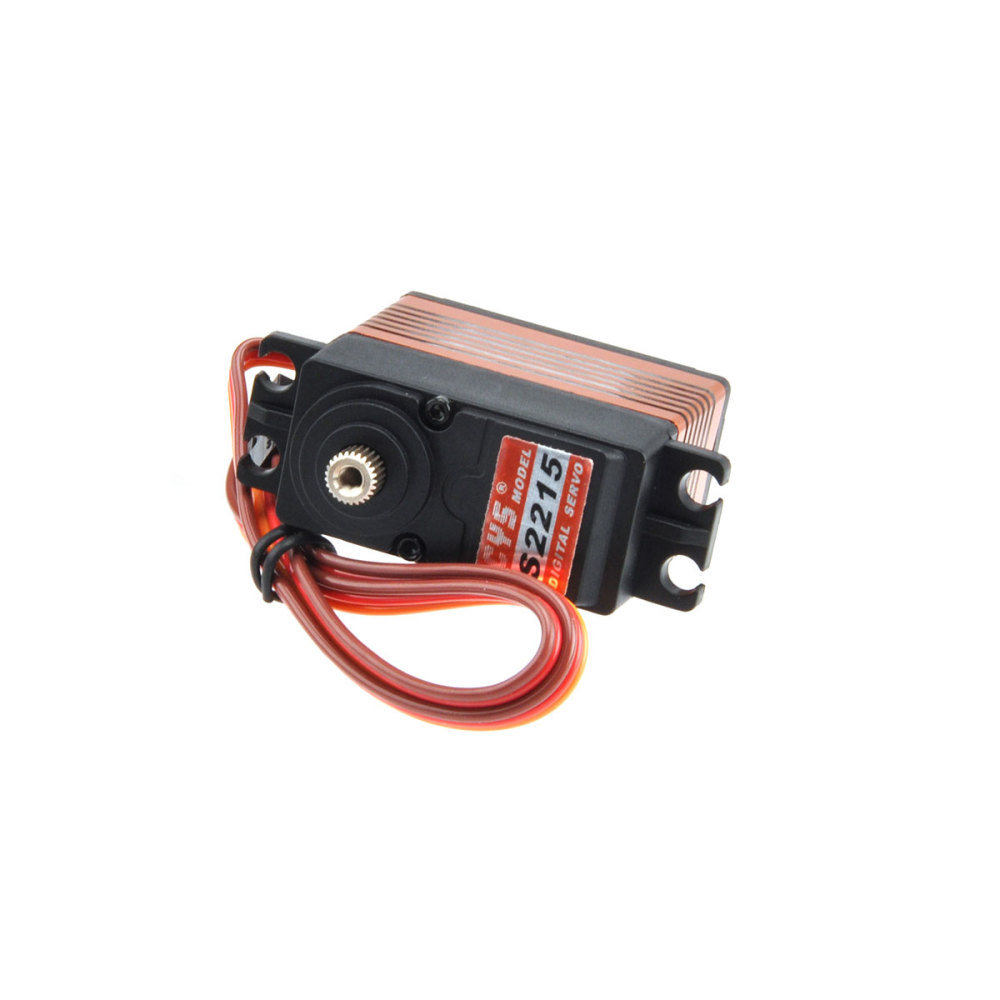

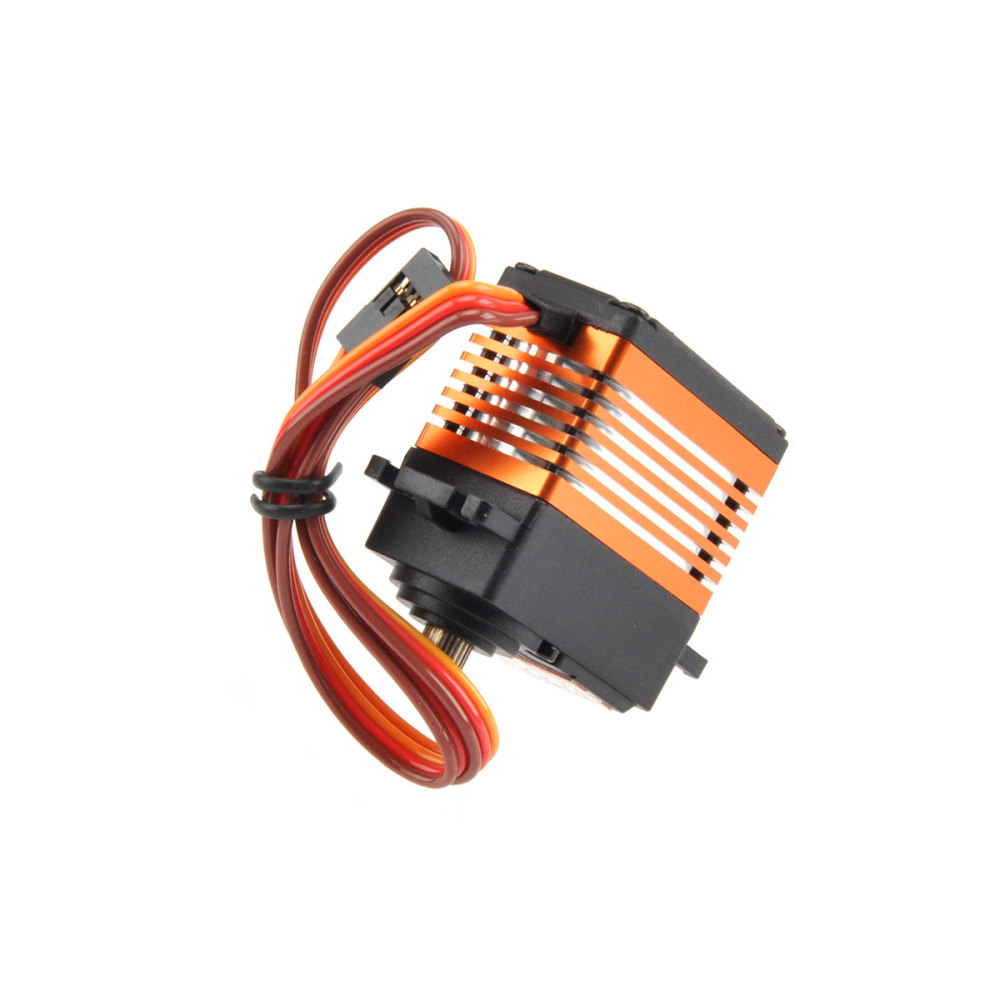

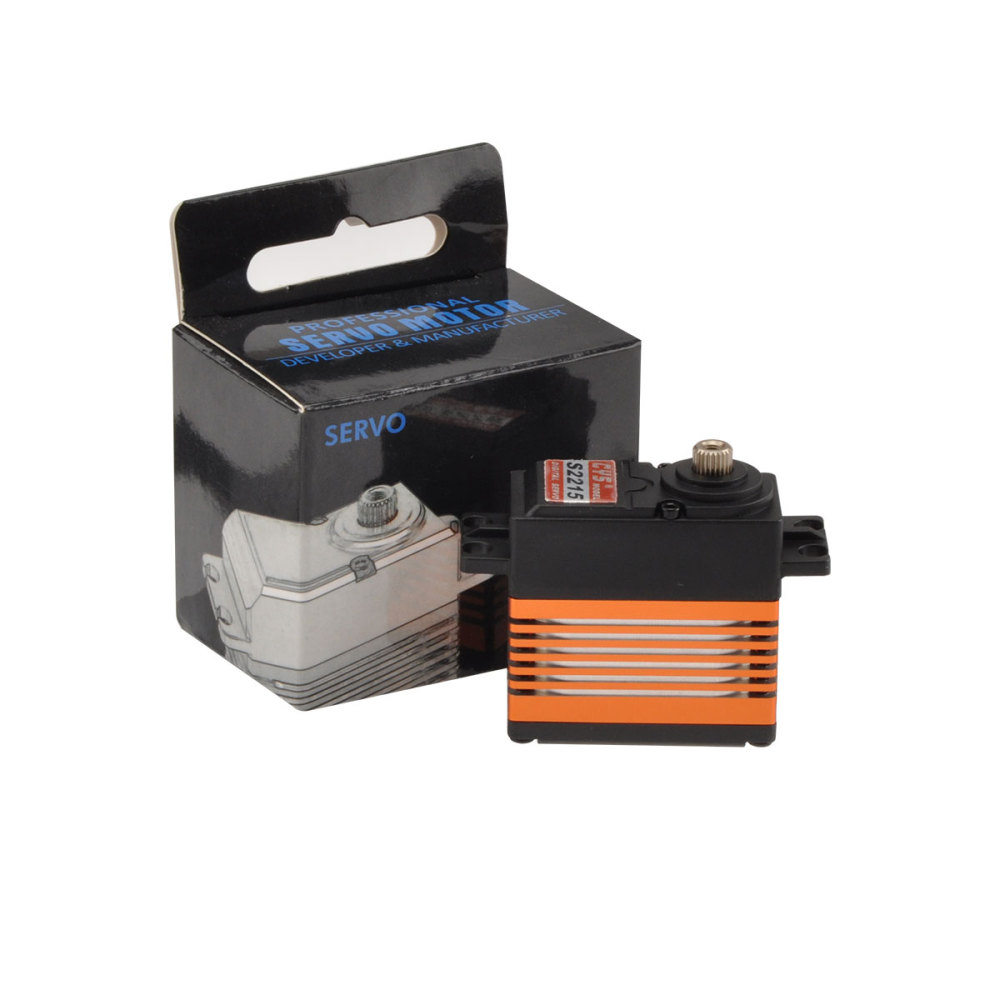

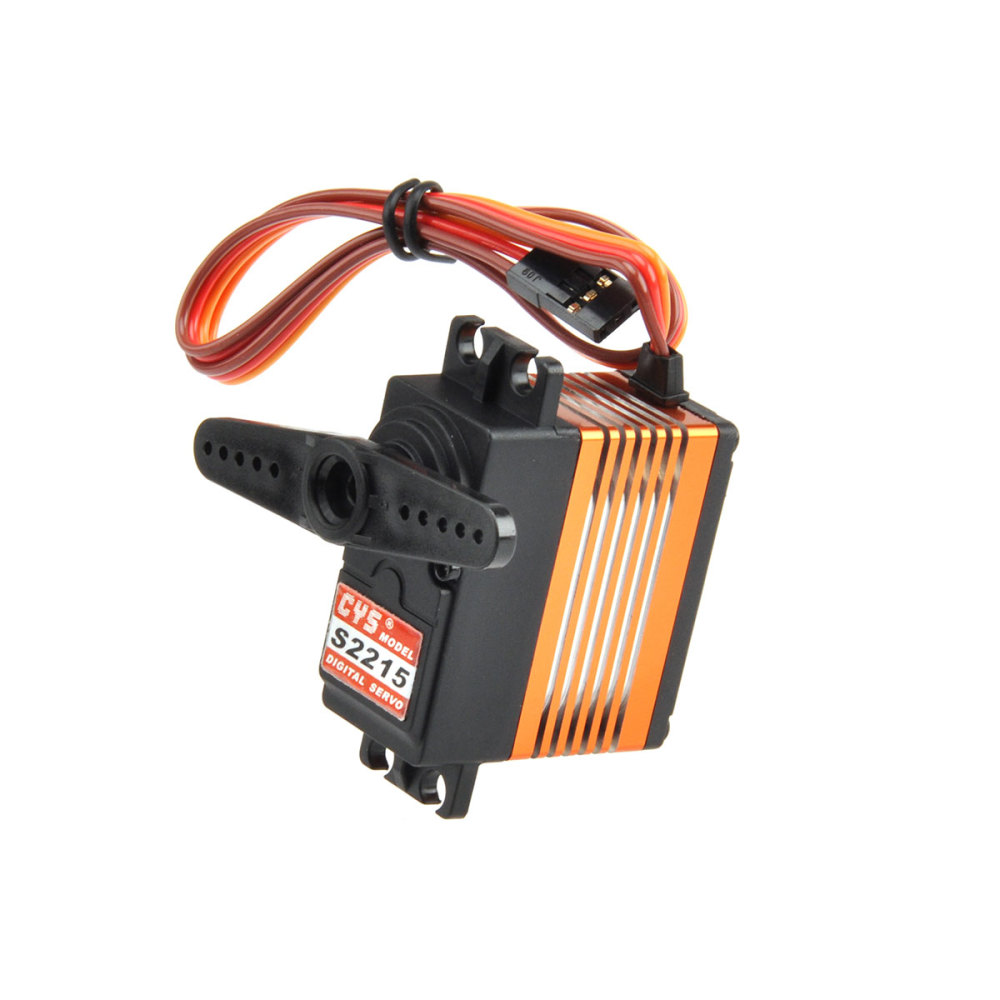

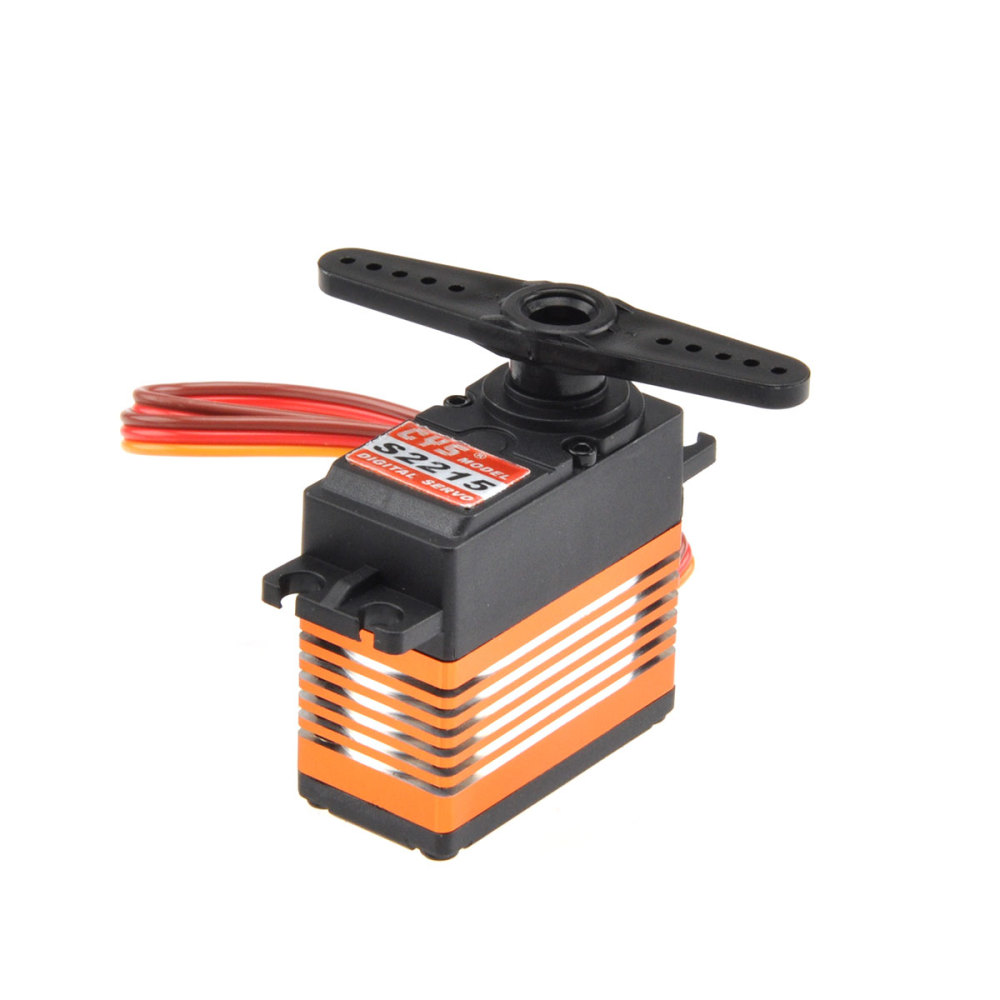

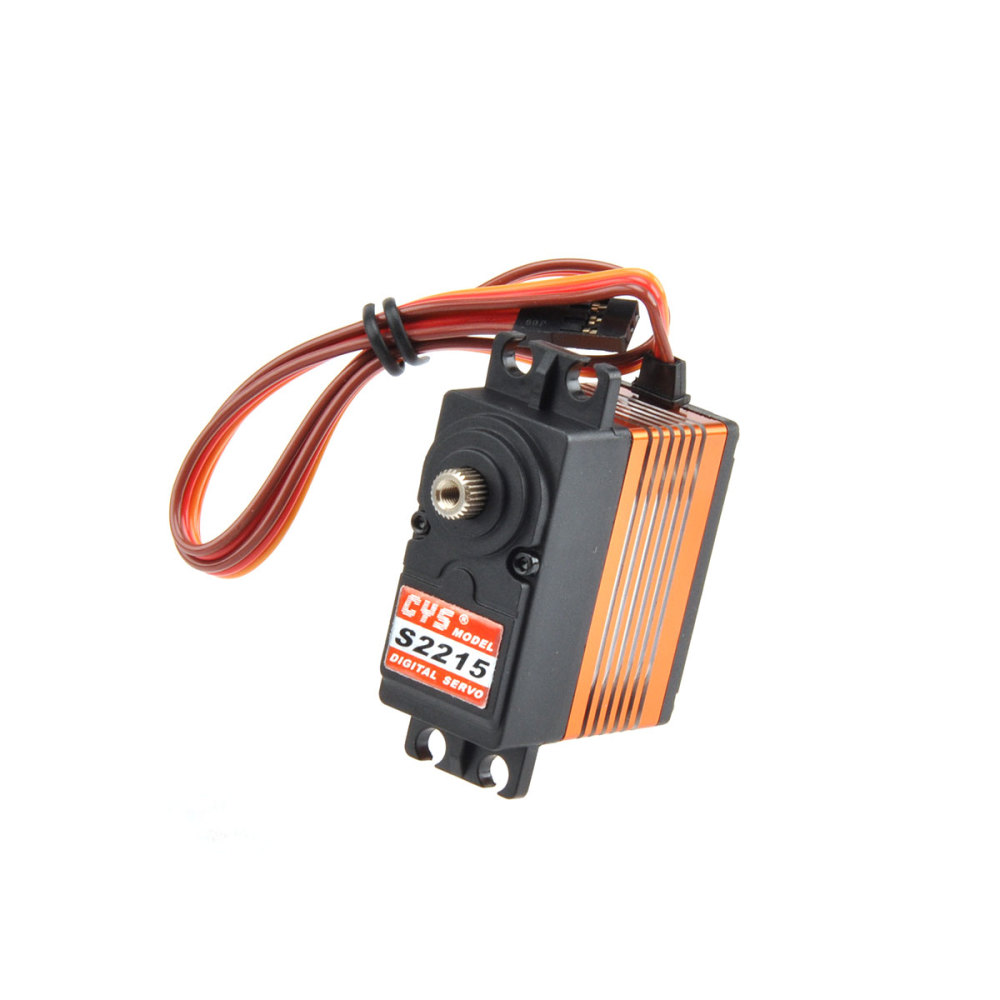

CYS-S2215 Digital Titanium Gear Servo 1:8 1:10 Crawler RC Car RC aiplane Boat
SKU: CYS-S2215
(2 Reviews)
7 Sold
Specification:
Dimensions :40x20.1x38.8mm
Operating Voltage: DC6.0-7.4V
Dead band: 2μsec
Operating Speed (6.0V): 0.14sec/60 degrees
Operating Speed (7.4V): 0.12sec/60 degrees
Stall Torque (6.0V): 14 kg.cm (194.46oz/in)
Stall Torque (7.4V): 15 kg.cm (208.35 oz/in)
Running Current(6.0V): 100mA
Running Current(7.4V): 150mA
Stall Current(6.0V): 2.3A
Stall Current(7.4V): 2.5A
Idle Current(6.0V): 20mA
Idle Current(7.4V): 20mA
Weight: 74 g (2.61oz)
