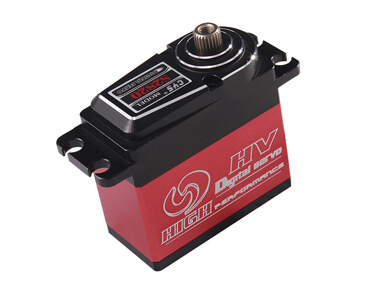

CYS-S2820 20Kg standard size servo with coreless motor

SKU: CYS-S2820
Size : 40*20*41.4MM
Torque : 18Kg.cm ~ 20Kg.cm
Speed : 0.16sec ~ 0.14sec/60 degree
0.0 (0 Reviews)
0 Sold
$0.00 $56.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • CYS-S2820 20Kg standard size servo  with coreless motor
  • CYS-S2820 20Kg standard size servo  with coreless motor
  • Description
Type Digital
Weight 82g±1g
Size 40*20*41.4mm
Control System (+)Pulse Width Control 1500usec Neutral
Operating Voltage 6.0~7.4Volts
Operating Temperature Range (-)10 to +50 degree C
Operating Speed (6.0V) 0.16sec/60° at no load
Operating Speed (7.4V) 0.14sec/60° at no load
Stall Torque (6.0V) 18kg.cm
Stall Torque (7.4V) 20kg.cm
Operating Angle 45deg.one side pulse traveling 500 usec
360 Modifiable No
Direction Anticlockwise/Pulse Traveling 1000~2000usec
Current Drain (6.0V) 20mA/idle and 120mA no load operating
Current Drain (7.4V) 20mA/idle and 150mA no load operating
Stall Current 2.8A/3.0A
Dead Band Width 2usec
Motor Type Coreless motor
Bearing Type ball bearing
Horn gear spline 25T
Gear Type Titanize
Connector Wire Length 300mm±5mm
Wire info Brown/Black = Negative
Red = Positive
Orange/White = Signal
