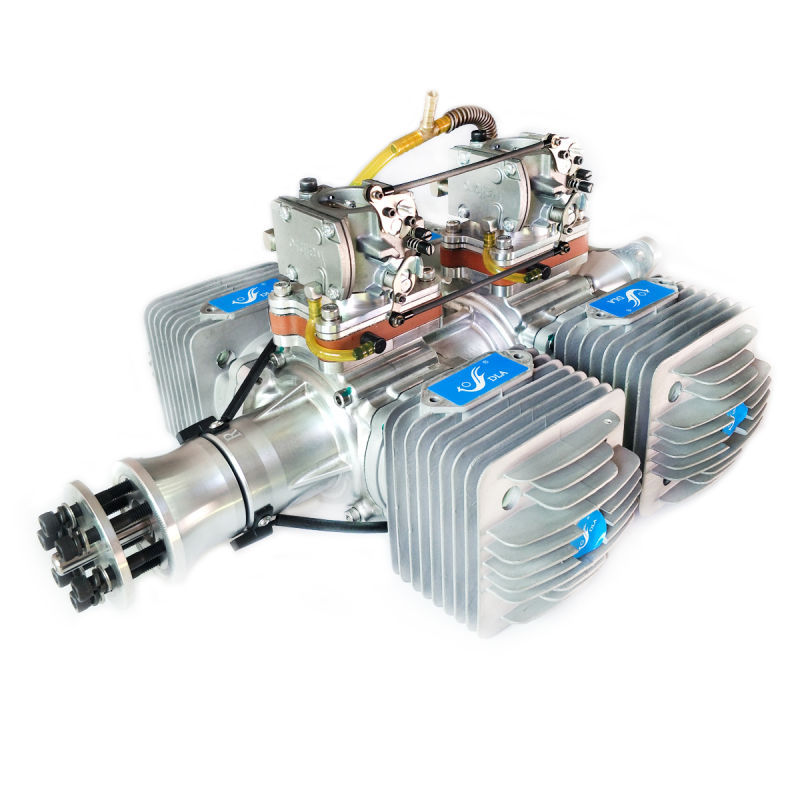

DLA360 ENGINE for UAV

SKU: DLA360
0.0 (0 Reviews)
0 Sold
$3,599.00 $3,399.00
Received successfully
Coupon Code
CONTINUE SHOPPING
    Please select the information you want X
  • Ships From:
    China
Quantity
-
+
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • DLA360 ENGINE for UAV
  • Description
Parameters
This engine is mainly used for UAV with fixed-wing, Helicopter or UAV in complex environment with take-off weights (including Gasoline) not more than 50 KGS. Its crankcase, crankshaft, central screws are all made of domestic high-performance materials by CNC processing method. With beautiful appearance, light-weight, high-precision, drop resistance, fatigue resistance, good stability, strong power performance, we get good reputations from home and abroad. Our company will be grateful for your valuable guidance and advice!!


Detail

Exhaust amount

360cc

Output

38HP

Cylinder Bore/ Stroke

53MM/41MM

speed range

1200-5800 RPM

Pulling force

90KG/1000 Meter altitude

Cylinder arrangement

four  boxer

Fuel

Gasoline + 2T synthetic oil

Lubrication Ratio

25:1~30: 1(trial run)
40: 1~50:1(normal flying)   92# 93# gasoline  2T synthetic oil

Compression Ratio

8.6:1

Propeller Recommended

36*10,38*8,34*8,34*12, 36*10,36*12 recommended

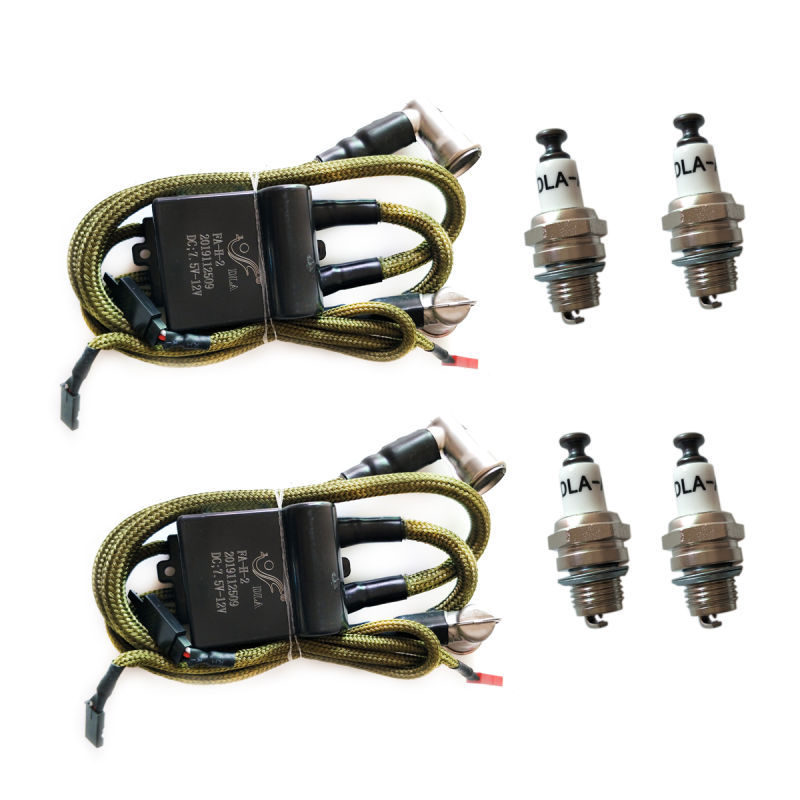

Spark Plug

DLA CM6,Iridium

Voltage

6.6v-8.4v,  2 LiPo batteries  recommended.

Weight

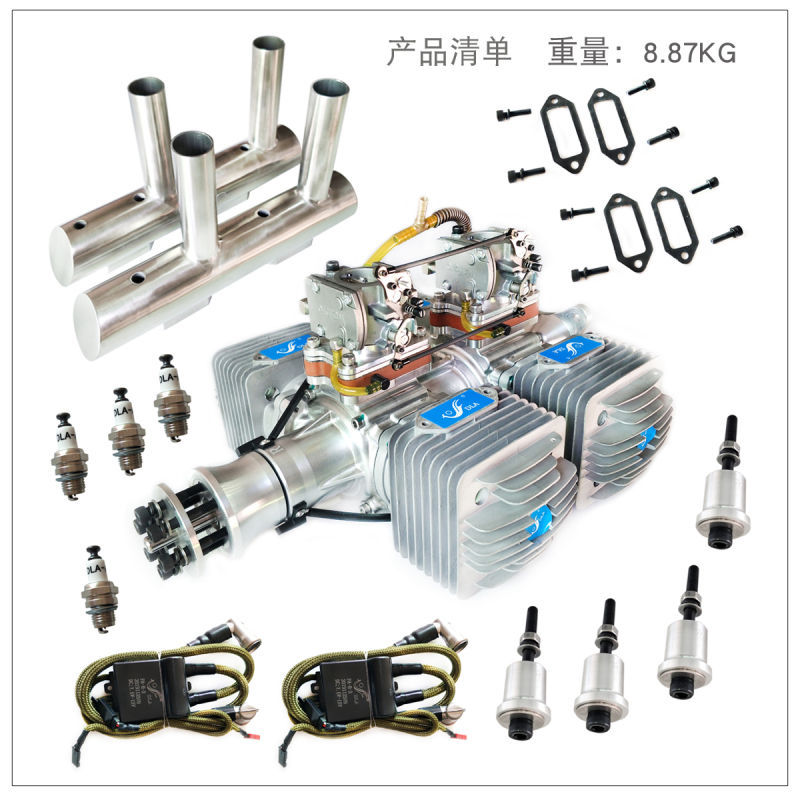

Main engine: 7280g        Exhaust pipe: 240g    Ignition: 180g*2    standoffs: 22*4g

Customization

According to Customer’s  need and specifications

Others
