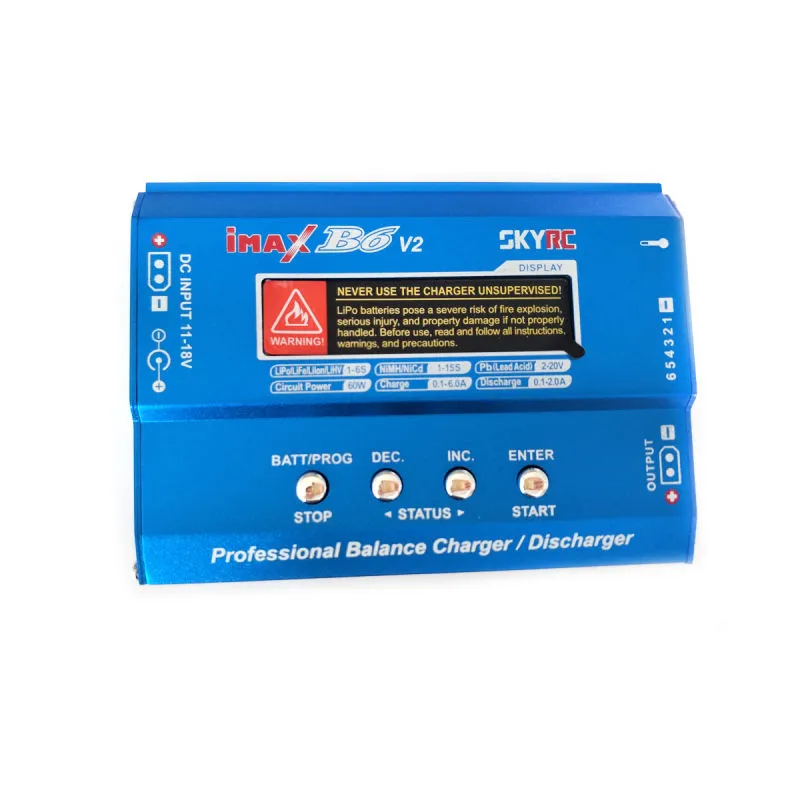

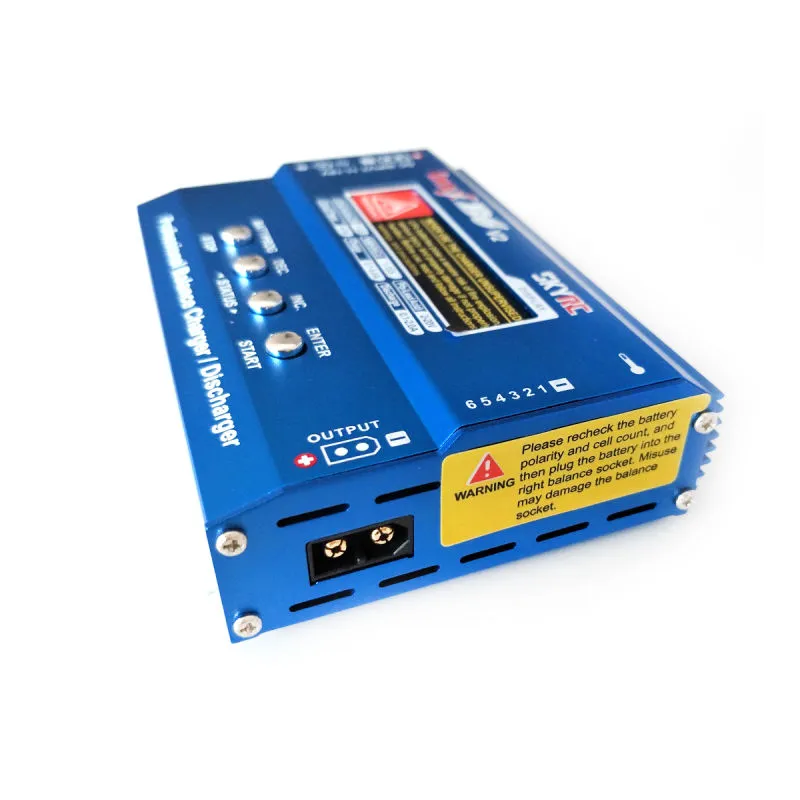

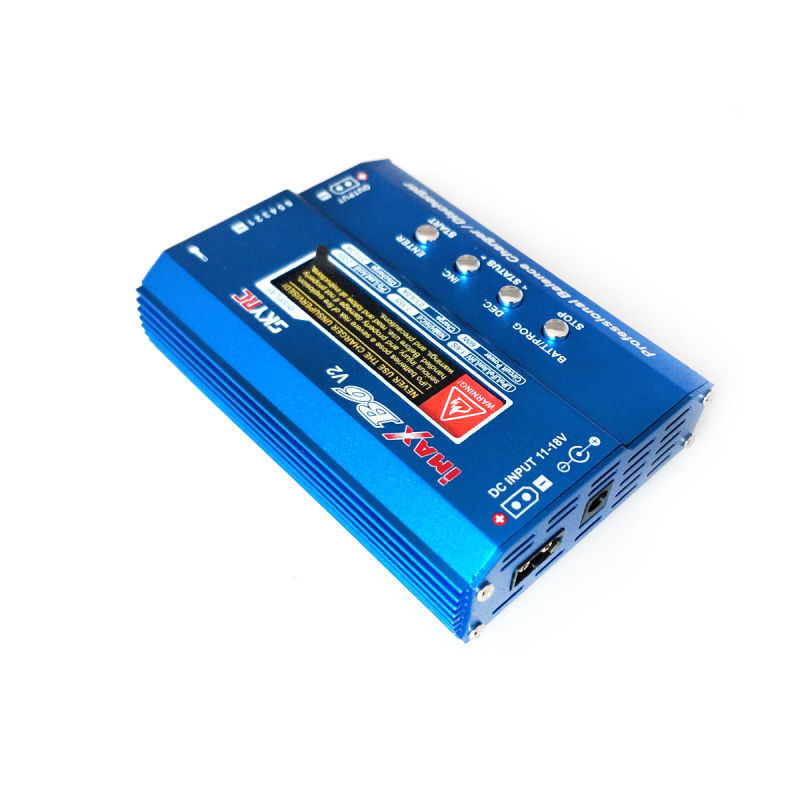

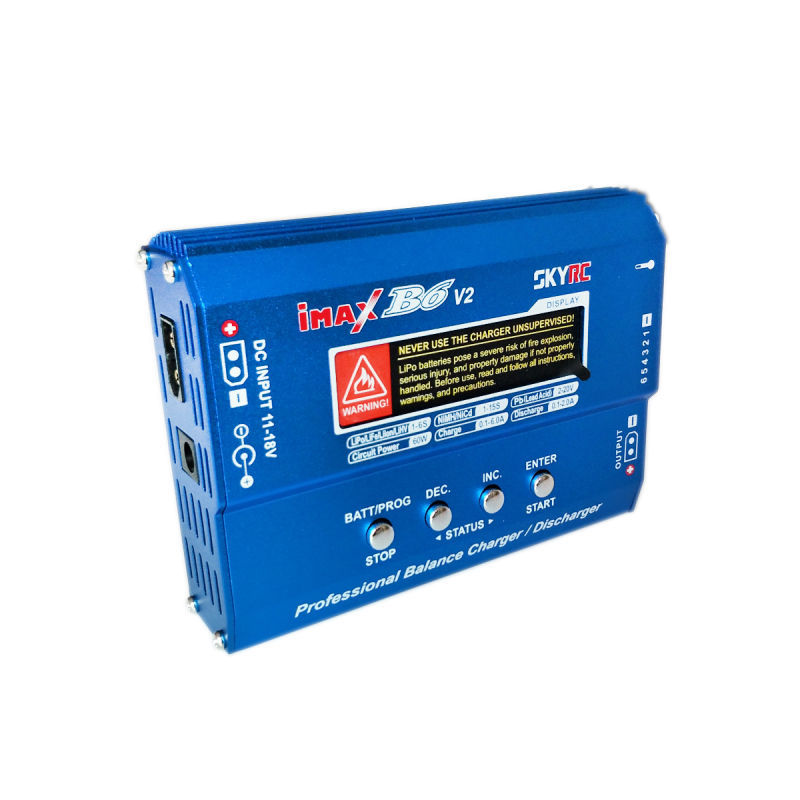

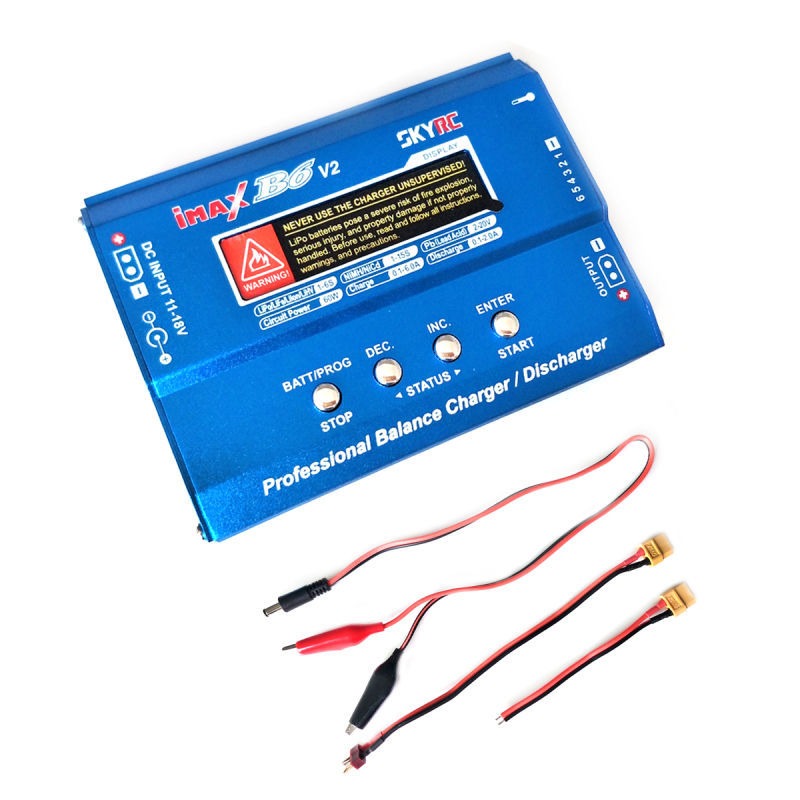

SkyRC B6 is a DC input high-performance, micro-processor controlled charge/discharge/DC/DC converter with battery management suitable for all mainstream battery types(LiPo / LiFe / Li-Ion / LiHV / NiMH / NiCd / Pb). The charger delivers dedicated 60W integrated power and charge current can up to 6A . Additionally, it supports DJI Mavic/Inspire Battery with maximum 4A charge power.
Specifications
Size and Weight
Case Material: Aluminium

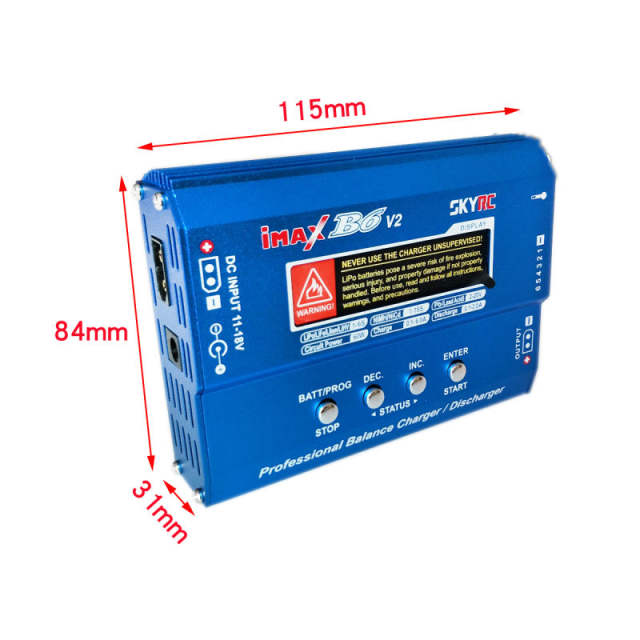

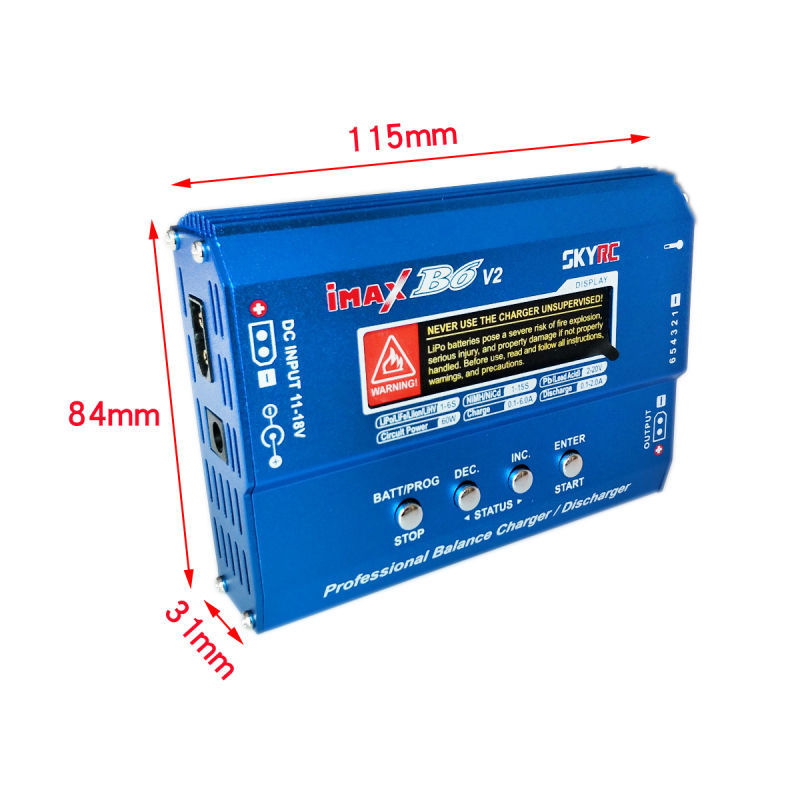

Case Size: 115x84x31mm
Weight: 238g
Display
Display Type: LCDdisplay backlight: Blue
Power

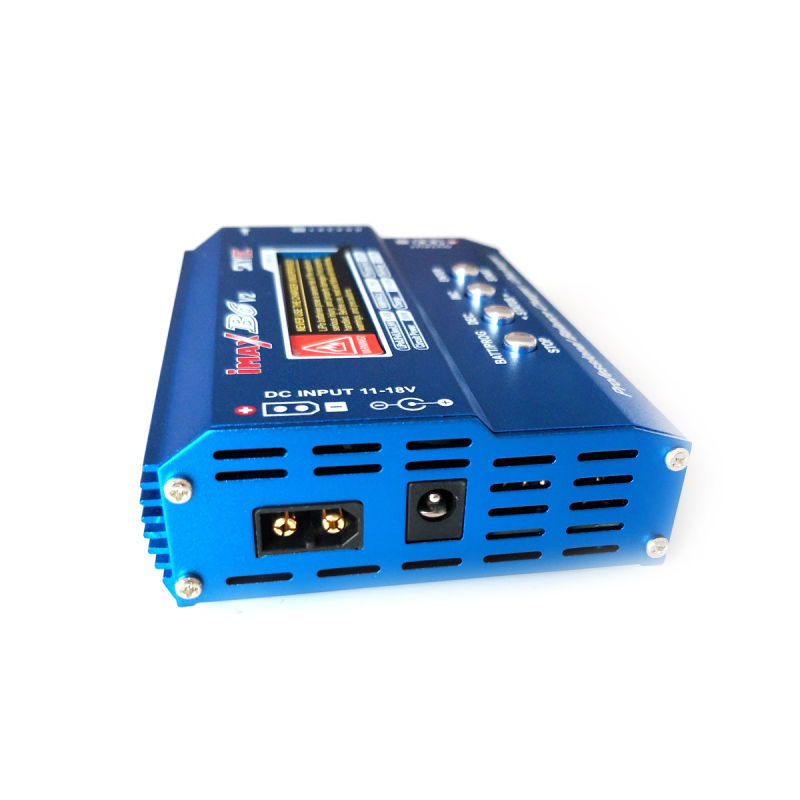

DC Input:11-18V
Charge Wattage: 60W
Discharge Wattage: 5W
DC Output Wattage: 60W
Battery
Battery Types/ Cells:
LiPo/LiHV/LiFe/ Li-Ion: 1-6 cells
NiMH/NiCd: 1-15 cells
Pb: 2-20V
DJI Mavic: 3 cells(LiHV)
DJI Inspire: 4 cells(LiHV)
Battery Capacity Range:
NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb/DJI: 100-50000mAh
Charge Current:
NiMH/NiCd/LiPo/LiHV/LiFe/Li-Ion/Pb: 0.1-6A
DJI Mavic/ Inspire: Max 4A
Discharge Current: 0.1-2A
Balance Cells: 2-6 cells
Balance Current: 300mA/cell
Safety Timer: 1-120minutes off
Memory: 10 different charge/ discharge profiles
